Description

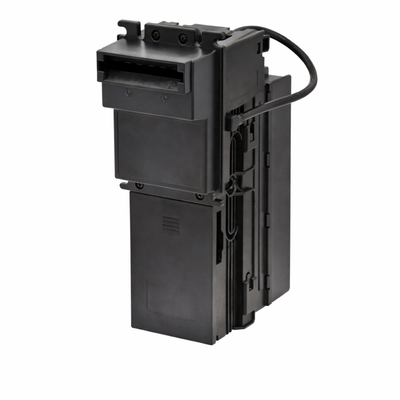

The ICT V7P-3MA32CA31 Bill Validator (V7P Series) is designed for reliable and high-performance bill validation in vending and amusement machines, offering stable operation and flexible system integration.
Operating on 34V DC power, this validator supports the MDB interface, making it ideal for modern vending systems. It delivers a high acceptance rate of 96% or greater and processes transactions in approximately 3 seconds per bill, ensuring smooth and efficient performance.
This model is configured for Canadian Dollar (CAD) currency and supports multiple denominations, making it suitable for vending and amusement applications in Canadian markets.
Equipped with a 300-bill stacker capacity, it is ideal for medium-traffic environments. The standard bezel design (73mm) allows easy installation and compatibility with a wide range of machines.
Designed for indoor use, the V7P validator provides durability, auto-calibration, and dependable long-term performance.
Key Features
- High acceptance rate of 96% or higher
- Fast transaction speed (~3 seconds per bill)
- Standard bezel design (73mm)
- Configured for Canadian Dollar (CAD)
- Accepts Canadian Dollar (CAD): C$5, C$10, C$20
- Four-way bill insertion
- Auto-calibration for improved accuracy
- Bezel Type: Standard Bezel (73mm)
- Bill Width Accepted: 62–72 mm
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -30°C to 70°C
- Humidity: 30%–95% RH (non-condensing)
- Installation: Indoor
Technical Specifications
| Brand | ICT |
| Voltage | 34v |
| Supported Protocols | MDB |
| Stacker Capacity | 300 Bills |
| Bezel Type | Standard |
| Denomination Acceptance | CAD: $5-$20 |
| Condition | New |
