ICT WEL-R0001 Cable is a 12V DC interface cable designed for Pulse and RS232 systems, providing reliable power and signal communication for ICT bill acceptors. It is ideal for vending, kiosk, and amusement machine applications requiring stable connectivity and control signals.
WEL-R0001 Interface Specifications
| Interface |
Used Voltage |
Usage |
| Pulse |
12V DC |
Power & Data Communication |
| RS232 |
12V DC |
Power |
Connector Types
- 10-Pin Connector
- AMP 9-Pin Connector

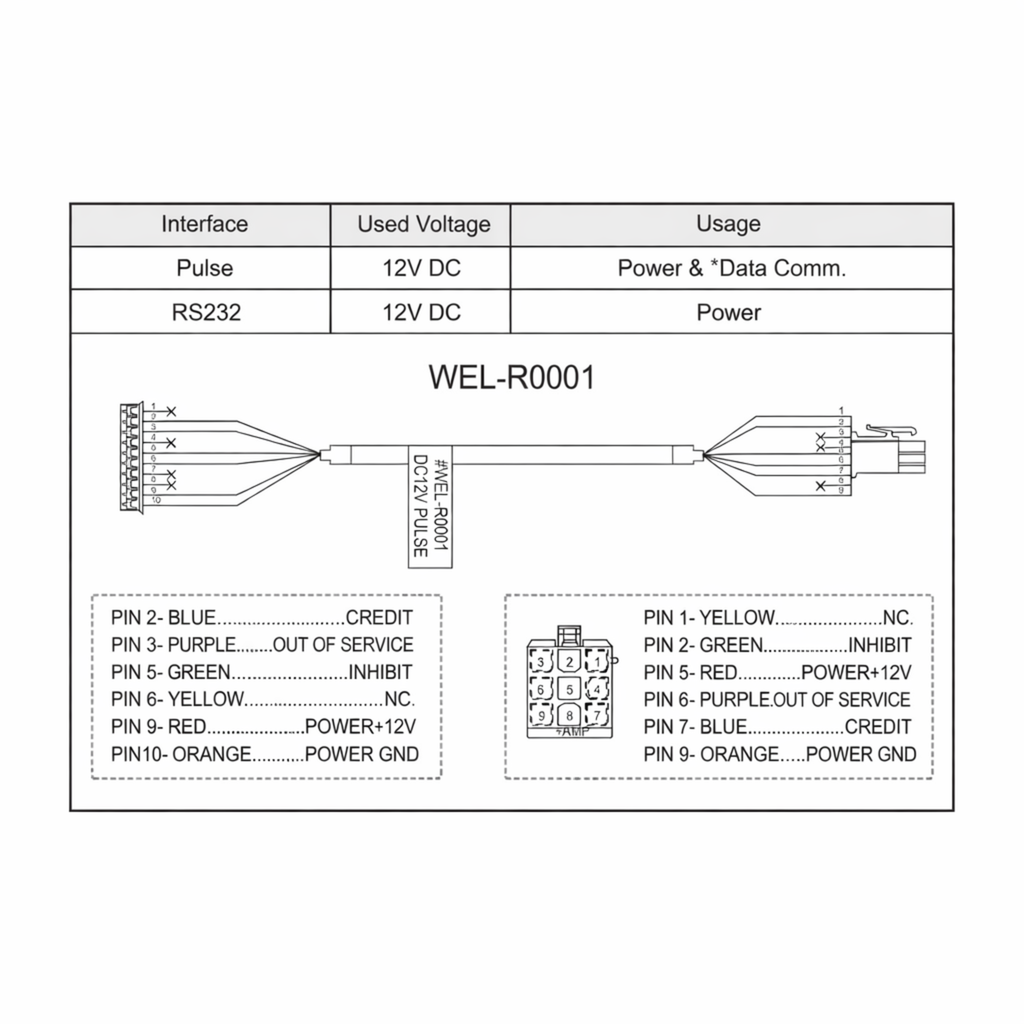

10-Pin Side Pin Assignments
| Pin |
Color |
Function |
| Pin 2 |
Blue |
Credit |
| Pin 3 |
Purple |
Out of Service |
| Pin 5 |
Green |
Inhibit |
| Pin 6 |
Yellow |
N.C. |
| Pin 9 |
Red |
Power +12V |
| Pin 10 |
Orange |
Power GND |
AMP 9-Pin Connector Assignments
| Pin |
Color |
Function |
| Pin 1 |
Yellow |
N.C. |
| Pin 2 |
Green |
Inhibit |
| Pin 5 |
Red |
Power +12V |
| Pin 6 |
Purple |
Out of Service |
| Pin 7 |
Blue |
Credit |
| Pin 9 |
Orange |
Power GND |
Key Features
- Genuine ICT WEL-R0001 cable
- Supports Pulse and RS232 interfaces
- 12V DC power and signal communication
- Reliable connection for bill acceptor systems
- Ideal for vending machines, kiosks, and amusement equipment
