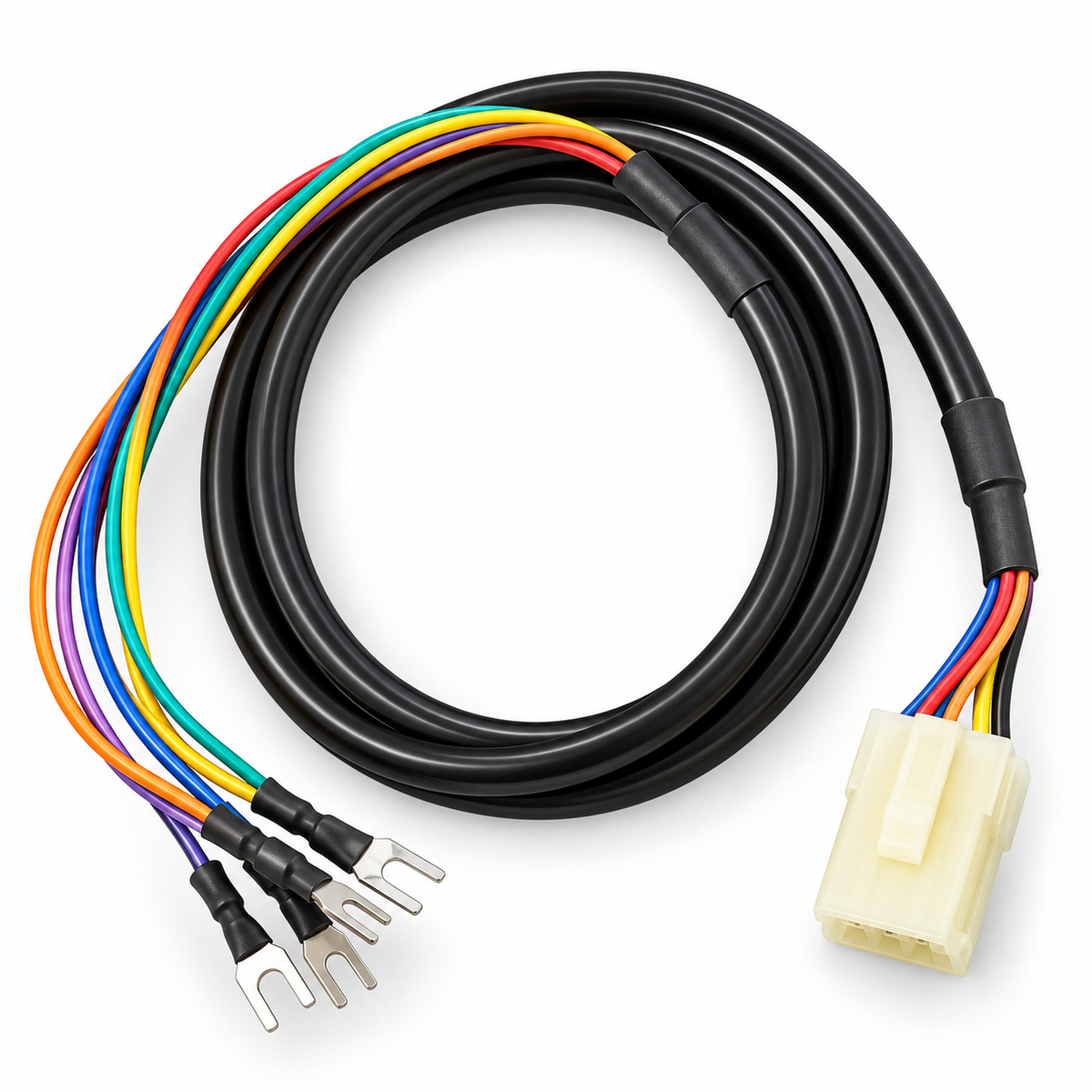

ICT WEL-R0002 Cable is a 12V DC extension cable designed for Pulse and RS232 systems. It is specifically used as an extension wire for the WEL-R0001, providing reliable signal and power continuity for ICT bill acceptor applications in vending, kiosk, and amusement machines.

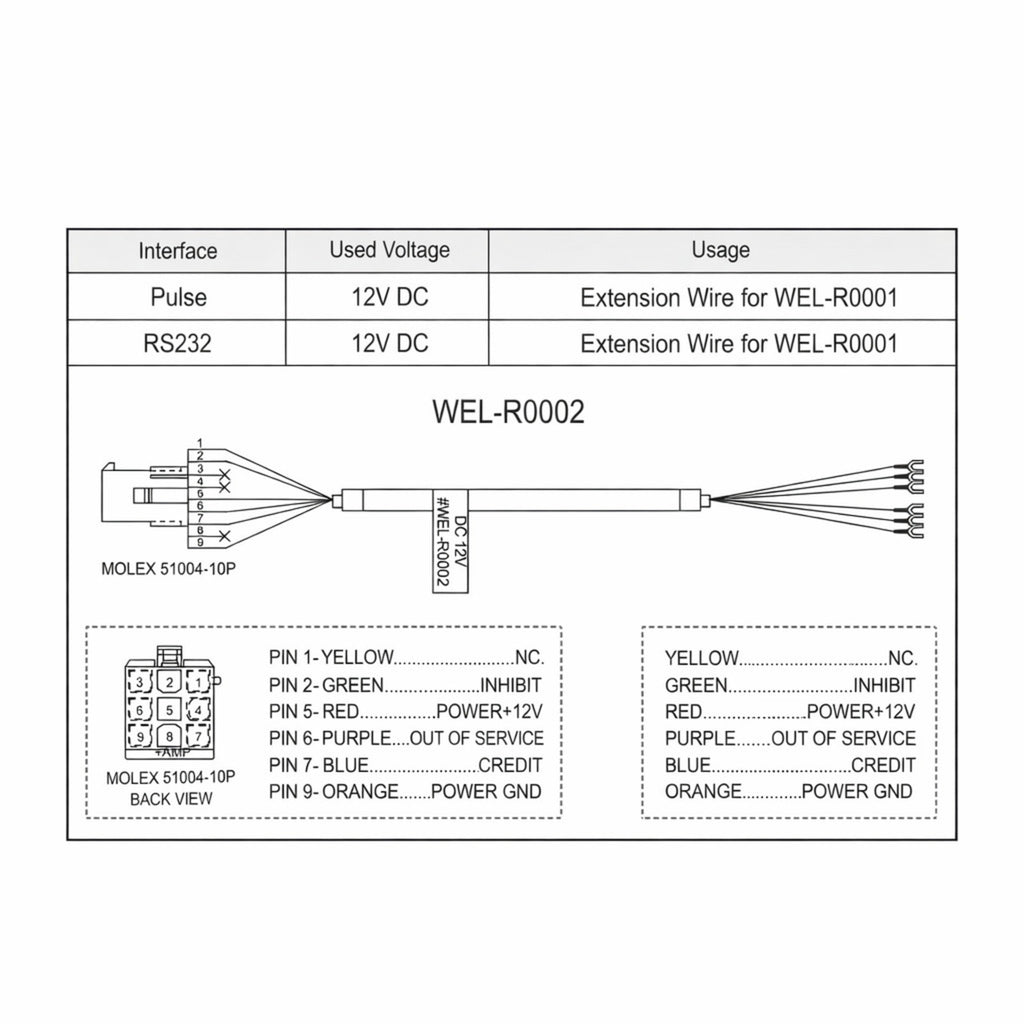

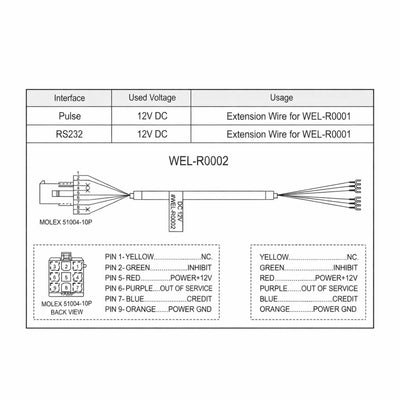

WEL-R0002 Interface Specifications
| Interface |
Used Voltage |
Usage |
| Pulse |
12V DC |
Extension Wire for WEL-R0001 |
| RS232 |
12V DC |
Extension Wire for WEL-R0001 |
Connector Types
- Molex 51004-10P
- Open-End Wire Leads
Molex 51004-10P Pin Assignments (Back View)
| Pin |
Color |
Function |
| Pin 1 |
Yellow |
N.C. |
| Pin 2 |
Green |
Inhibit |
| Pin 5 |
Red |
Power +12V |
| Pin 6 |
Purple |
Out of Service |
| Pin 7 |
Blue |
Credit |
| Pin 9 |
Orange |
Power GND |
Wire Lead Color Functions
| Color |
Function |
| Yellow |
N.C. |
| Green |
Inhibit |
| Red |
Power +12V |
| Purple |
Out of Service |
| Blue |
Credit |
| Orange |
Power GND |
Key Features
- Genuine ICT WEL-R0002 extension cable
- Designed for use with WEL-R0001 cable
- Supports Pulse and RS232 systems
- 12V DC power and signal extension
- Ideal for bill acceptors, vending machines, kiosks, and amusement equipment
