ICT WEL-RBG07 Cable is a high-voltage MDB interface cable designed to provide power and data communication between an MDB box and VMC (Vending Machine Controller). With a working range of 20V–42.5V DC, this cable ensures reliable connectivity between plug-in boards and vending control systems.

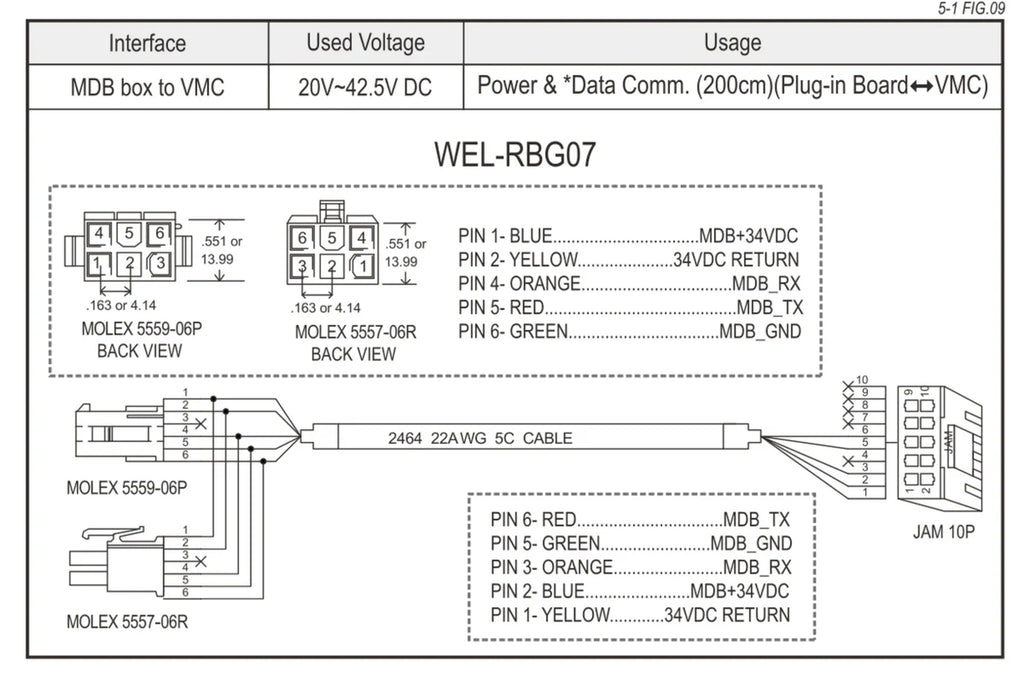

WEL-RBG07 Interface Specifications
| Interface |
Used Voltage |
Usage |
| MDB Box to VMC |
20V–42.5V DC |
Power & Data Communication (200cm) (Plug-in Board ↔ VMC) |
Connector Types
- Molex 5559-06P
- Molex 5557-06R
- JAM 10P
Cable Specifications
- 2464 22 AWG 5-Core Cable
- Designed for MDB communication systems
- Supports both high-voltage power and data transmission
Molex 5559-06P / 5557-06R Pin Assignments
| Pin |
Color |
Function |
| Pin 1 |
Blue |
MDB +34V DC |
| Pin 2 |
Yellow |
34V DC Return |
| Pin 4 |
Orange |
MDB RX |
| Pin 5 |
Red |
MDB TX |
| Pin 6 |
Green |
MDB GND |
JAM 10P Pin Assignments
| Pin |
Color |
Function |
| Pin 1 |
Yellow |
34V DC Return |
| Pin 2 |
Blue |
MDB +34V DC |
| Pin 3 |
Orange |
MDB RX |
| Pin 5 |
Green |
MDB GND |
| Pin 6 |
Red |
MDB TX |
Key Features
- Genuine ICT WEL-RBG07 MDB cable
- Supports 20V–42.5V DC systems
- Designed for MDB box to VMC connections
- Provides both power and data communication
- 200cm cable length for flexible installation
- Ideal for vending machines, kiosks, and amusement equipment
