The ICT WEL-RL702 cable provides 12V DC Pulse interface support for power and data communication, featuring AMP 172340-1 and TMT 2×8 connectors with full pin mapping.

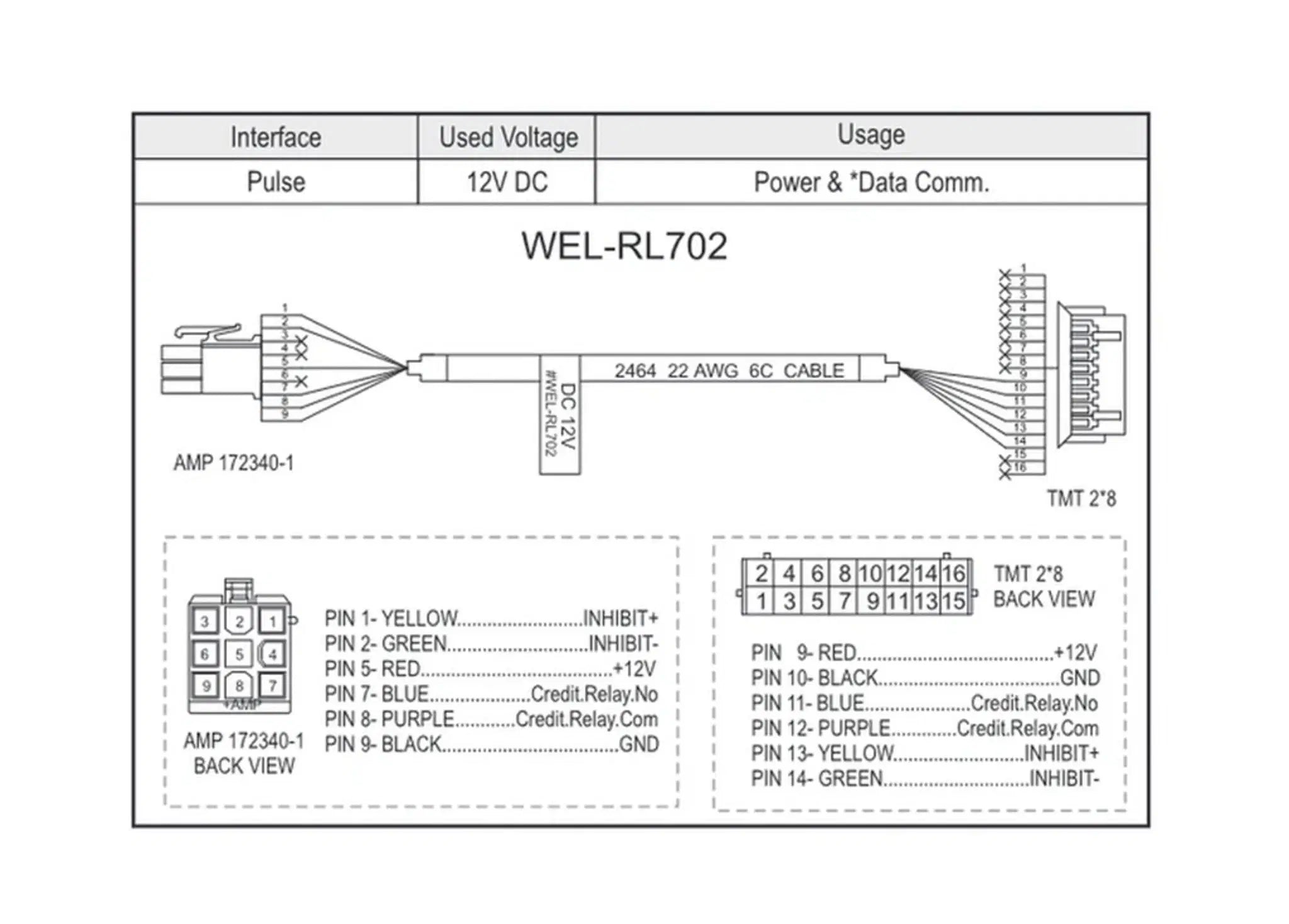

WEL-RL702 Pulse Interface Cable
| Interface |
Used Voltage |
Usage |
| Pulse |
12V DC |
Power & Data Communication |
AMP 172340-1 Pin Configuration
| Pin |
Color |
Function |
| PIN 1 |
YELLOW |
INHIBIT+ |
| PIN 2 |
GREEN |
INHIBIT- |
| PIN 5 |
RED |
+12V |
| PIN 7 |
BLUE |
Credit Relay No |
| PIN 8 |
PURPLE |
Credit Relay Com |
TMT 2*8 Pin Configuration (Back View)
| Pin |
Color |
Function |
| PIN 9 |
RED |
+12V |
| PIN 10 |
BLACK |
GND |
| PIN 11 |
BLUE |
Credit Relay No |
| PIN 12 |
PURPLE |
Credit Relay Com |
| PIN 13 |
YELLOW |
INHIBIT+ |
| PIN 14 |
GREEN |
INHIBIT- |
Cable Specifications
- AMP 172340-1
- 2464 22 AWG 6C Cable
- TMT 2*8
