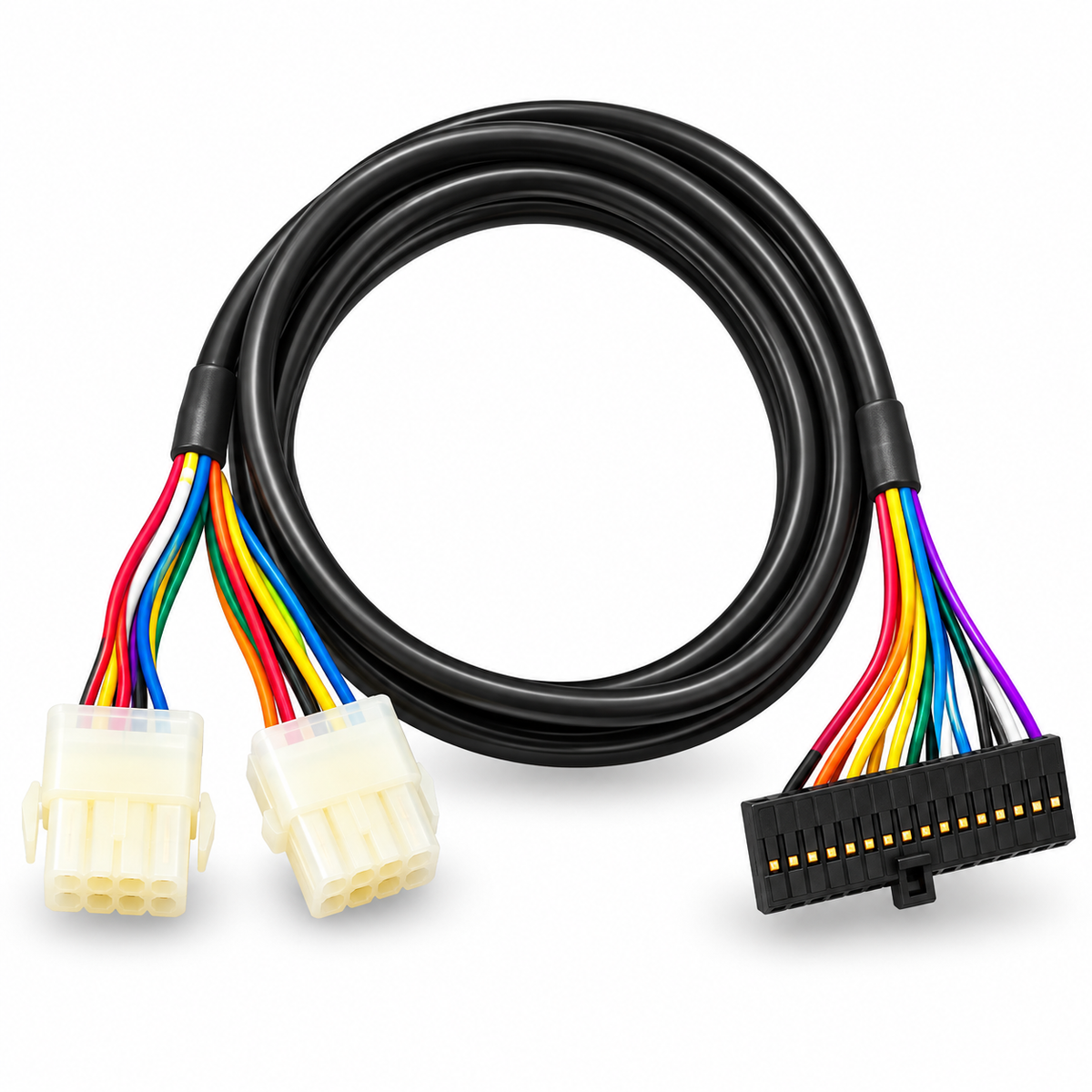

The ICT WEL-RM006 Cable supports 24V/34V DC power and data communication via MDB interface. Equipped with MOLEX 5557-6R and 5559-08P connectors, it provides reliable connections for ICT devices.
WEL-RM006 Cable Specifications
| Interface |
Used Voltage |
Usage |
| MDB |
24V/34V DC |
Power & Data Communication |
MOLEX Connectors
- MOLEX 5557-6R
- MOLEX 5559-08P

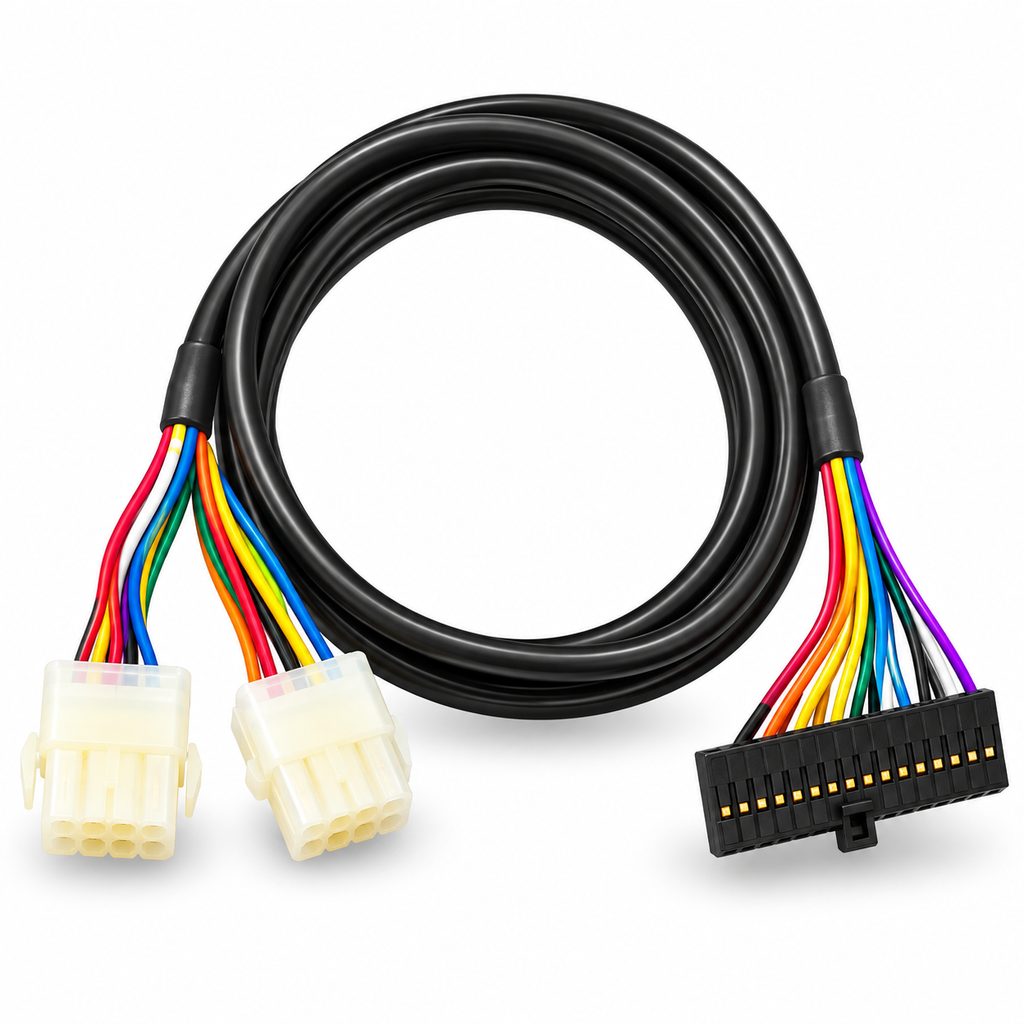

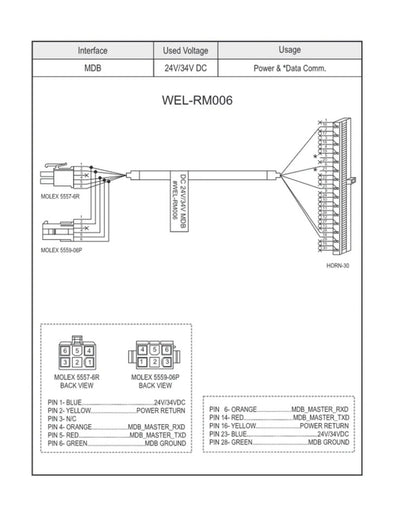

MOLEX 5557-6R Back View
| Pin |
Color |
Function |
| PN 1 |
BLUE |
24V/34V DC |
| PN 2 |
YELLOW |
POWER RETURN |
| PN 3 |
NIC |
NIC |
| PN 4 |
ORANGE |
MDB MASTER RXD |
| PN 5 |
RED |
MDB MASTER TXD |
| PN 6 |
GREEN |
MDB GROUND |
HORN-30
| Pin |
Color |
Function |
| PN 6 |
ORANGE |
MDB MASTER RXD |
| PN 14 |
RED |
MDB MASTER TXD |
| PN 16 |
YELLOW |
POWER RETURN |
| PN 23 |
BLUE |
24V/34V DC |
| PN 28 |
GREEN |
MDB GROUND |
