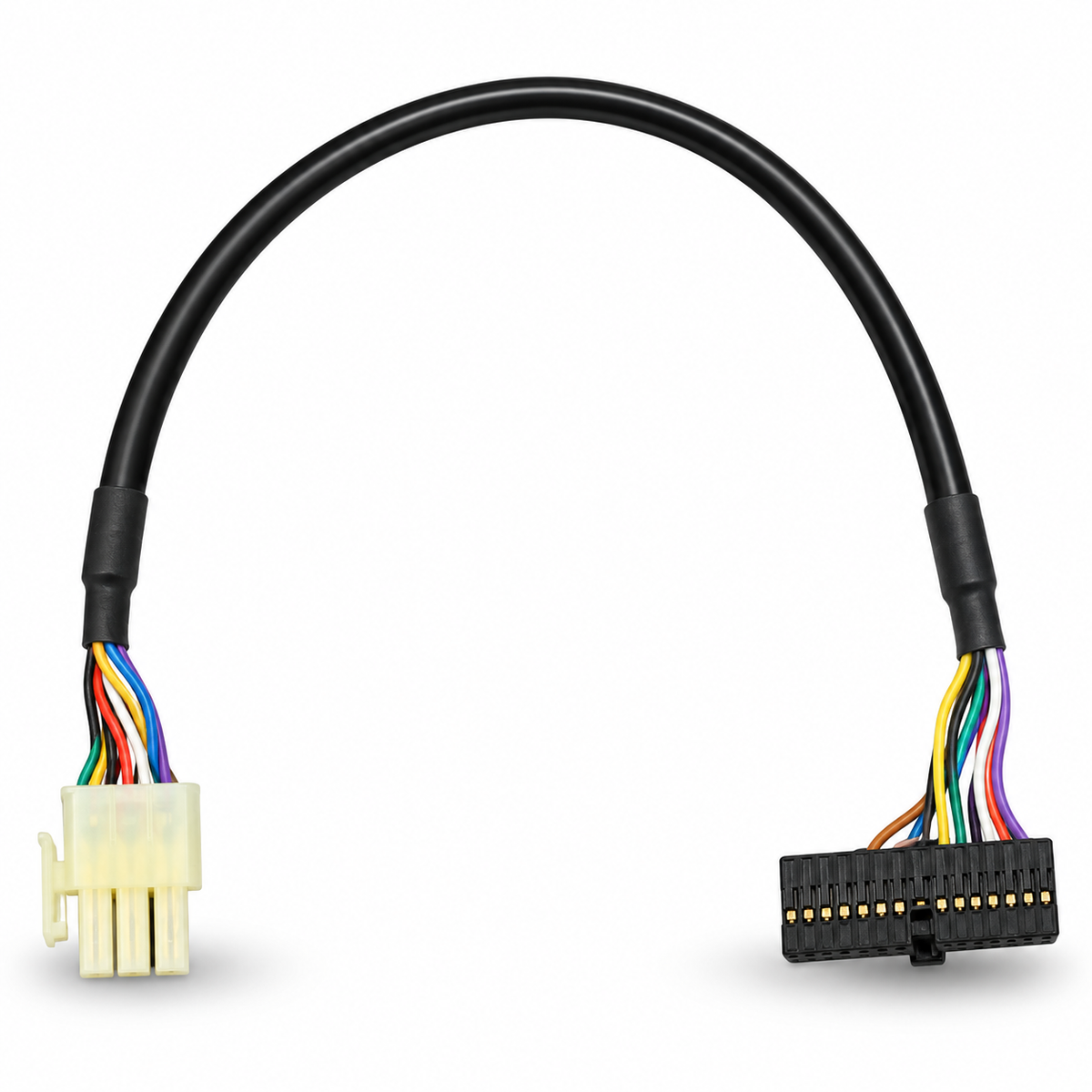

The ICT WEL-RM007 is a 12V power and communication cable built with 2464 22 AWG 8C wiring. It supports STD Pulse, RS232, credit relay, inhibit, and stable power delivery for ICT devices.

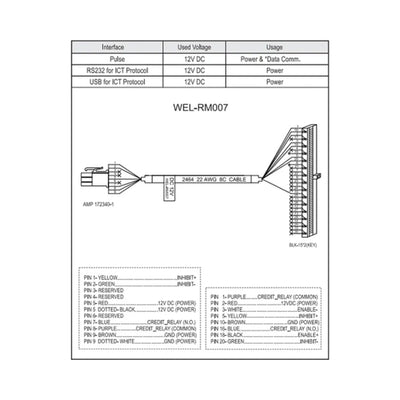

WEL-RM007 Cable Specifications
| Interface |
Used Voltage |
Usage |
| STD Pulse |
12V DC |
Power & Data Communication |
| ICT Protocol (RS232) |
12V DC |
Power |
AMP 172340-1
Cable: 2464 22 AWG 8C Cable
Connector: BLK-15°Z(NEY)
Pin Assignments
| Pin |
Color |
Function |
| PN 1 |
YELLOW |
INHIBIT+ |
| PN 2 |
GREEN |
INHIBIT- |
| PN 3 |
RESERVED |
RESERVED |
| PN 4 |
RESERVED |
RESERVED |
| PN 5 |
RED |
12V DC (POWER) |
| PN 6 |
DOTTED-BLACK |
12V DC (POWER) |
| PN 7 |
BLUE |
CREDIT_RELAY (N.O.) |
| PN 8 |
PURPLE |
CREDIT_RELAY (COMMON) |
| PN 9 |
BROWN |
GND (POWER) |
| PN 10 |
DOTTED-WHITE |
GND (POWER) |
Additional Pin Assignments
| Pin |
Color |
Function |
| PN 1 |
PURPLE |
CREDIT_RELAY (COMMON) |
| PN 2 |
RED |
12VDC (POWER) |
| PN 3 |
WHITE |
ENABLE- |
| PN 5 |
YELLOW |
INHIBIT+ |
| PN 10 |
BROWN |
GND (POWER) |
| PN 16 |
BLUE |
CREDIT_RELAY (N.O.) |
| PN 18 |
BLACK |
ENABLE+ |
| PN 20 |
GREEN |
INHIBIT- |
