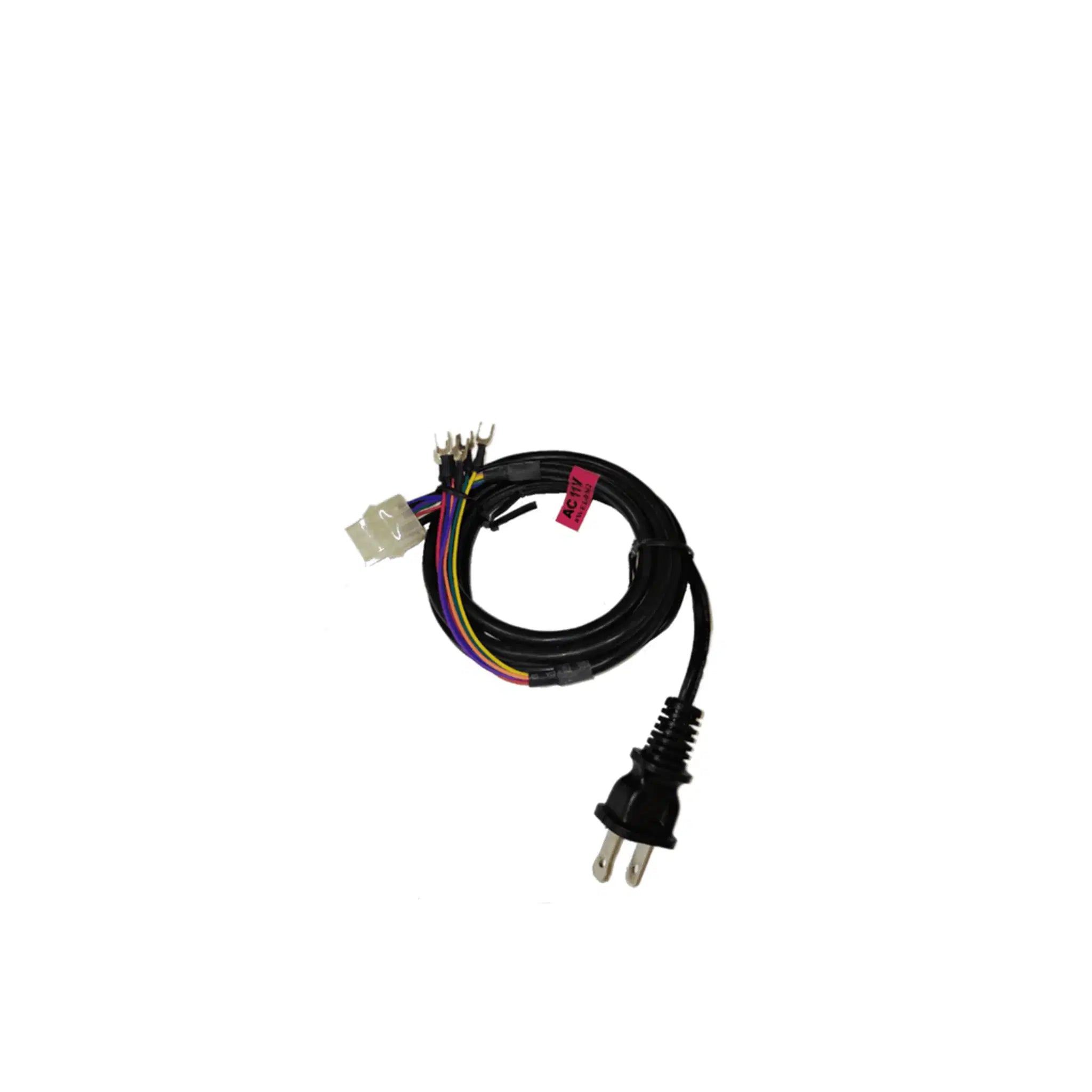

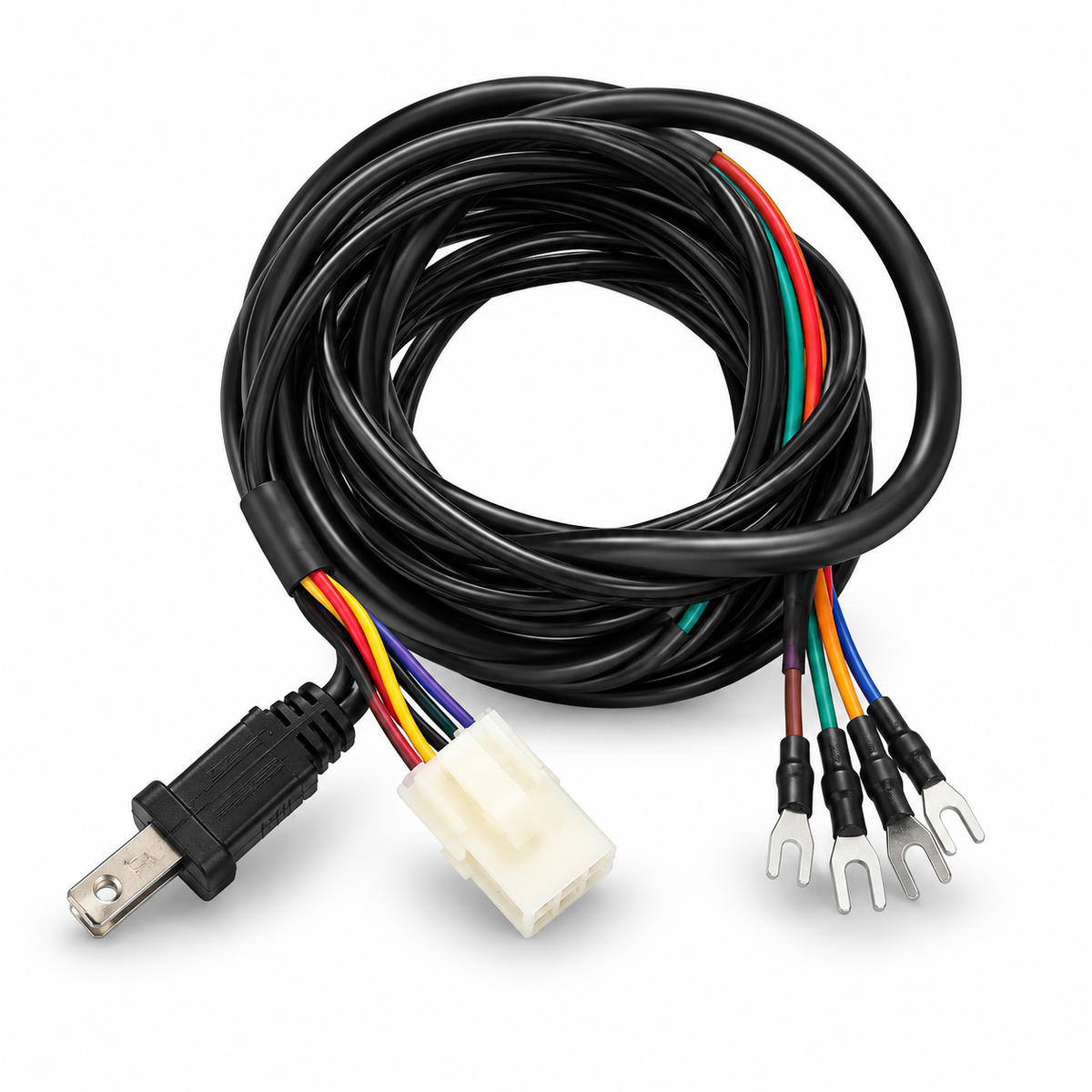

The ICT WEL-RM012 Fanout Harness delivers reliable power and communication connectivity with support for AMP 172332-1 wiring, voltage routing, and ICT interface requirements.
WEL-RM012 Interface Details
| Interface |
Used Voltage |
Usage |
| Pulse |
117V AC |
Extension Wire for WEL-RM008 |
| RS232 for ICT Protocol |
117V AC |
Extension Wire for WEL-RM008 |

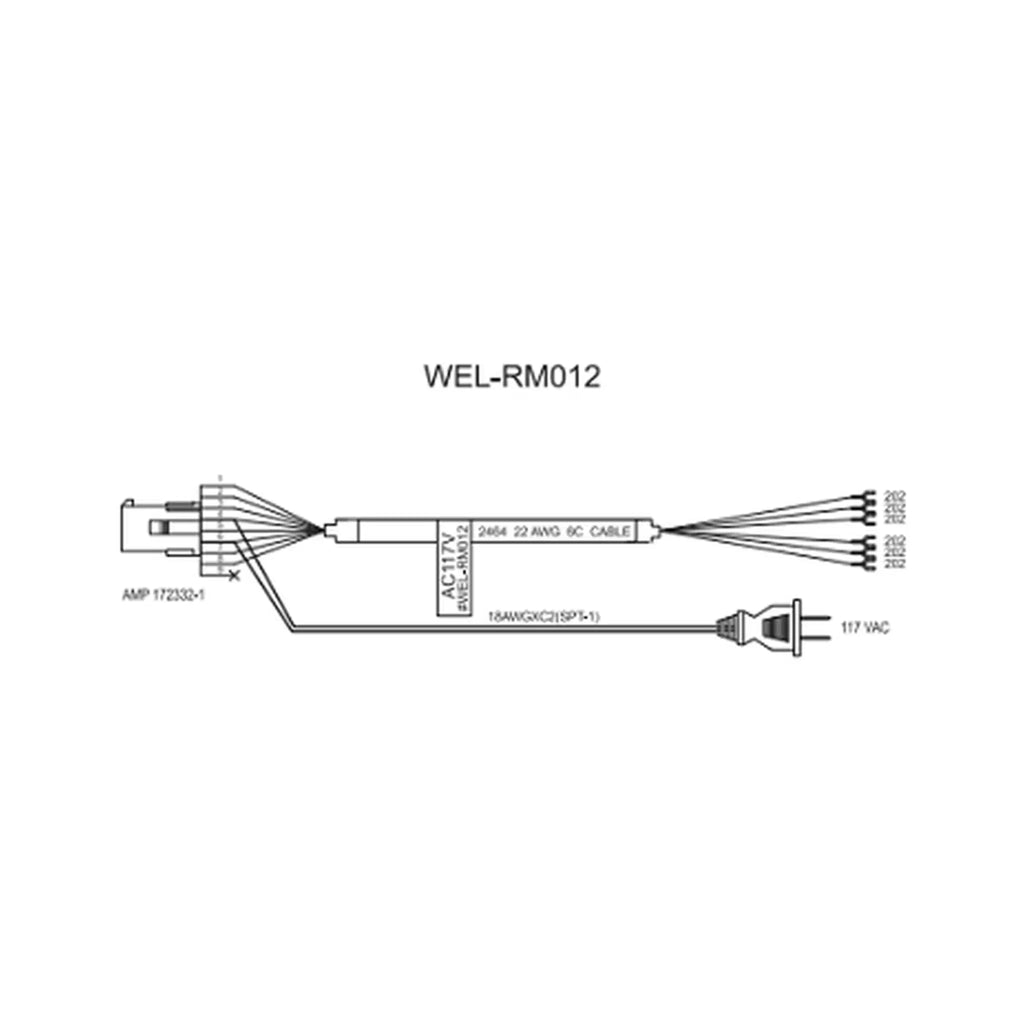

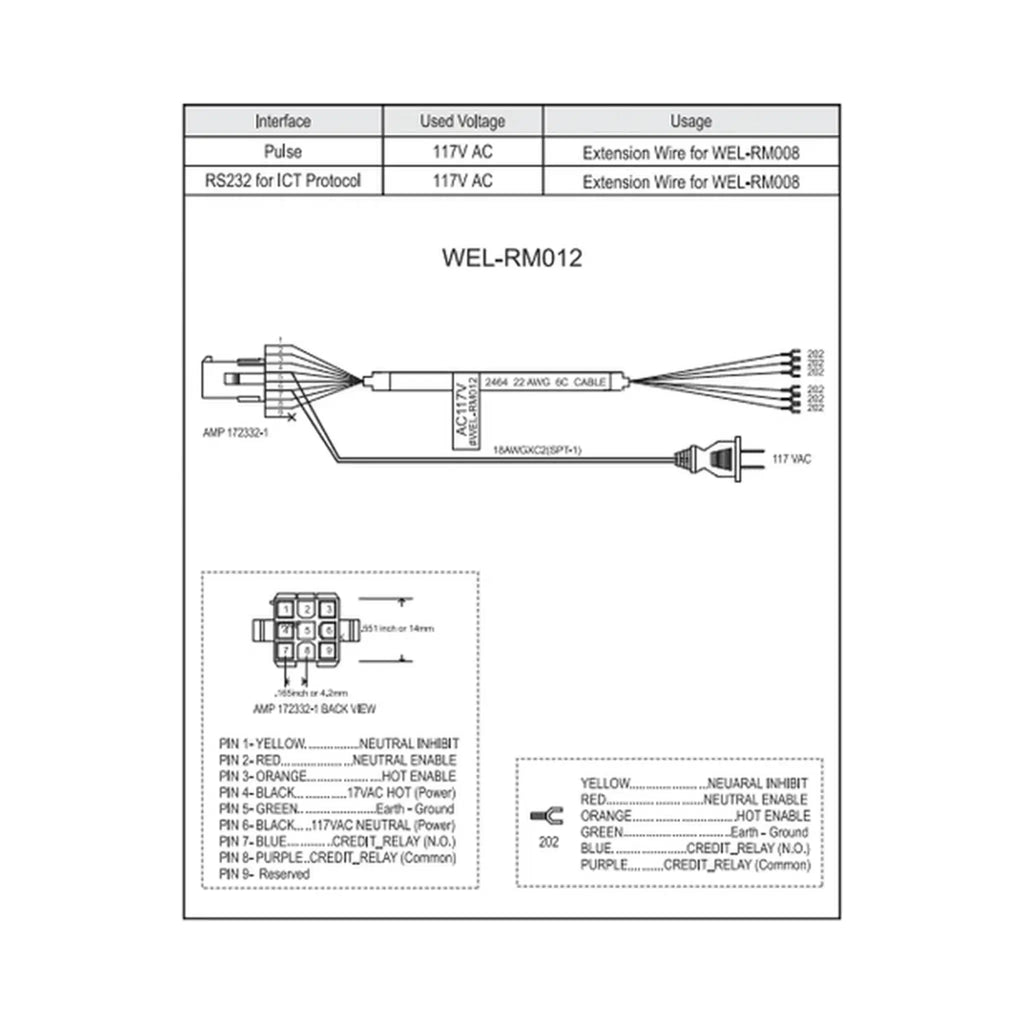

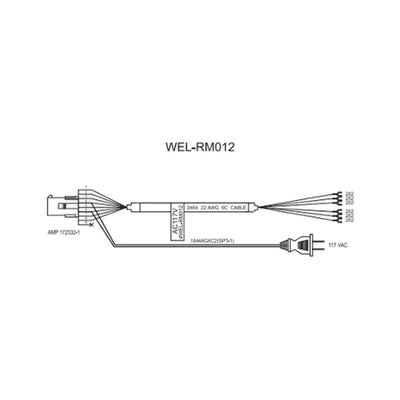

WEL-RM012
AMP 172332-1 Pinout
| Pin |
Color |
Function |
| PIN 1 |
YELLOW |
NEUTRAL INHIBIT |
| PIN 2 |
RED |
NEUTRAL ENABLE |
| PIN 3 |
ORANGE |
HOT ENABLE |
| PIN 4 |
BLACK |
117VAC HOT (Power) |
| PIN 5 |
GREEN |
Earth - Ground |
| PIN 6 |
BLACK |
117VAC NEUTRAL (Power) |
| PIN 7 |
BLUE |
CREDIT RELAY (N.O.) |
| PIN 8 |
PURPLE |
CREDIT RELAY (Common) |
202 Wire Color Code
| Color |
Function |
| YELLOW |
NEUTRAL INHIBIT |
| RED |
NEUTRAL ENABLE |
| ORANGE |
HOT ENABLE |
| GREEN |
Earth - Ground |
| BLUE |
CREDIT RELAY (N.O.) |
| PURPLE |
CREDIT RELAY (Common) |
