The WEL-RM036 supports Pulse, ICT Protocol V2.2, and RS232 A0 interfaces using 12V DC
WEL-RM036 Interface Details
| Interface |
Used Voltage |
Usage |
| Pulse |
12V DC |
Power & Data Communication |
| ICT Protocol, V2.2 |
12V DC |
Power |
| RS232 A0 |
12V DC |
Power |
WEL-RM036
Pin Configuration (Part 1)
| Pin |
Color |
Function |
| PN 1 |
Yellow |
INHIBIT+ |
| PN 2 |
Green |
INHIBIT- |
| PN 5 |
Red & Black |
12V DC (Power) |
| PN 7 |
Blue |
CREDIT_RELAY (N.O.) |
| PN 8 |
Purple |
CREDIT_RELAY (Common) |
| PN 9 |
Brown & White |
GND (Power) |
Dual Row Crimp Connector Housing
AMP 172340-1
Pin Configuration (Part 2)
| Pin |
Color |
Function |
| PN 1 |
Purple |
CREDIT_RELAY (Common) |
| PN 3 |
White |
ENABLE- |
| PN 5 |
Yellow |
INHIBIT+ |
| PN 10 |
Brown |
GND (Power) |
| PN 16 |
Blue |
CREDIT_RELAY (N.O.) |
| PN 17 |
Red |
12V DC (Power) |
| PN 18 |
Black |
ENABLE+ |
| PN 21 |
Green |
INHIBIT- |

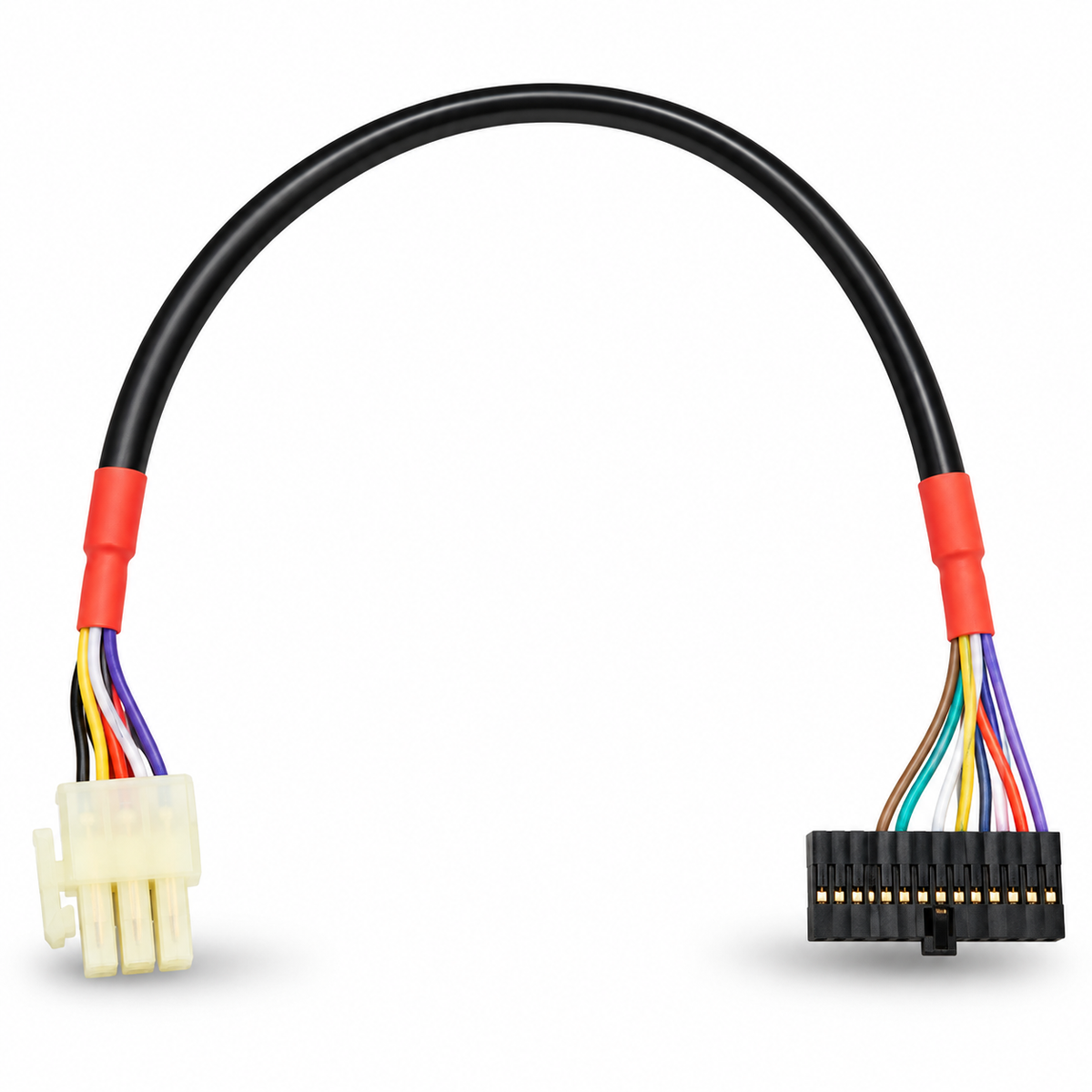

Cable Specifications
-
Cable: BLK-15*2
-
Connector: AMP 172340-1
