ICT WEL-RS7P02 Cable is an MDB interface cable designed to provide both power and data communication between ICT bill acceptors and MDB-compatible systems. Built with a durable 22 AWG 6-core cable, it ensures stable performance in vending, amusement, and kiosk applications.

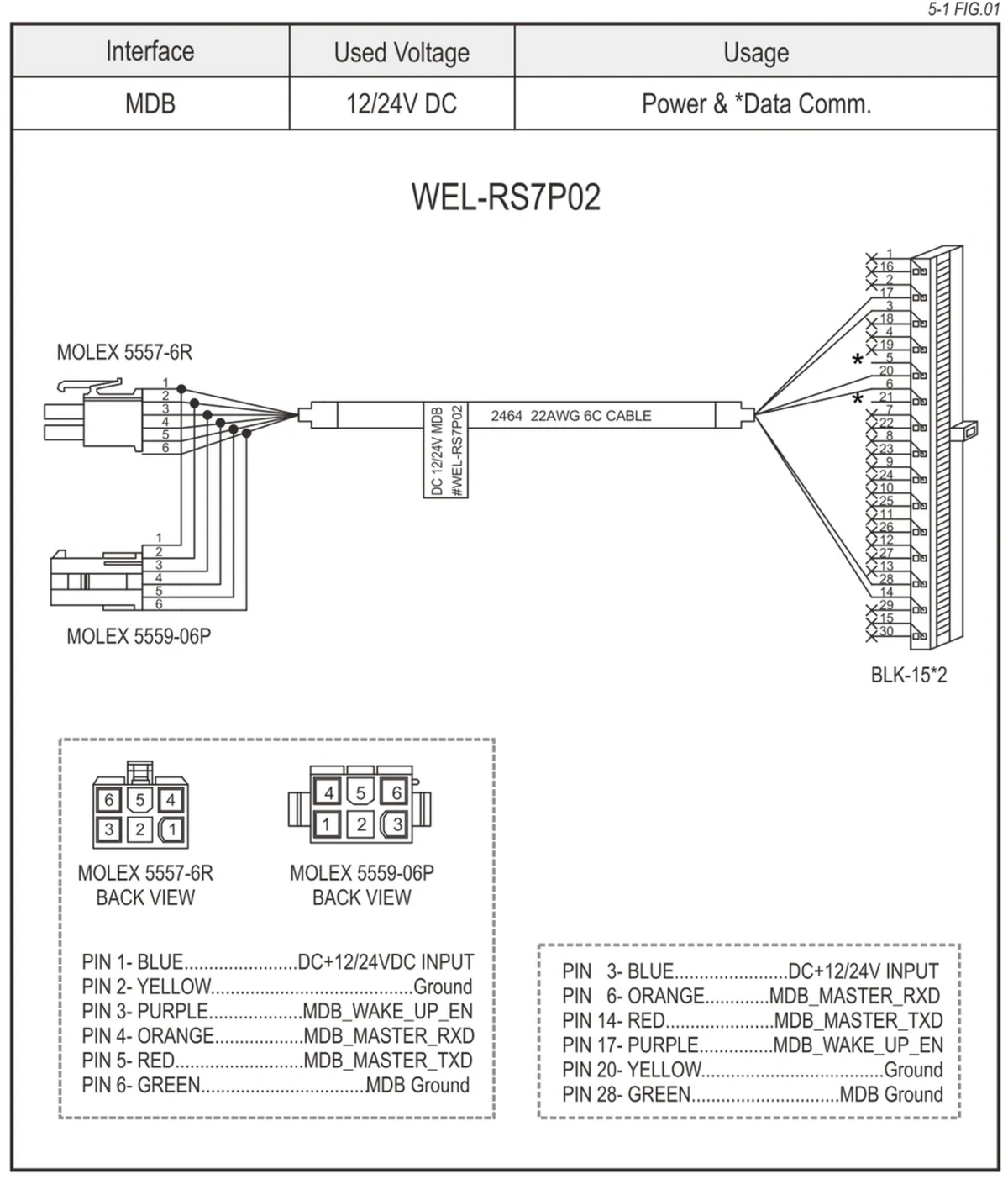

WEL-RS7P02 Interface Specifications
| Interface |
Used Voltage |
Usage |
| MDB |
12/24V DC |
Power & Data Communication |
Connector Types
- Molex 5557-6R
- Molex 5559-06P
- BLK-15*2 (30-Pin Connector)
WEL-RS7P02 Cable Specifications
- 22 AWG 6-Core Cable
- Supports MDB (Multi-Drop Bus) Protocol
- Handles both power and data transmission
Molex 5557-6R Pin Assignments (Back View)
| Pin |
Color |
Function |
| Pin 1 |
Blue |
DC +12/24V Input |
| Pin 2 |
Yellow |
Ground |
| Pin 3 |
Purple |
MDB Wake Up Enable |
| Pin 4 |
Orange |
MDB Master RXD |
| Pin 5 |
Red |
MDB Master TXD |
| Pin 6 |
Green |
MDB Ground |
BLK-15×2 (30-Pin) Assignments
| Pin |
Color |
Function |
| Pin 3 |
Blue |
DC +12/24V Input |
| Pin 6 |
Orange |
MDB Master RXD |
| Pin 14 |
Red |
MDB Master TXD |
| Pin 17 |
Purple |
MDB Wake Up Enable |
| Pin 20 |
Yellow |
Ground |
| Pin 28 |
Green |
MDB Ground |
Key Features
- Genuine ICT WEL-RS7P02 MDB cable
- Supports 12V and 24V DC systems
- Provides both power and data communication
- Compatible with MDB vending and bill acceptor systems
- Ideal for vending machines, kiosks, and amusement equipment
