Description
The WEL-RSCA303 features a USB A Type Female connector with pins for 5V, D-, D+, GND, and ID, ensuring reliable data communication.

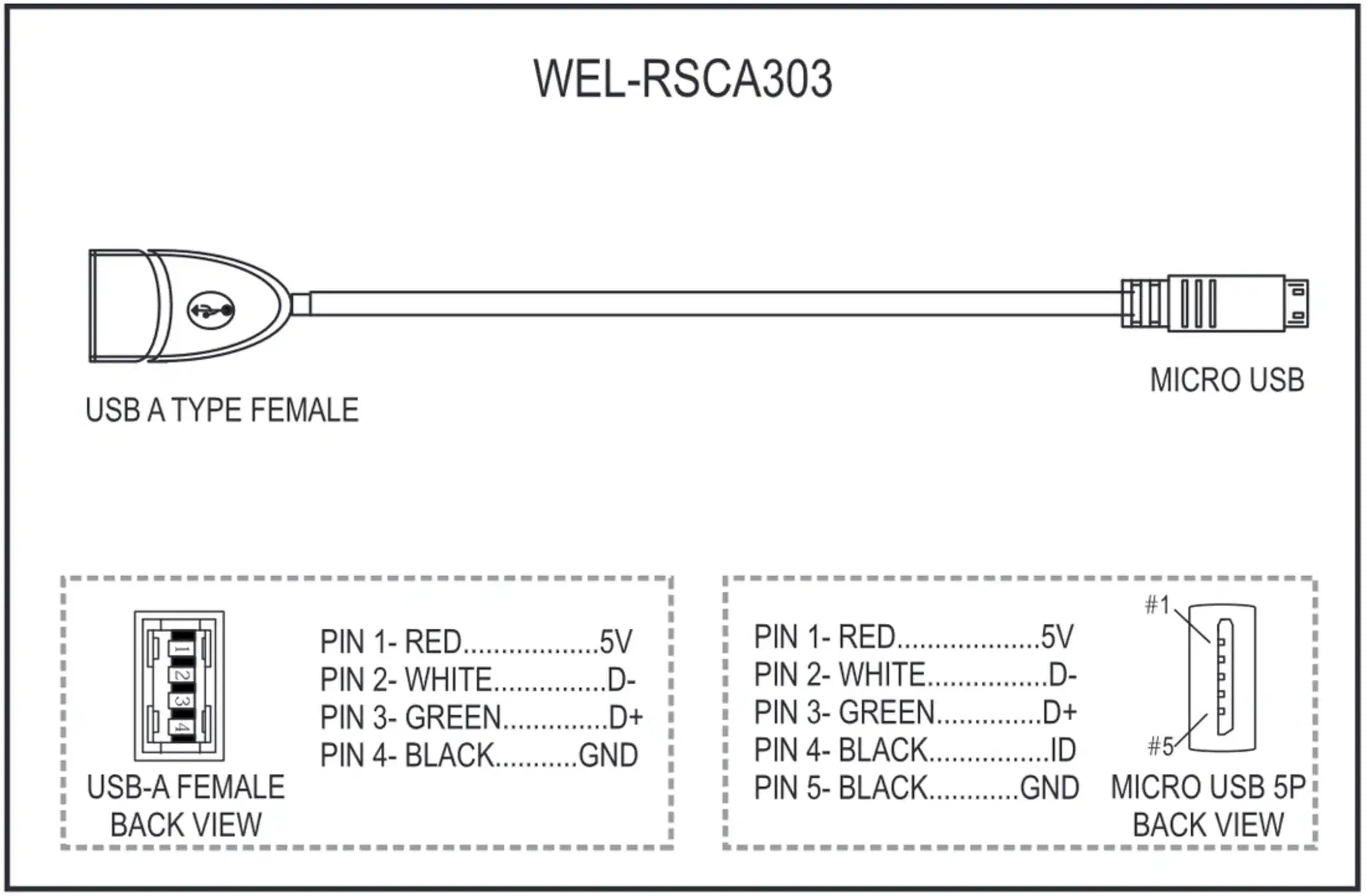

WEL-RSCA303 Interface Details
WEL-RSCA303
USB A Type Female
Pin Configuration (Part 1)
| Pin | Color | Function |
|---|---|---|
| PIN 1 | RED | 5V |
| PIN 2 | WHITE | D- |
| PIN 3 | GREEN | D+ |
| PIN 4 | BLACK | GND |
Pin Configuration (Part 2)
| Pin | Color | Function |
|---|---|---|
| PIN 1 | RED | 5V |
| PIN 2 | WHITE | D- |
| PIN 3 | GREEN | D+ |
| PIN 4 | BLACK | ID |
| PIN 5 | BLACK | GND |
Technical Specifications
| Brand | ICT |
