ICT WEL-RTK7708-1 Cable is a 12V DC MDB interface cable designed to provide power and data communication between an MDB box and a bill acceptor. It is specifically used for connections between the bill acceptor and plug-in board (BA ↔ Plug-in Board), ensuring reliable performance in vending, kiosk, and amusement applications.

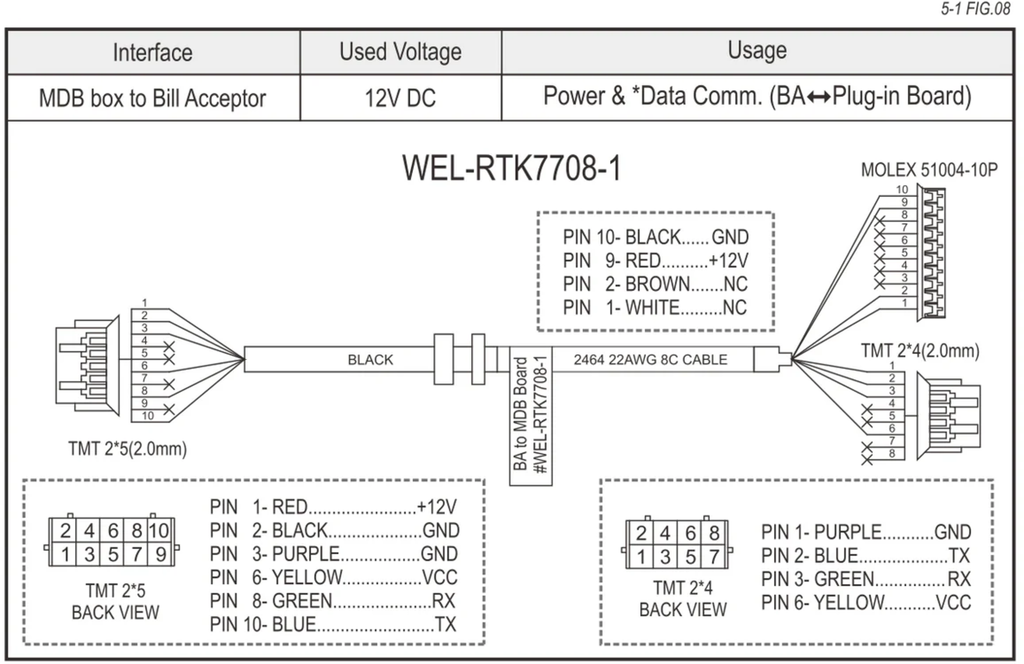

WEL-RTK7708-1 Interface Specifications
| Interface |
Used Voltage |
Usage |
| MDB Box to Bill Acceptor |
12V DC |
Power & Data Communication (BA ↔ Plug-in Board) |
Connector Types
- TMT 2×5 (2.0mm)
- Molex 51004-10P
- TMT 2×4 (2.0mm)
Cable Specifications
- 2464 22 AWG 8-Core Cable
- Designed for MDB communication systems
- Supports both power and data transmission
TMT 2×5 Pin Assignments (Back View)
| Pin |
Color |
Function |
| Pin 1 |
Red |
+12V |
| Pin 2 |
Black |
GND |
| Pin 3 |
Purple |
GND |
| Pin 6 |
Yellow |
VCC |
| Pin 8 |
Green |
RX |
| Pin 10 |
Blue |
TX |
TMT 2×4 Pin Assignments (Back View)
| Pin |
Color |
Function |
| Pin 1 |
Purple |
GND |
| Pin 2 |
Blue |
TX |
| Pin 3 |
Green |
RX |
| Pin 6 |
Yellow |
VCC |
Molex 51004-10P Pin Assignments
| Pin |
Color |
Function |
| Pin 10 |
Black |
GND |
| Pin 9 |
Red |
+12V |
| Pin 2 |
Brown |
N.C. |
| Pin 1 |
White |
N.C. |
Key Features
- Genuine ICT WEL-RTK7708-1 MDB cable
- Designed for MDB box to bill acceptor connections
- 12V DC power and data communication
- Supports plug-in board integration (BA ↔ Plug-in Board)
- Ideal for vending machines, kiosks, and amusement equipment
