WEL-RV702 Interface | AMP 172332-1 Pinout
WEL-RV702 Cable Specifications
| Interface |
Used Voltage |
Usage |
| STD Pulse |
24V AC |
Extension Wire for WEL-RV703 |

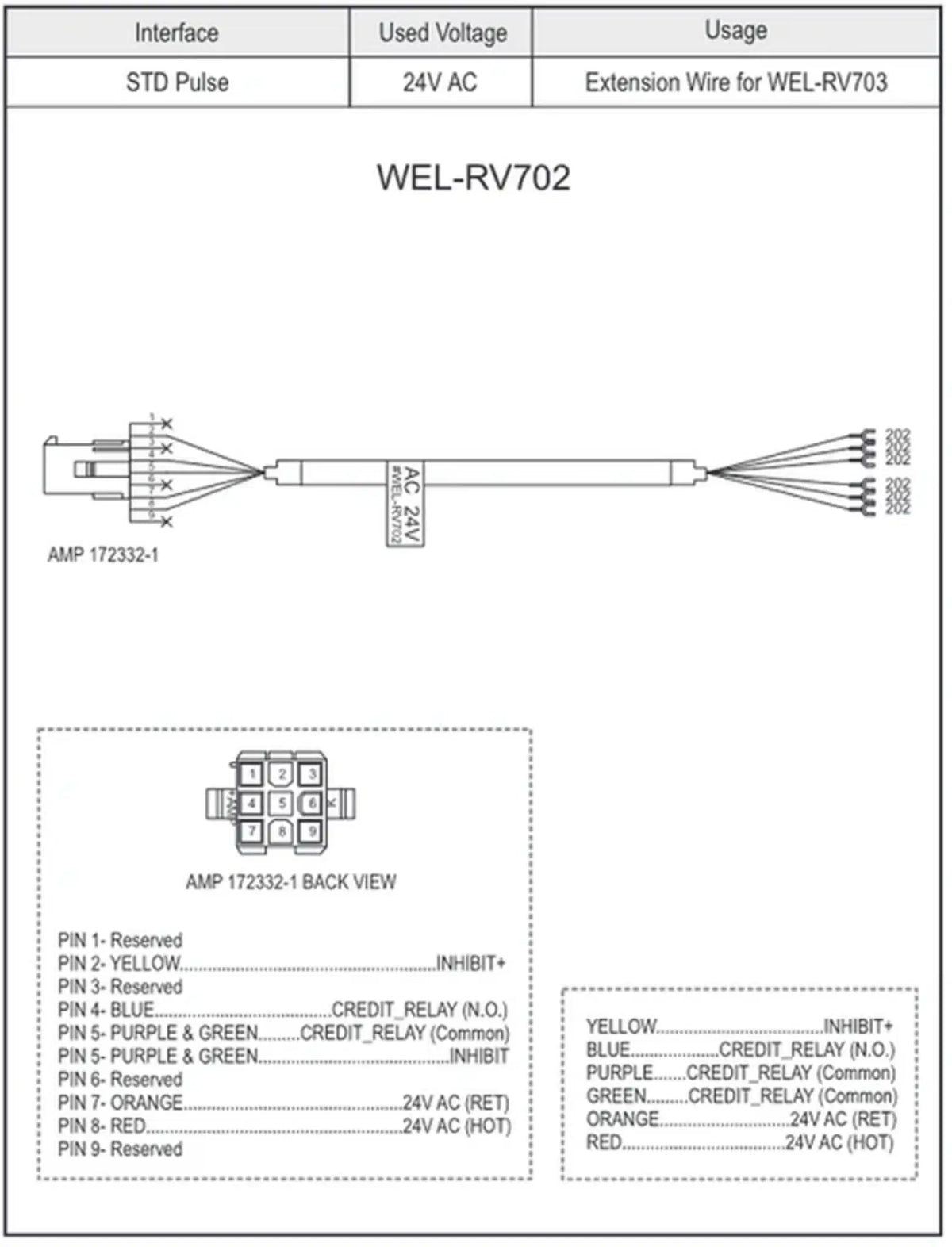

WEL-RV702
AMP 172332-1 BACK VIEW
| Pin |
Color |
Function |
| PIN 1 |
Reserved |
Reserved |
| PIN 2 |
Yellow |
INHIBIT+ |
| PIN 3 |
Reserved |
Reserved |
| PIN 4 |
Blue |
CREDIT_RELAY (N.O.) |
| PIN 5 |
Purple & Green |
CREDIT_RELAY (COMMON) |
| PIN 6 |
Purple & Green |
INHIBIT |
| PIN 7 |
Orange |
24V AC (RET) |
| PIN 8 |
Red |
24V AC (HOT) |
| PIN 9 |
Reserved |
Reserved |
Wire Color Assignments
| Color |
Function |
| Yellow |
INHIBIT+ |
| Blue |
CREDIT_RELAY (N.O.) |
| Purple |
CREDIT_RELAY (COMMON) |
| Green |
CREDIT_RELAY (COMMON) |
| Orange |
24V AC (RET) |
| Red |
24V AC (HOT) |
