The ICT WEL-RV703 is a 2464 22 AWG 6C cable designed for STD Pulse devices, offering stable 12V/24V AC power, credit relay support, and reliable data communication.

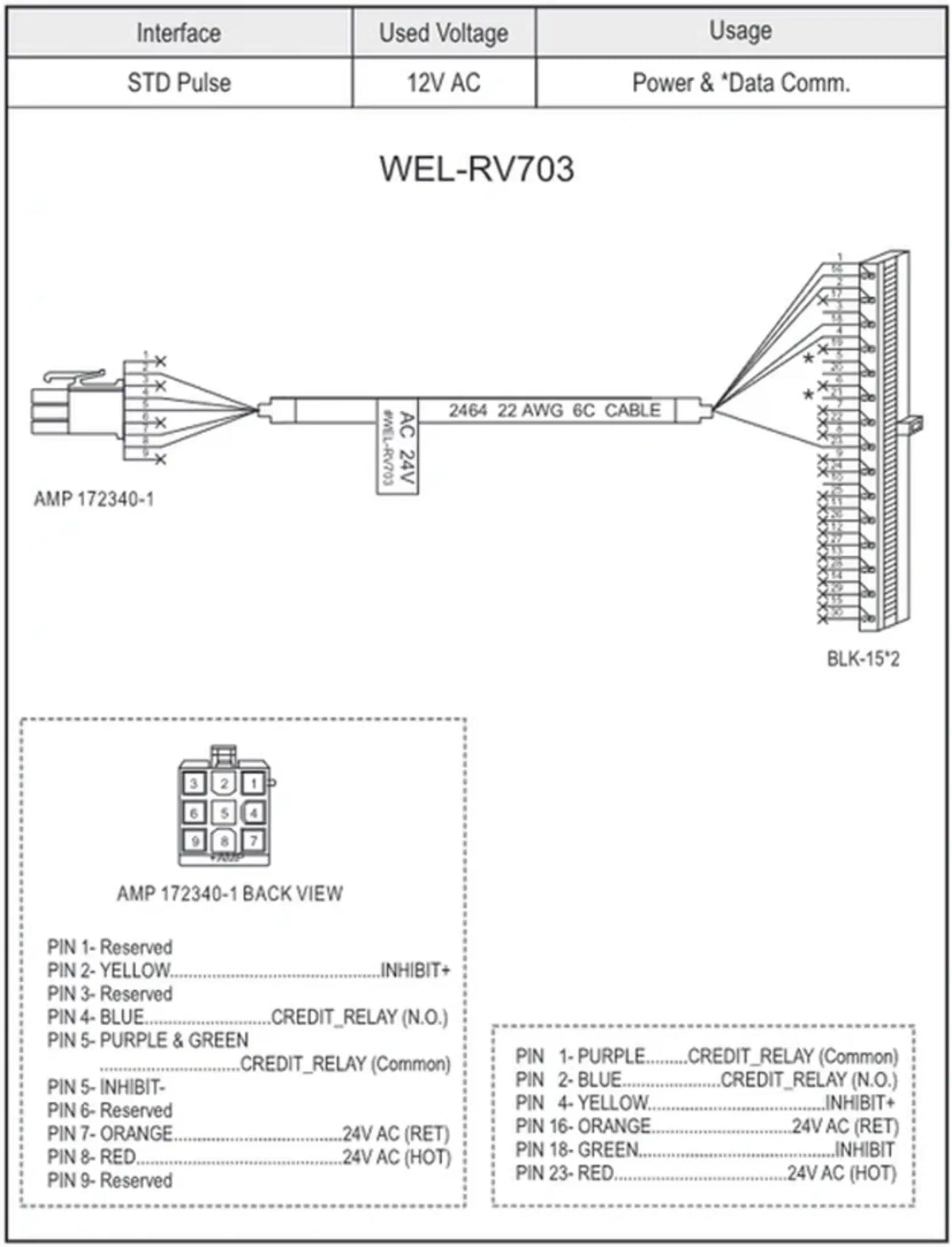

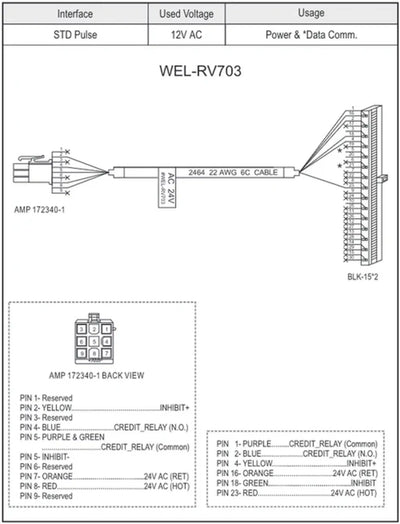

WEL-RV703 Cable Specifications
| Interface |
Used Voltage |
Usage |
| STD Pulse |
12V AC |
Power & *Data Comm. |
WEL-RV703
Cable: 2464 22 AWG 6C Cable
BLK-1572 AMP 172340-1 BACK VIEW
Pin Configuration
| Pin |
Color |
Function |
| PIN 1 |
Reserved |
Reserved |
| PIN 2 |
Yellow |
INHIBIT+ |
| PIN 3 |
Reserved |
Reserved |
| PIN 4 |
Blue |
CREDIT_RELAY (N.O.) |
| PIN 5 |
Purple & Green |
CREDIT_RELAY (COMMON) |
| PIN 6 |
N/A |
INHIBIT+ |
| PIN 7 |
Reserved |
Reserved |
| PIN 8 |
Orange |
24V AC (RET) |
| PIN 9 |
Red |
24V AC (HOT) |
| PIN 10 |
Reserved |
Reserved |
Wire Color Assignments
| Pin |
Color |
Function |
| PIN 1 |
Purple |
CREDIT_RELAY (COMMON) |
| PIN 2 |
Blue |
CREDIT_RELAY (N.O.) |
| PIN 4 |
Yellow |
INHIBIT+ |
| PIN 16 |
Orange |
24V AC (RET) |
| PIN 18 |
Green |
INHIBIT |
| PIN 23 |
Red |
24V AC (HOT) |
