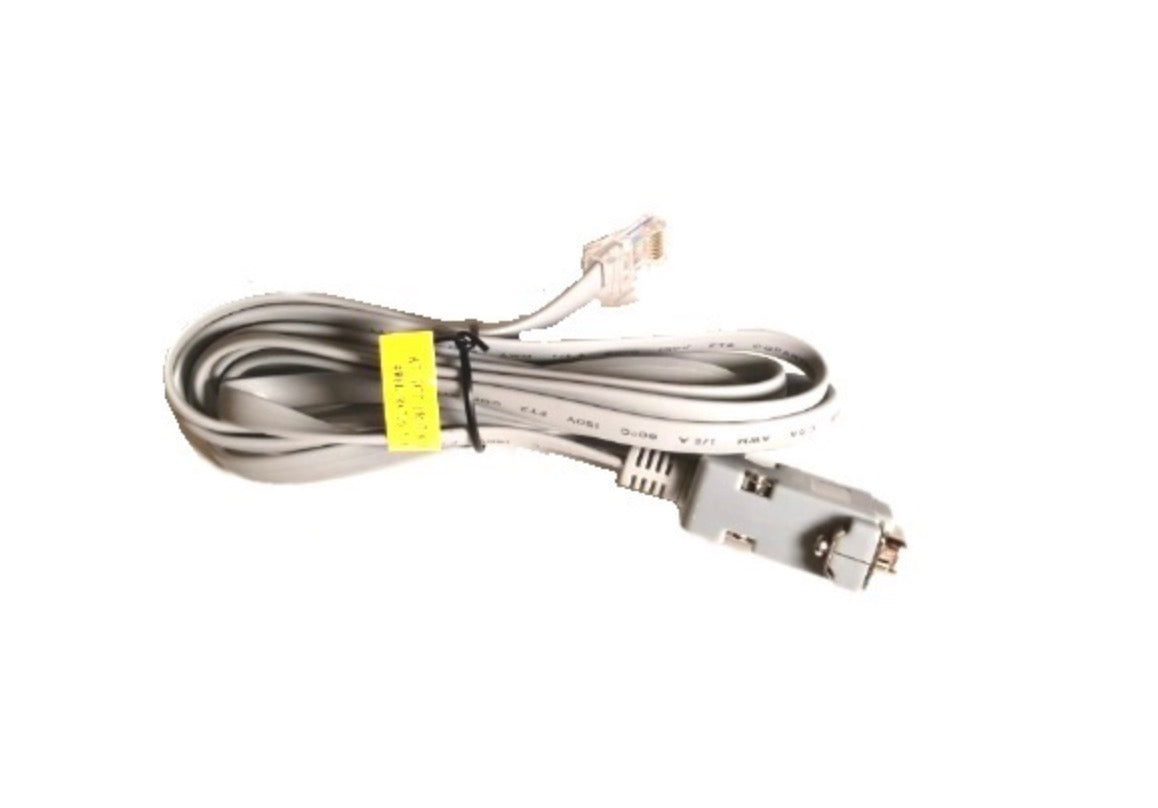

ICT WEL-RV706-1 Cable is an RS232 communication cable designed for ICT protocol systems. It provides reliable data communication between ICT bill acceptors and compatible devices using a D-SUB (9-pin) to RJ-45 connection, making it ideal for vending, amusement, and kiosk applications.
WEL-RV706-1 Interface Specifications
| Interface |
Used Voltage |
Usage |
| RS232 for ICT Protocol |
12V DC |
*Data Communication |
| RS232 for ICT Protocol |
117V AC |
*Data Communication |
Connector Types
- D-SUB 9-Pin Female (DB9F)
- RJ-45 Connector
WEL-RV706-1 Cable Specifications
- 26 AWG 6-Core Phone Cable
- Supports ICT RS232 Communication Protocol
- Designed for stable data transmission

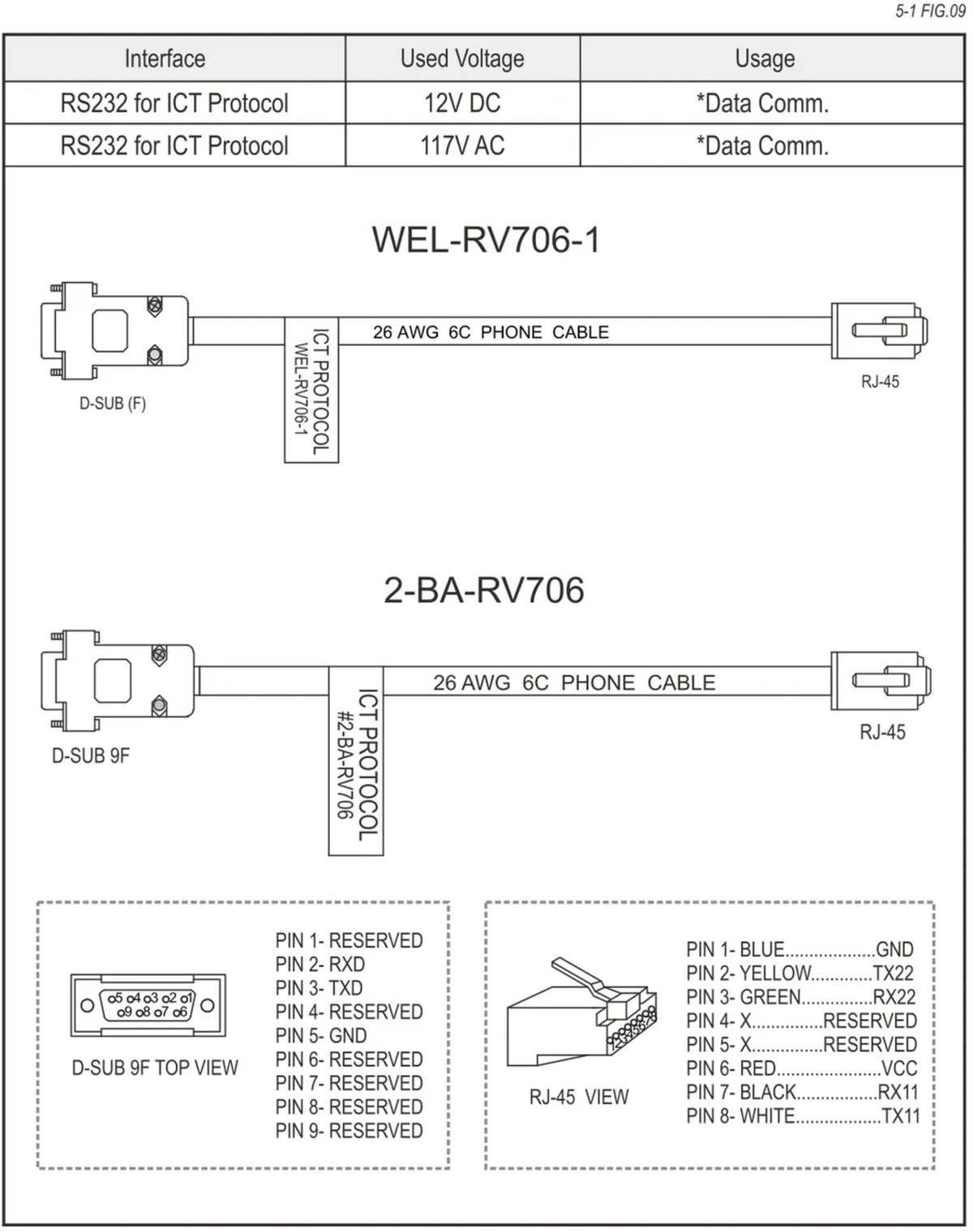

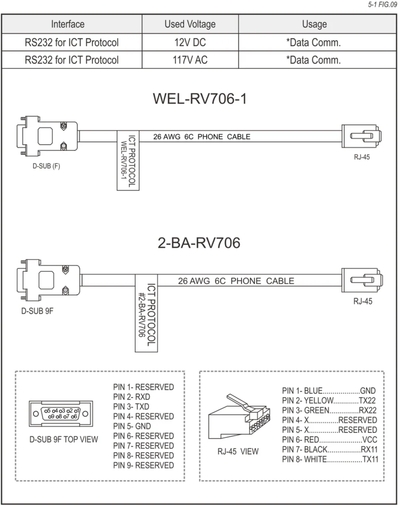

D-SUB 9-Pin Assignments (Top View)
| Pin |
Function |
| Pin 1 |
Reserved |
| Pin 2 |
RXD |
| Pin 3 |
TXD |
| Pin 4 |
Reserved |
| Pin 5 |
GND |
| Pin 6 |
Reserved |
| Pin 7 |
Reserved |
| Pin 8 |
Reserved |
| Pin 9 |
Reserved |
RJ-45 Pin Assignments
| Pin |
Color |
Function |
| Pin 1 |
Blue |
GND |
| Pin 2 |
Yellow |
TX22 |
| Pin 3 |
Green |
RX22 |
| Pin 4 |
- |
Reserved |
| Pin 5 |
- |
Reserved |
| Pin 6 |
Red |
VCC |
| Pin 7 |
Black |
RX11 |
| Pin 8 |
White |
TX11 |
Key Features
- Genuine ICT WEL-RV706-1 communication cable
- RS232 interface for ICT protocol devices
- D-SUB 9-pin to RJ-45 connection
- Supports 12V DC and 117V AC configurations
- Ideal for bill acceptors, vending machines, kiosks, and amusement equipment
