ICT WEL-RXBA18 Cable is a 12V DC power and data communication cable designed for ICT bill acceptor systems. It supports ICT Protocol, ccNet, and RS232 A0, making it a versatile connection cable for vending, kiosk, and amusement machine applications.
WEL-RXBA18 Interface Specifications
| Interface |
Used Voltage |
Usage |
| ICT Protocol |
12V DC |
Power & Data Communication |
| ccNet |
12V DC |
Power & Data Communication |
| RS232 A0 |
12V DC |
Power & Data Communication |
Connector Types
- AMP 172340-1
- D-SUB 9F (Female)
- BLK-15X2

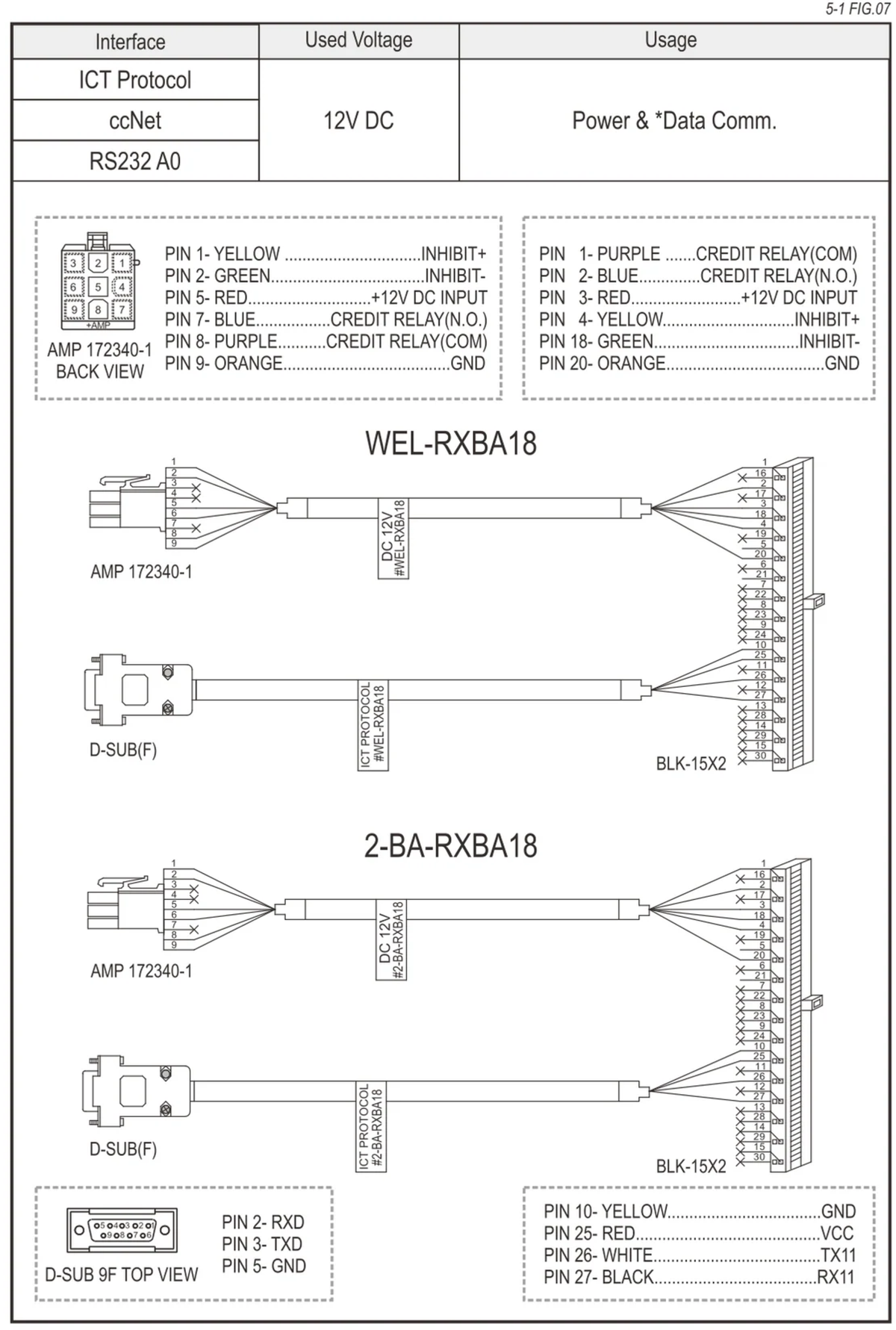

AMP 172340-1 Pin Assignments (Back View)
| Pin |
Color |
Function |
| Pin 1 |
Yellow |
INHIBIT+ |
| Pin 2 |
Green |
INHIBIT- |
| Pin 5 |
Red |
+12V DC Input |
| Pin 7 |
Blue |
Credit Relay (N.O.) |
| Pin 8 |
Purple |
Credit Relay (COM) |
| Pin 9 |
Orange |
GND |
BLK-15X2 Pin Assignments
| Pin |
Color |
Function |
| Pin 1 |
Purple |
Credit Relay (COM) |
| Pin 2 |
Blue |
Credit Relay (N.O.) |
| Pin 3 |
Red |
+12V DC Input |
| Pin 4 |
Yellow |
INHIBIT+ |
| Pin 18 |
Green |
INHIBIT- |
| Pin 20 |
Orange |
GND |
D-SUB 9F Pin Assignments (Top View)
| Pin |
Function |
| Pin 2 |
RXD |
| Pin 3 |
TXD |
| Pin 5 |
GND |
Additional BLK-15X2 Communication Pin Assignments
| Pin |
Color |
Function |
| Pin 10 |
Yellow |
GND |
| Pin 25 |
Red |
VCC |
| Pin 26 |
White |
TX11 |
| Pin 27 |
Black |
RX11 |
Key Features
- Genuine ICT WEL-RXBA18 cable
- Supports ICT Protocol, ccNet, and RS232 A0
- 12V DC power and data communication cable
- Compatible with ICT bill acceptor and machine interface systems
- Ideal for vending machines, kiosks, and amusement equipment
