Description

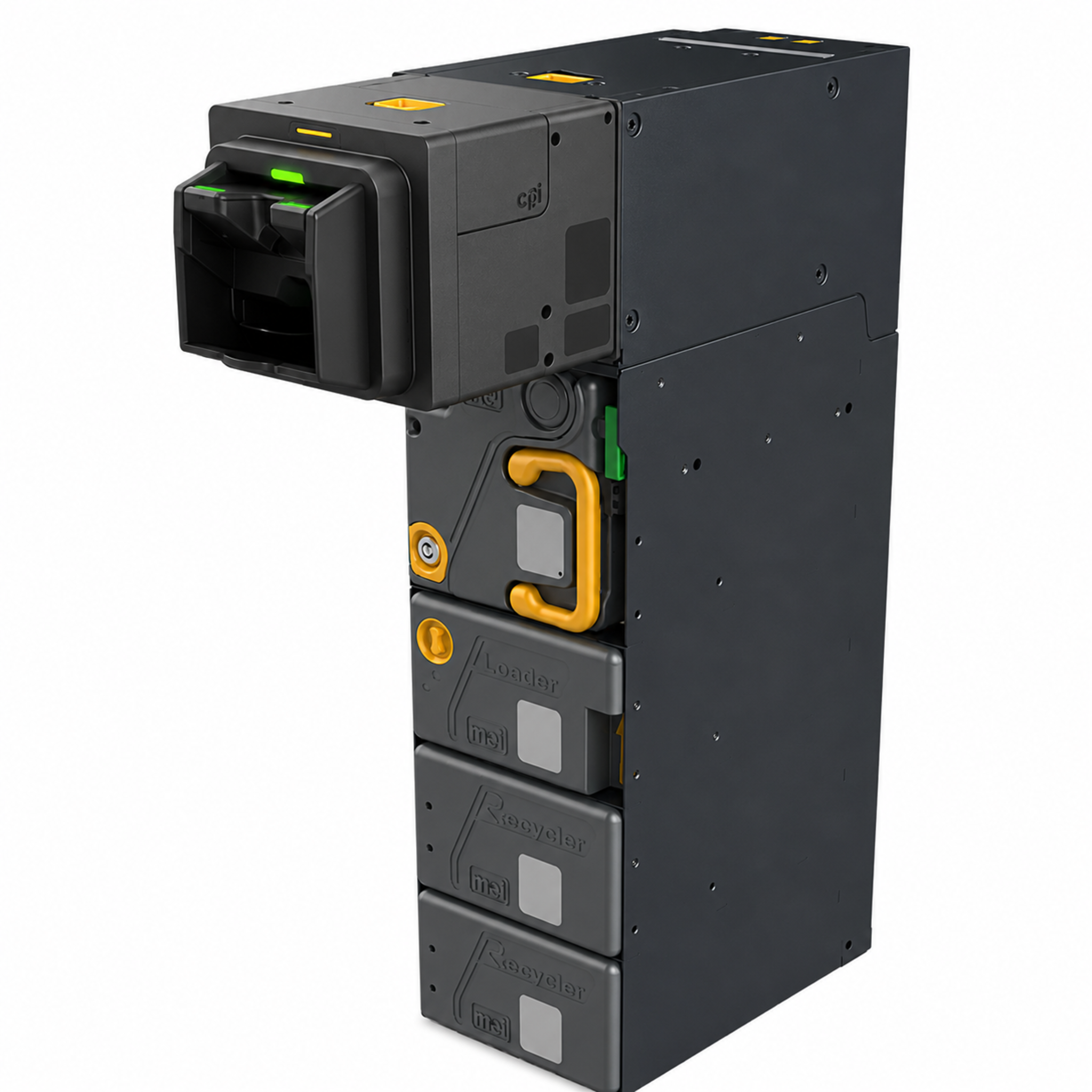

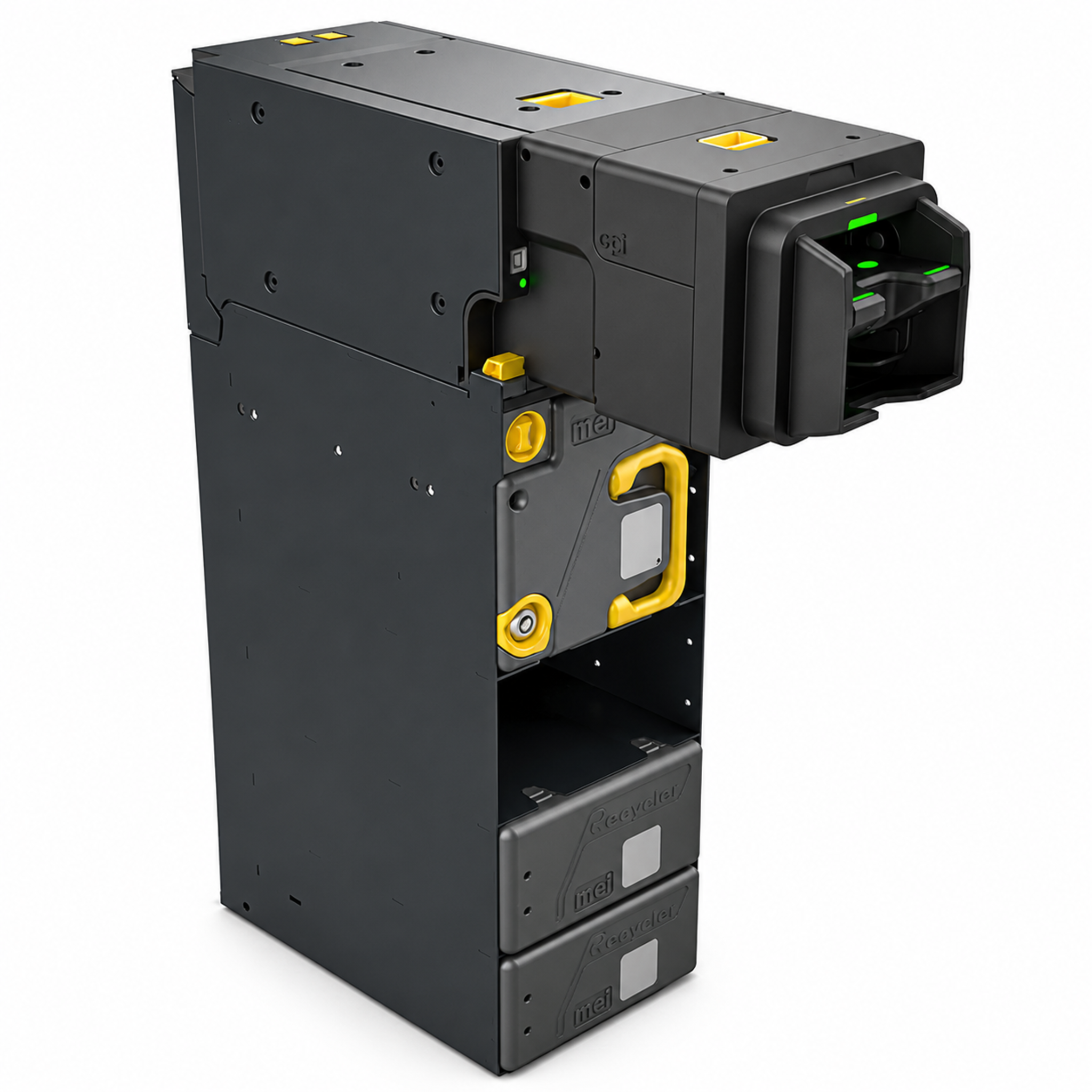

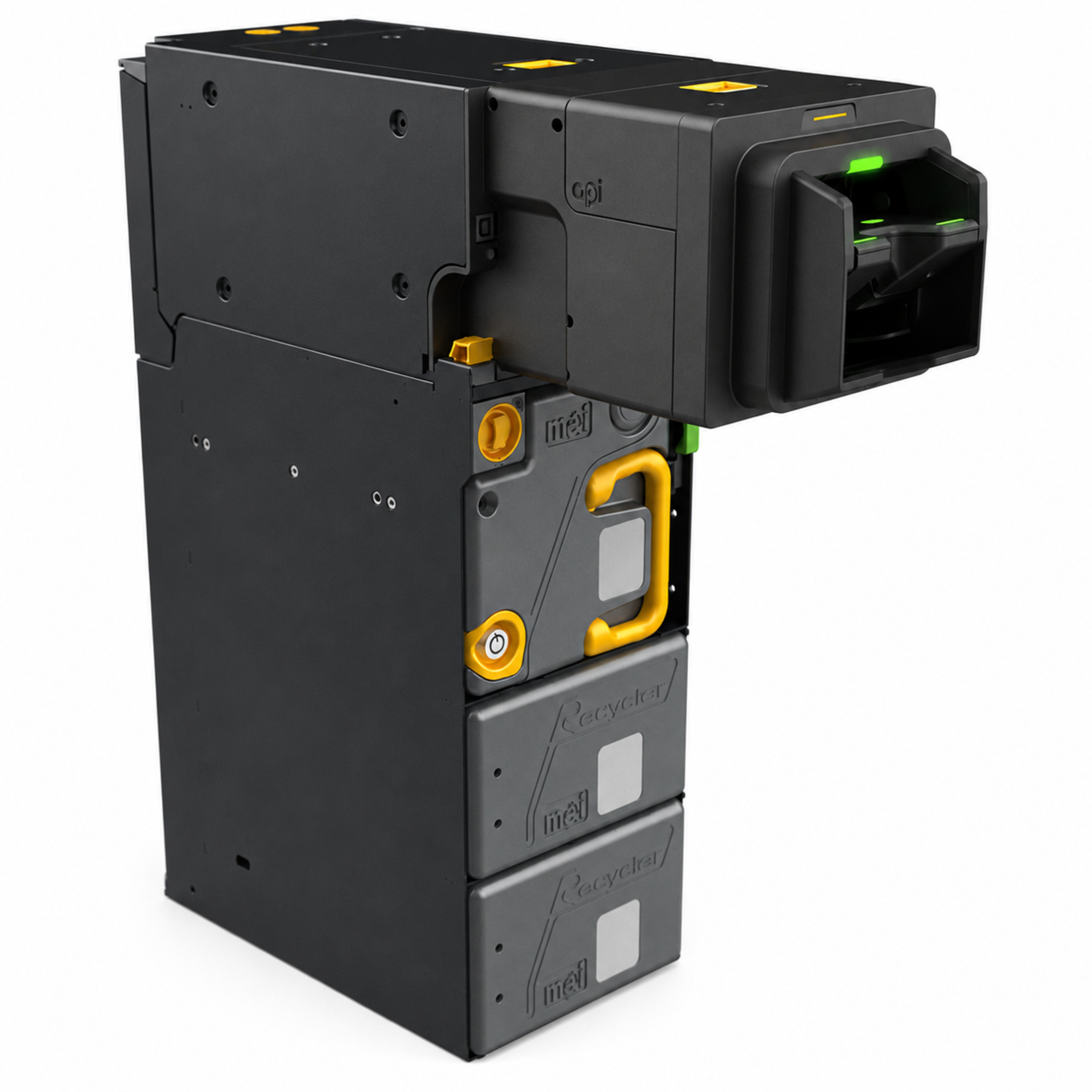

The MEI BNR BNF420 S Banknote Recycler Full Unit combines the Main Module B2 with a complete recycler chassis to provide secure banknote validation, recycling, dispensing, and cash management in a single integrated solution. Built on the BNR/BNF Advance platform, it supports multiple recycled denominations, advanced optical note recognition, USB communication, and remote software updates.
Key Features
- Full Unit Configuration
- Main Module B2 Included
- Integrated Recycler Chassis Included
- Advanced Banknote Validation
- Banknote Recycling Technology
- Optical Validation Sensors
- Supports Up To 6 Recycled Denominations
- Up To 150 Note Memory Capacity
- USB Communication Interface
- High Acceptance Accuracy
- Remote Firmware Updates
- Remote Software Updates
- Compact Installation Design
- Professional Cash Management Solution
- Secure Banknote Processing
- Reliable Transaction Performance
- Designed For Self-Service Applications
- Advanced Cash Recycling Platform
- Product Type: Banknote Recycler Full Unit
- Series: BNR/BNF Advance
- Configuration: BNR BNF420 S
- Main Module: B2
- Unit Type: Full Unit
- Interface: USB
- Note Validation Width: 60–83 mm
- Note Validation Length: 120–190 mm
- Recycled Denominations: Up To 6
- Note Memory Capacity: Up To 150 Notes (Four Ways)
- Validation Sensors: Optical Sensors
- Acceptance Rate: 98% Or Higher
- Operating Temperature: 0°C To 60°C
- Storage Temperature: -40°C To 70°C
- Operating Humidity: 15% To 95%
- Power Requirement: 24 VDC (-10% / +20%)
- Current Consumption (Standby): 0.5A
- Current Consumption (Accepting): 8A
- Firmware Updates: Remote Software Updates
- Compliance: UL / cUL Recognized Component To UL 756 And CSA 128
- CB Certification To IEC 60950
- Weight: Up To 25.7 kg (With Cashbox)
Technical Specifications
| Brand | Crane MEI |
| Voltage | 24v |
| Condition | New |
