Description

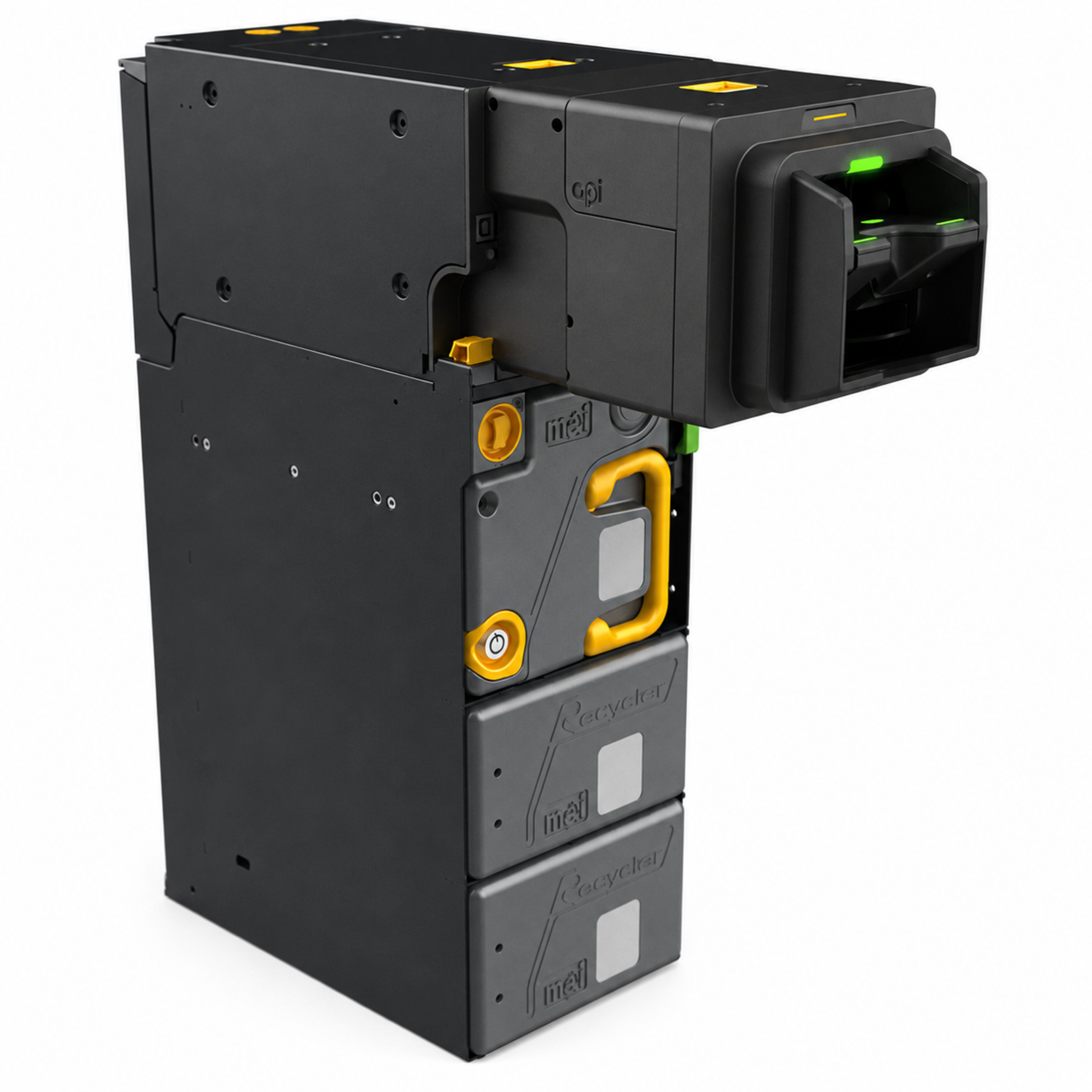

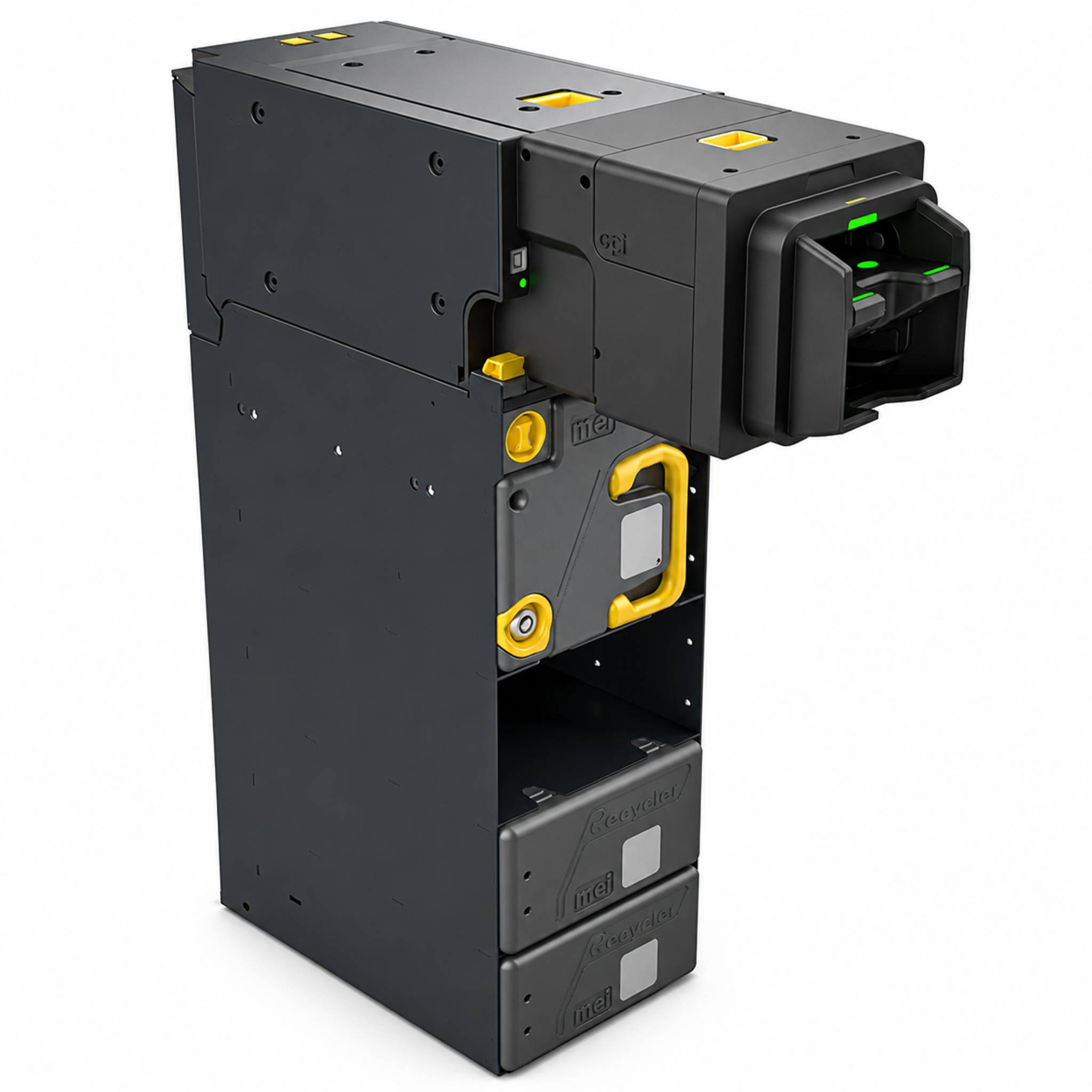

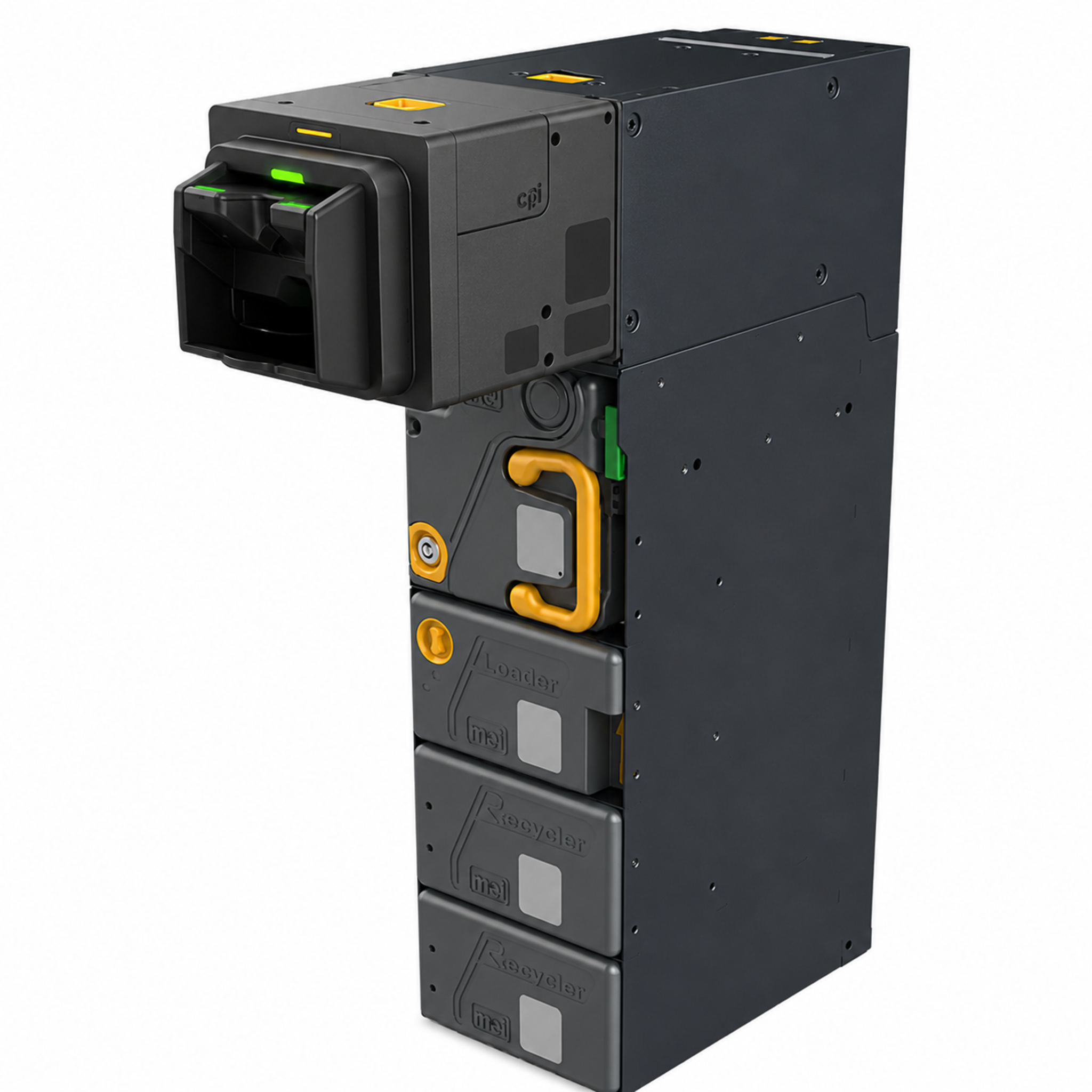

The MEI BNR BNF421 S Banknote Recycler Full Unit combines the Main Module B2 with a complete recycler chassis to provide an integrated cash management solution for retail and self-service payment environments. Designed for secure banknote validation, recycling, storage, and dispensing, the system supports multiple denominations, remote updates, and reliable cash handling performance.
Key Features
- Full Unit Configuration
- Main Module B2 Included
- Integrated Recycler Chassis Included
- Banknote Validation Technology
- Banknote Recycling Functionality
- Secure Cash Storage
- Supports Multiple Recycled Denominations
- USB Communication Interface
- Advanced Note Recognition
- Remote Firmware Updates
- Remote Configuration Updates
- Compact Installation Design
- Professional Cash Management Solution
- Reliable Cash Recycling Technology
- High Uptime Operation
- Designed For Self-Service Payment Systems
- Product Type: Banknote Recycler Full Unit
- Series: BNR/BNF Advance
- Configuration: BNR BNF421 S
- Main Module: B2
- Unit Type: Complete Integrated Recycler
- Interface: USB
- Note Validation Width: 60–83 mm
- Note Validation Length: 120–190 mm
- Recycled Denominations: Up To 6
- Note Memory Capacity: Up To 150 Notes, Four Ways
- Operating Temperature: 0°C To 60°C
- Storage Temperature: -40°C To 70°C
- Relative Humidity: 15% To 95%
- Firmware Updates: Remote Software Updates
- Validation Sensors: Optical Sensors
- Acceptance Rate: 98% Or Higher
- Voltage: 24 VDC (-10% / +20%)
- Current Consumption (Standby): 0.5A
- Current Consumption (Accepting): 8A
- Compliance: UL, cUL, IEC 60950 CB Certification
Technical Specifications
| Brand | Crane MEI |
| Voltage | 24v |
| Condition | New |
