Description

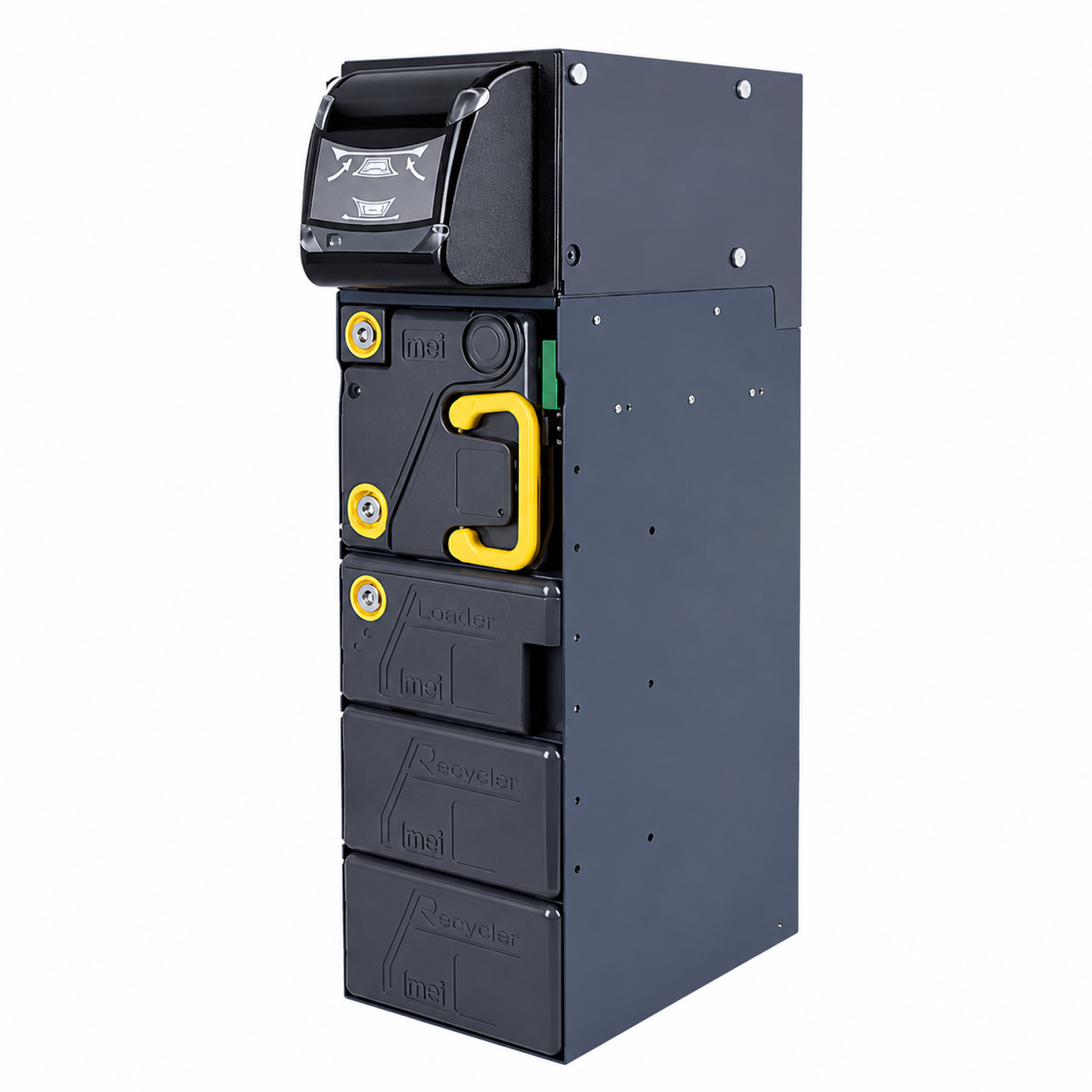

The MEI BNR320 M Chassis CB1400+2RE is a chassis assembly designed for the BNR Advance banknote recycler platform. Engineered to support secure cash management and banknote recycling systems, this chassis configuration provides the structural framework for compatible BNR Advance recycler modules and cash handling components.
Key Features
- Chassis Configuration
- CB1400 Cashbox Included
- 2 Recycler Modules Included
- BNR Advance Series
- Banknote Recycler Chassis Assembly
- Supports Up To 6 Recycled Denominations
- Optical Validation Sensors
- USB Communication Interface
- Remote Firmware Updates
- Remote Note Set Updates
- High Acceptance Accuracy
- Secure Cash Management
- Modular Architecture
- Closed-Loop Cash Recycling
- Genuine MEI Product
- Model: BNR320 M
- Product Type: Chassis Assembly
- Cashbox: CB1400
- Recycler Modules: 2RE
- Series: BNR Advance
- Dimensions (Closed): 604 mm × 165 mm × 275 mm
- Dimensions (Open): 604 mm × 165 mm × 336 mm
- Note Validation Range: 60–83 mm Width, 120–190 mm Length
- Interface Supported: USB
- Denominations Recycled: Up To 6
- Note Memory Capacity: Up To 150 Notes, Four Ways
- Operating Temperature: 0°C To 60°C
- Storage Temperature: -40°C To 70°C
- Operating Humidity: 15% To 95% Relative Humidity
- Firmware Updates: Remote Software Updates For Firmware And Note Sets
- Acceptance Rate: 98% Or Higher
- Power Requirements: 24VDC (-10% / +20%)
- Current Consumption:
- Standby: 0.5A
- Accepting: 8A
- Validation Sensors: Optical Sensors
Technical Specifications
| Brand | Crane MEI |
| Voltage | 24v |
| Stacker Capacity | 1400 Bills |
| Condition | New |
