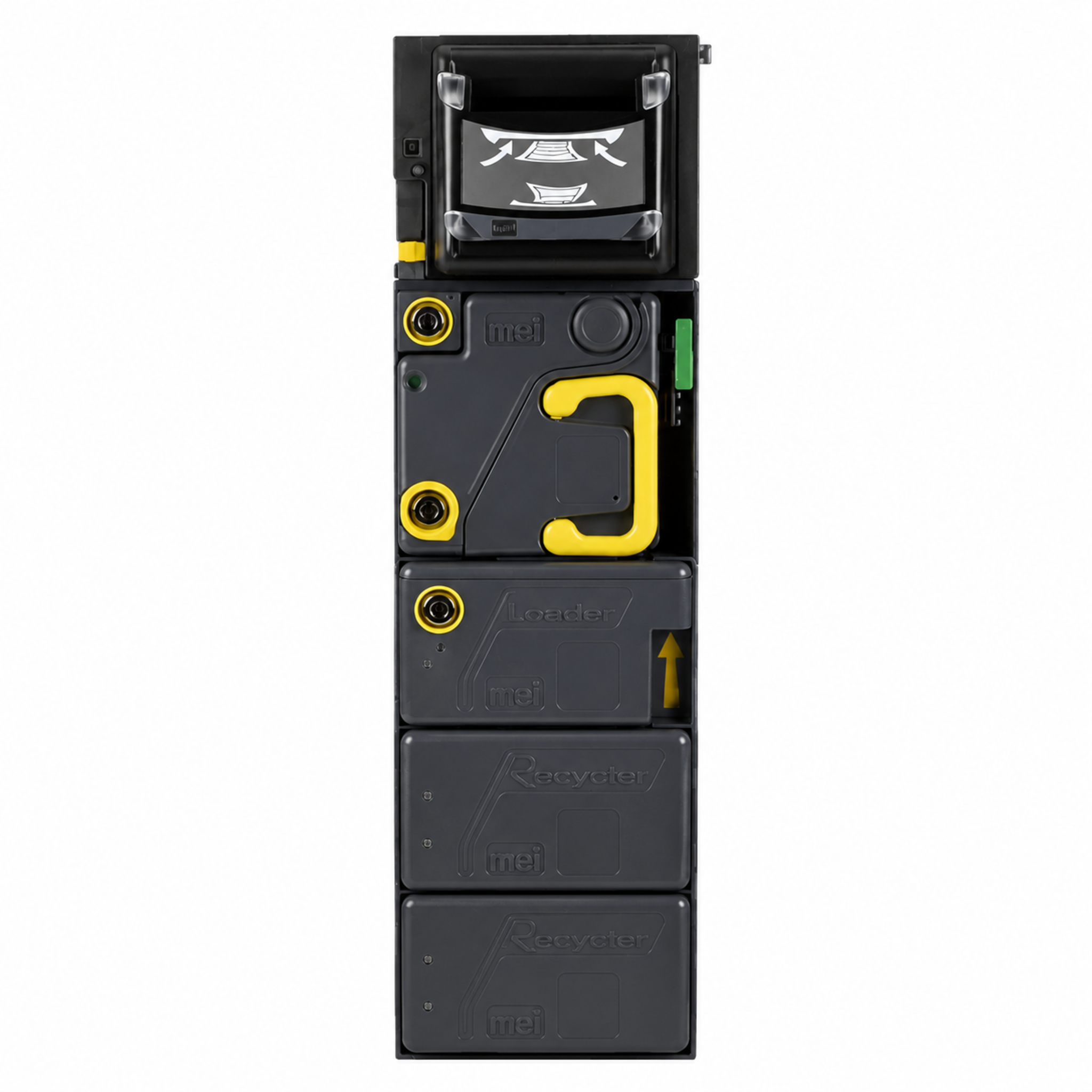

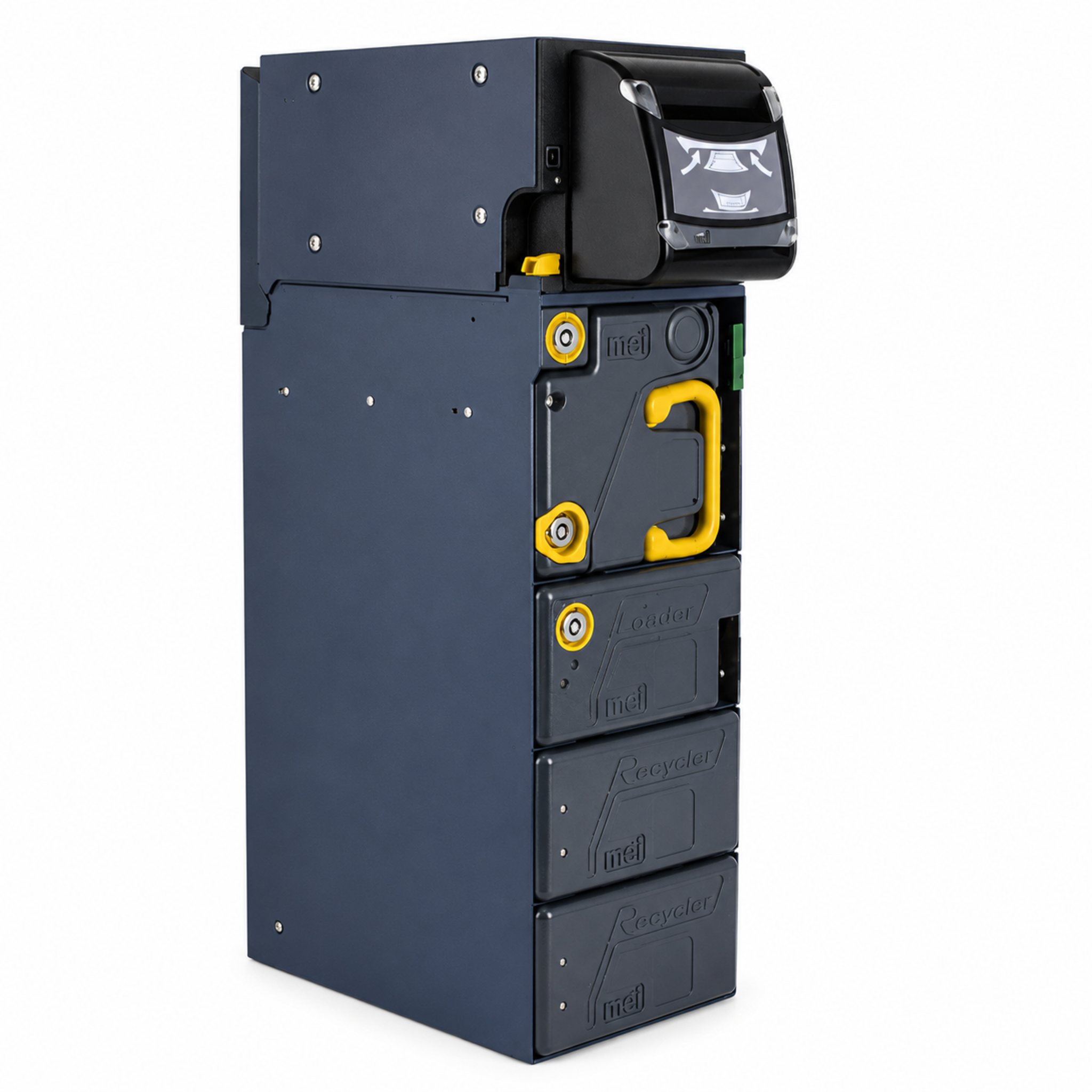

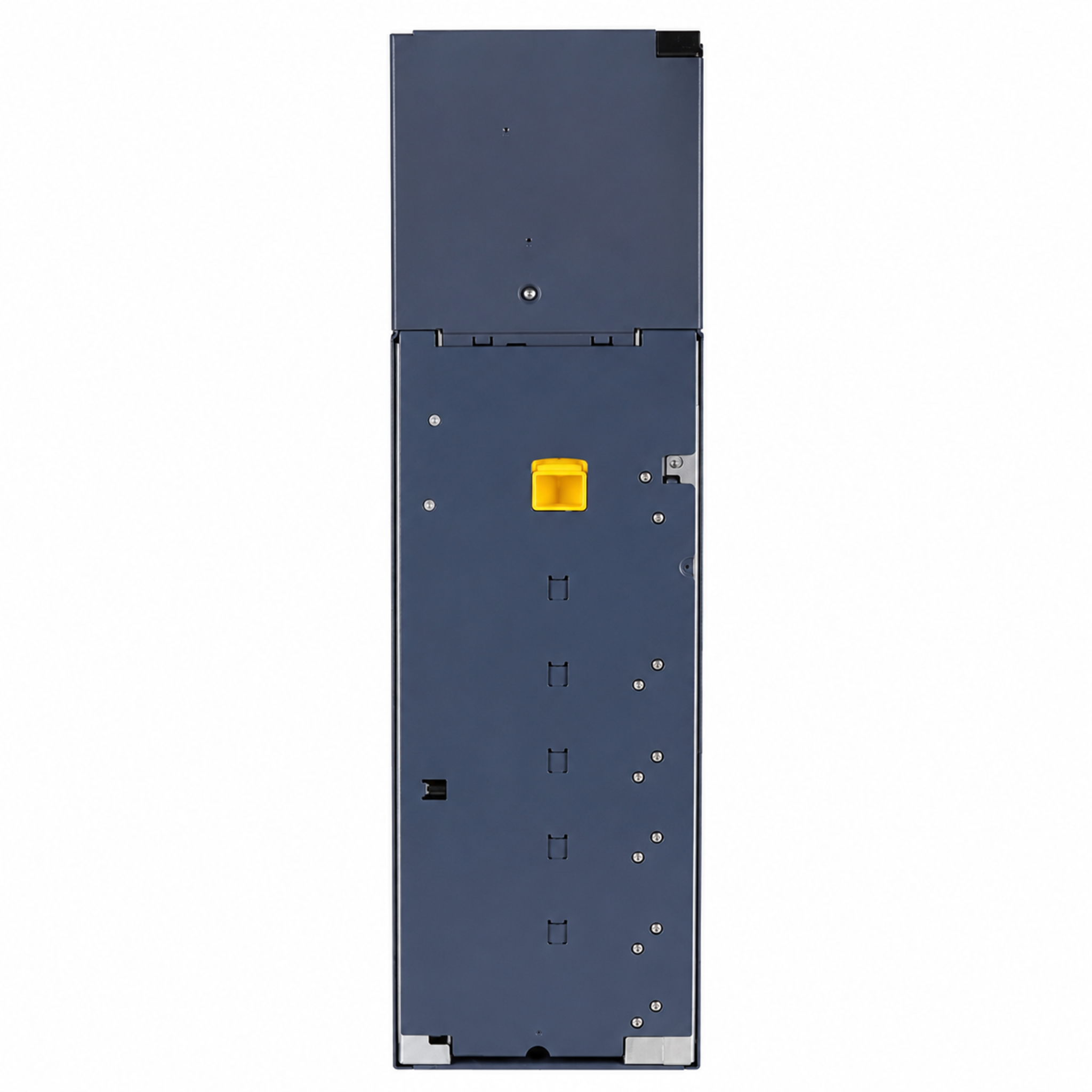

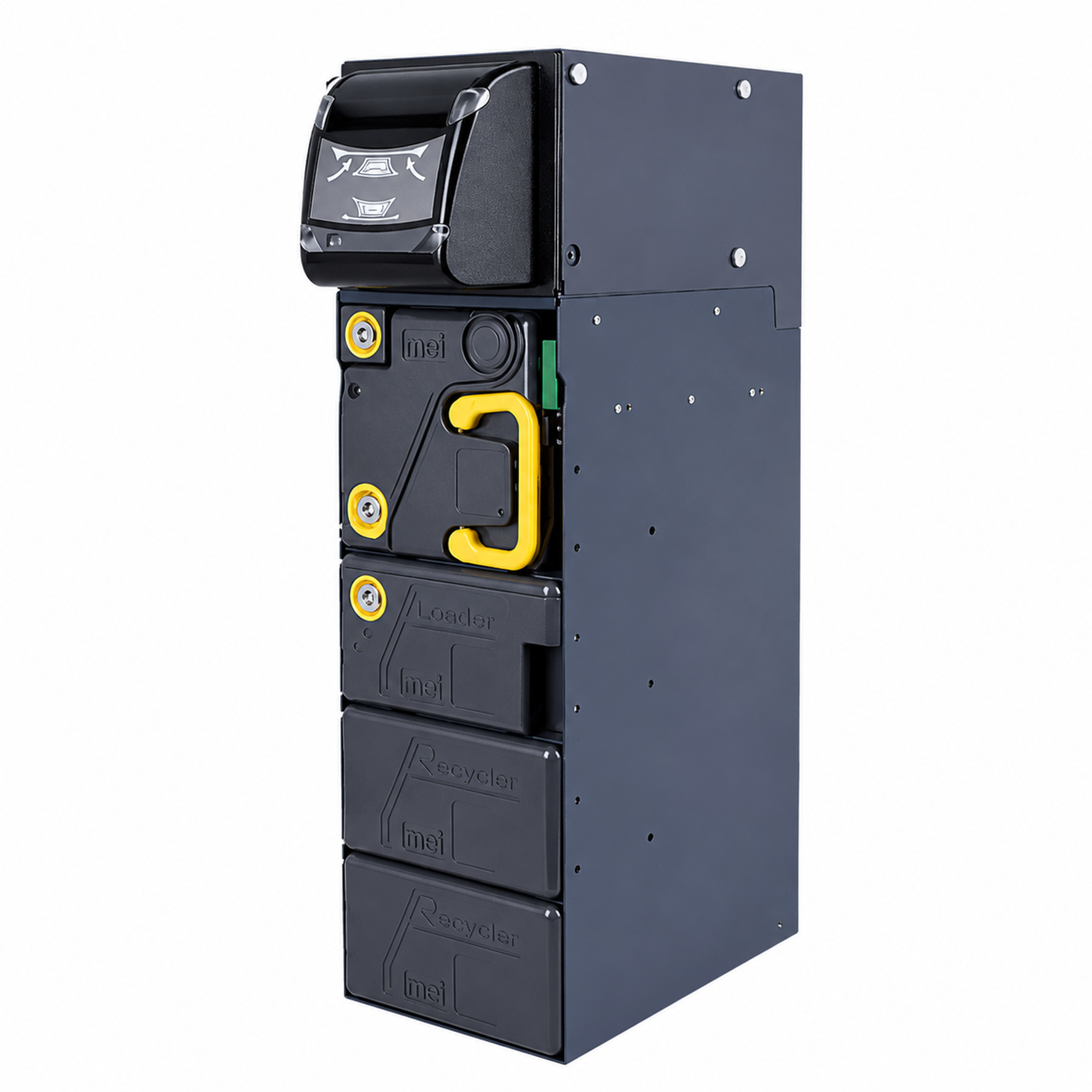

MEI BNR320 M Full Unit Main Module B2 with Chassis Banknote Recycler

The MEI BNR320 M Full Unit is a complete BNR Advance banknote recycler system consisting of the Main Module B2 and Chassis assembly. Designed for secure cash management, advanced banknote validation, and reliable recycling operations, it provides high-performance cash handling for professional payment environments.

Key Features

• Full Unit Configuration
• Main Module B2
• Chassis Assembly
• BNR Advance Series
• Banknote Recycler System
• Supports Up To 6 Recycled Denominations
• Optical Validation Sensors
• USB Communication Interface
• Remote Firmware Updates
• Remote Note Set Updates
• High Acceptance Accuracy
• Secure Cash Management
• Modular Architecture
• Closed-Loop Cash Recycling
• Genuine MEI Product
• Model: BNR320 M
• Product Type: Full Unit
• Main Module: B2
• Assembly: Chassis
• Series: BNR Advance
• Dimensions (Closed): 604 mm × 165 mm × 275 mm
• Dimensions (Open): 604 mm × 165 mm × 336 mm
• Note Validation Range: 60–83 mm Width, 120–190 mm Length
• Interface Supported: USB
• Denominations Recycled: Up To 6
• Note Memory Capacity: Up To 150 Notes, Four Ways
• Operating Temperature: 0°C To 60°C
• Storage Temperature: -40°C To 70°C
• Operating Humidity: 15% To 95% Relative Humidity
• Firmware Updates: Remote Software Updates For Firmware And Note Sets
• Acceptance Rate: 98% Or Higher
• Power Requirements: 24VDC (-10% / +20%)
• Current Consumption:
  • Standby: 0.5A
  • Accepting: 8A
• Validation Sensors: Optical Sensors
