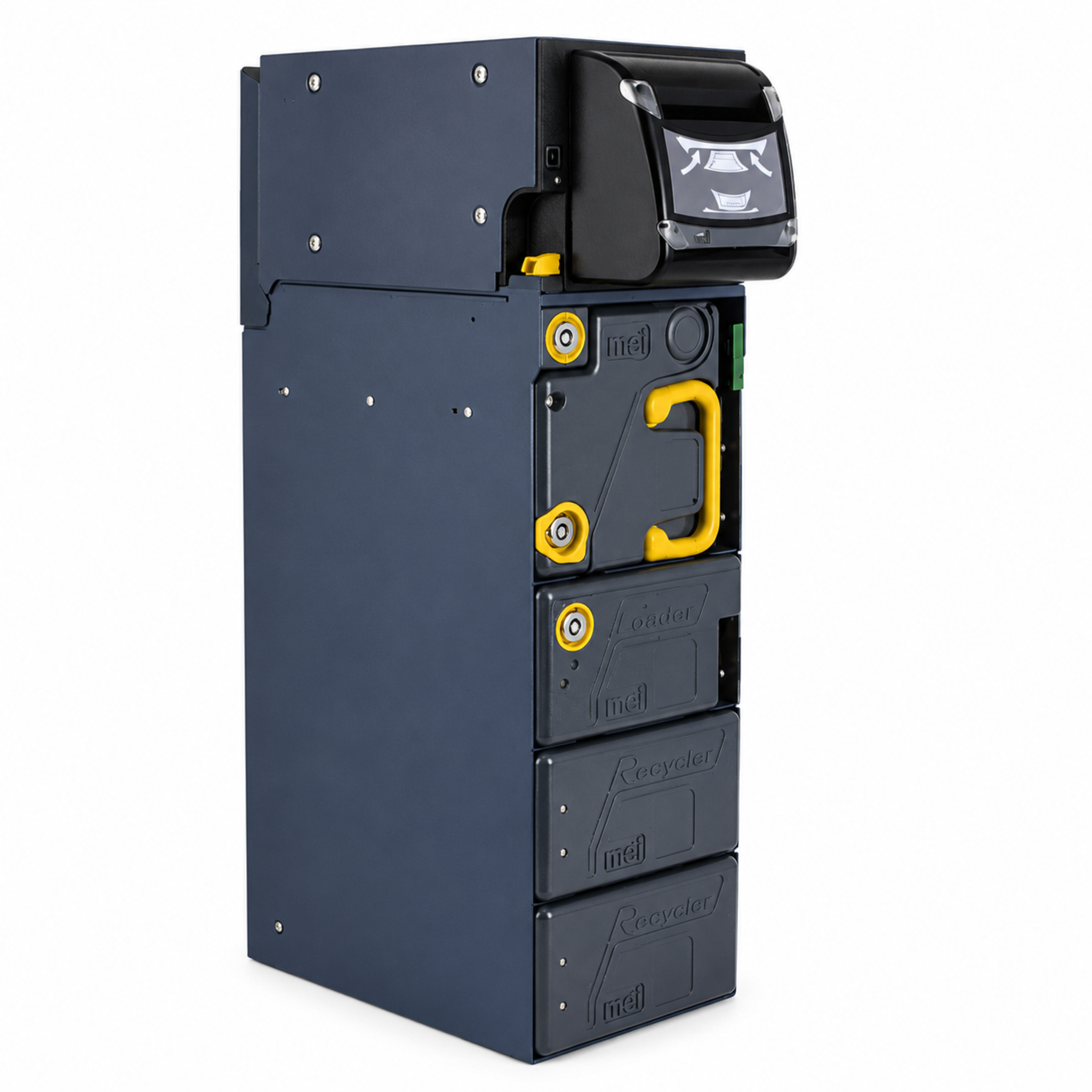

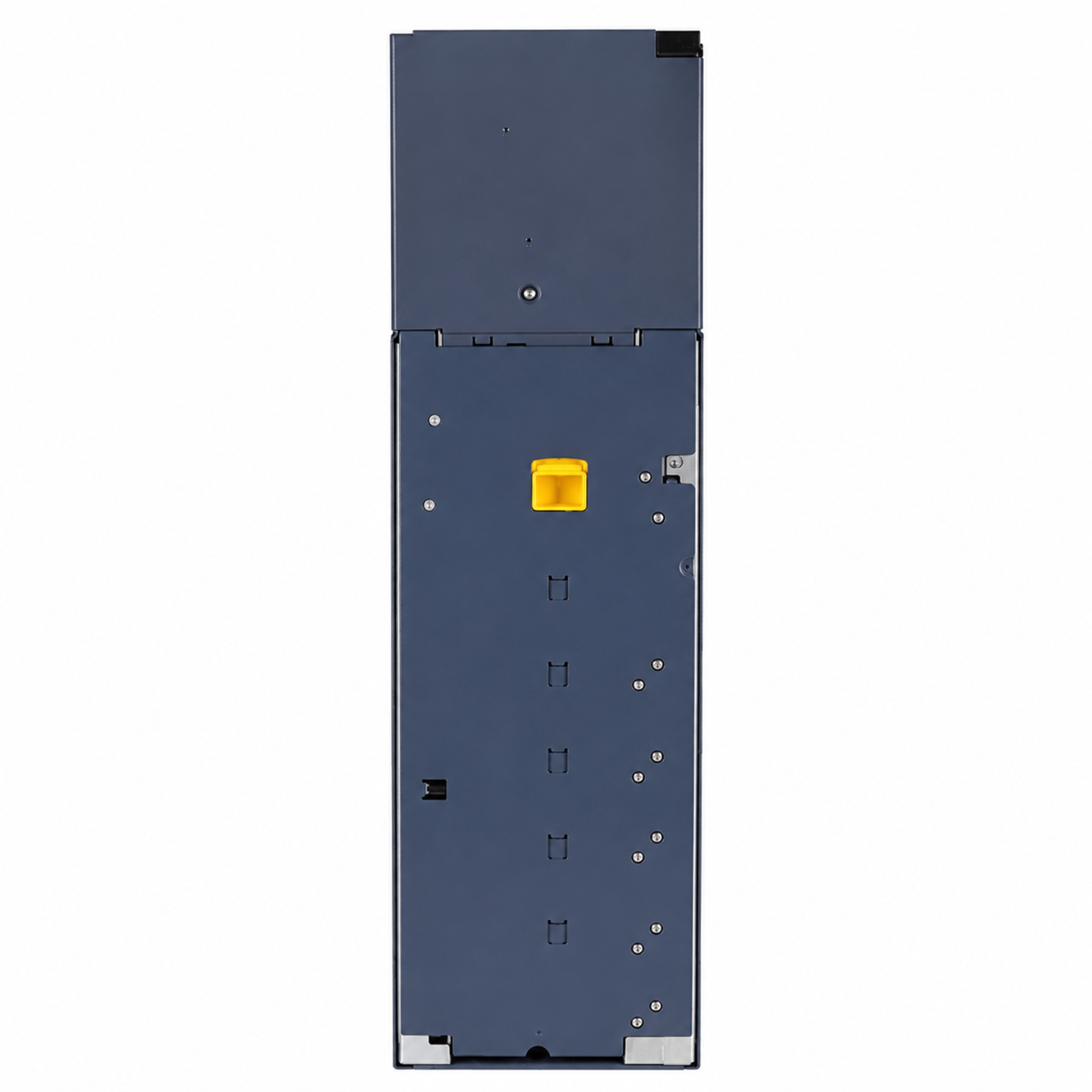

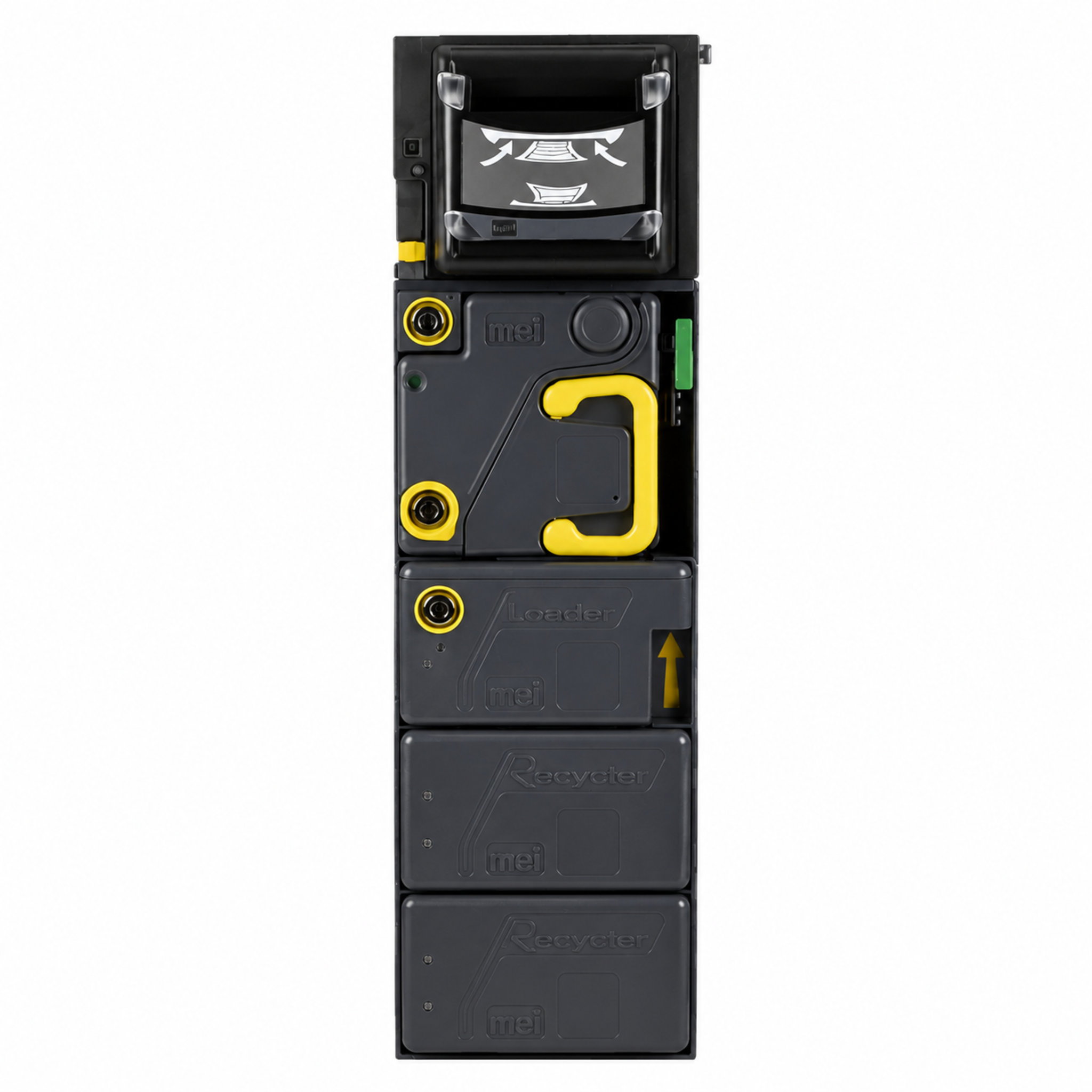

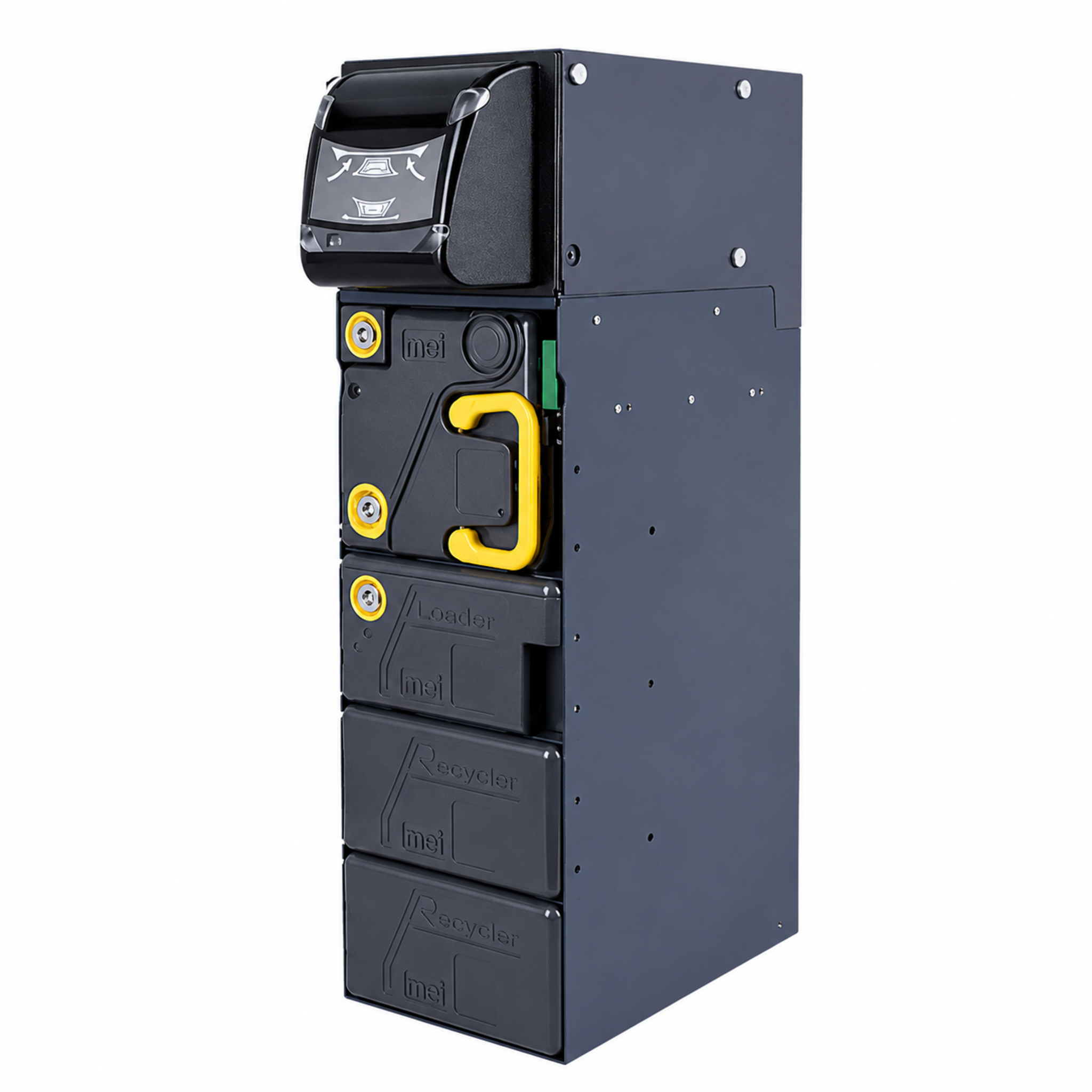

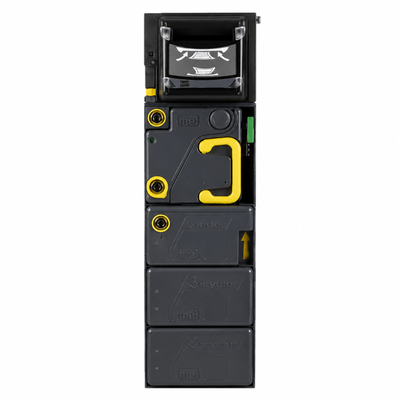

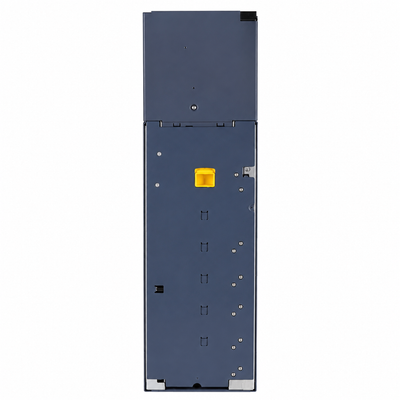

MEI BNR421 S BNR Advance Banknote Recycler Main Module B2 with Plastic Bezel B2

The MEI BNR421 S BNR Advance Banknote Recycler Main Module B2 with Plastic Bezel B2 is a secure cash management solution designed for self-checkout, retail payment, financial services, and transport applications. Featuring advanced banknote validation, USB connectivity, remote firmware updates, and a compact modular design, it provides reliable banknote recycling and cash handling performance.

Key Features

• Banknote Recycler
• Main Module B2 Configuration
• Plastic Bezel B2
• Advanced banknote validation
• Optical validation sensors
• USB interface
• Remote firmware updates
• Compact modular design
• Secure cash management
• High acceptance accuracy
• Designed for professional payment applications
• BNR Advance Series

Dimensions (H × W × D)

• Closed: 604 mm × 165 mm × 275 mm
• Open: 604 mm × 165 mm × 336 mm

Note Validation

• Note Width: 60 mm to 83 mm
• Note Length: 120 mm to 190 mm
• Validation Sensors: Optical Sensors
• Acceptance Rate: 98% or Higher

Interface

• USB

Environmental Specifications

• Operating Temperature: 0°C to 60°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 15% to 95% Relative Humidity

Electrical Specifications

• Power Requirement: 24V DC (-10% / +20%)
• Current Consumption (Standby): 0.5A
• Current Consumption (Accepting): 8A

Weight

• Up to 25.7 kg (with Cashbox)

Compliance

• UL / cUL Recognized Component to UL 756 and CSA 128
• CB Certification to IEC 60950

Applications

• Self-Checkout Applications
• Retail Payment Applications
• Financial Services Applications
• Transport Market Applications

Included Configuration

• BNR421 S Main Module B2
• Plastic Bezel B2

Important Information

• Genuine MEI Product
• BNR Advance Series
• Main Module B2 Configuration
• Plastic Bezel B2 Included
• USB Connectivity
• Optical Validation Sensors
• Remote Firmware Update Support
