Description

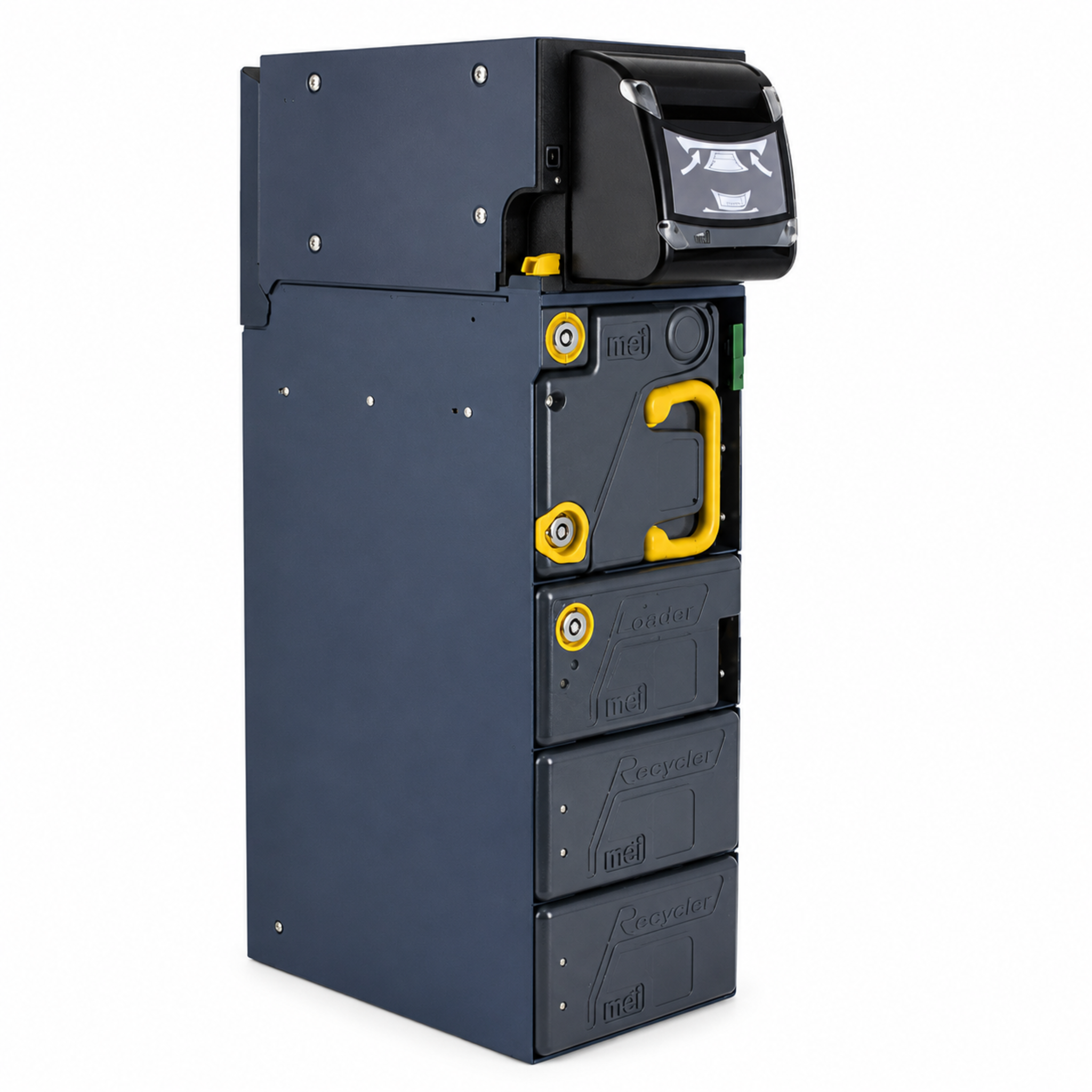

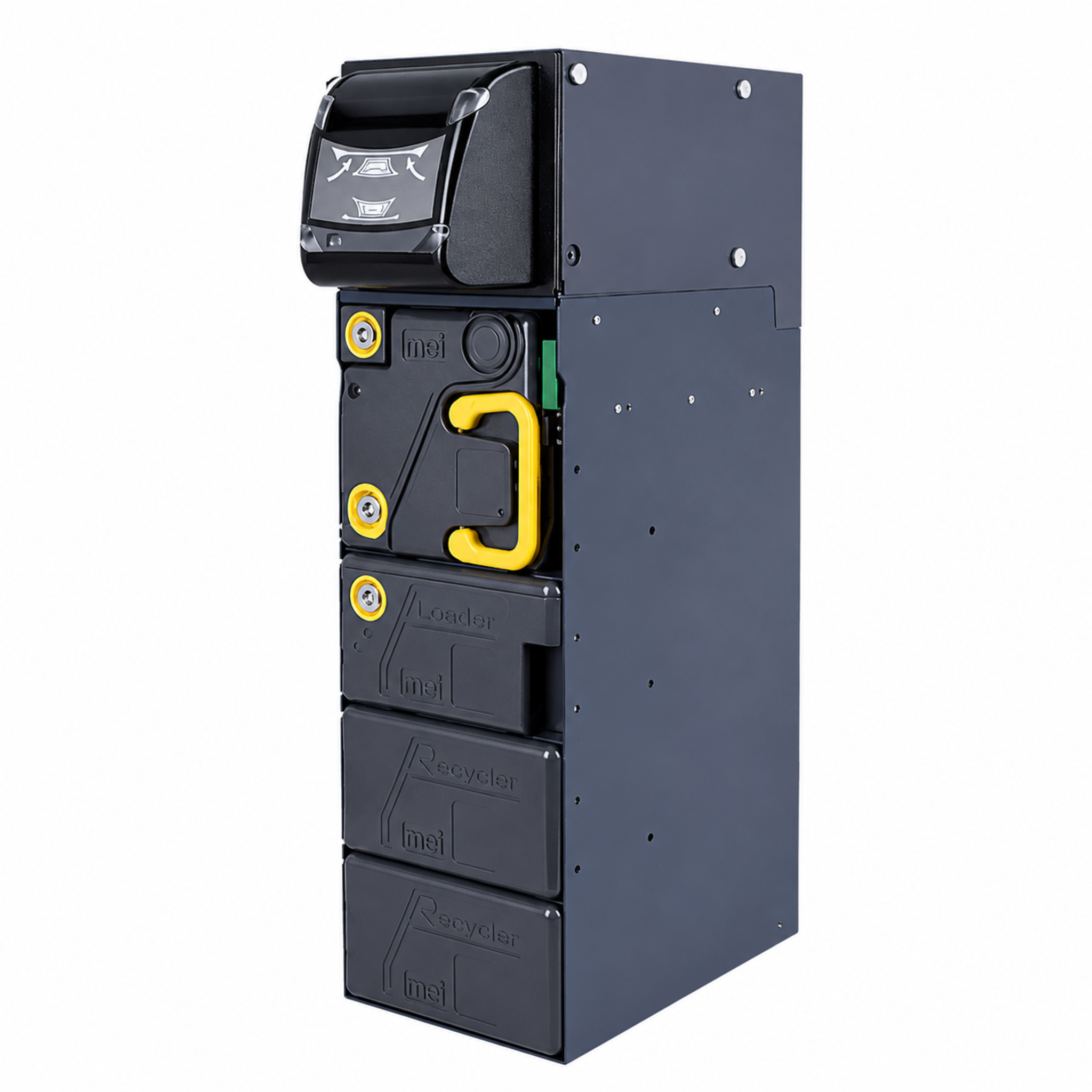

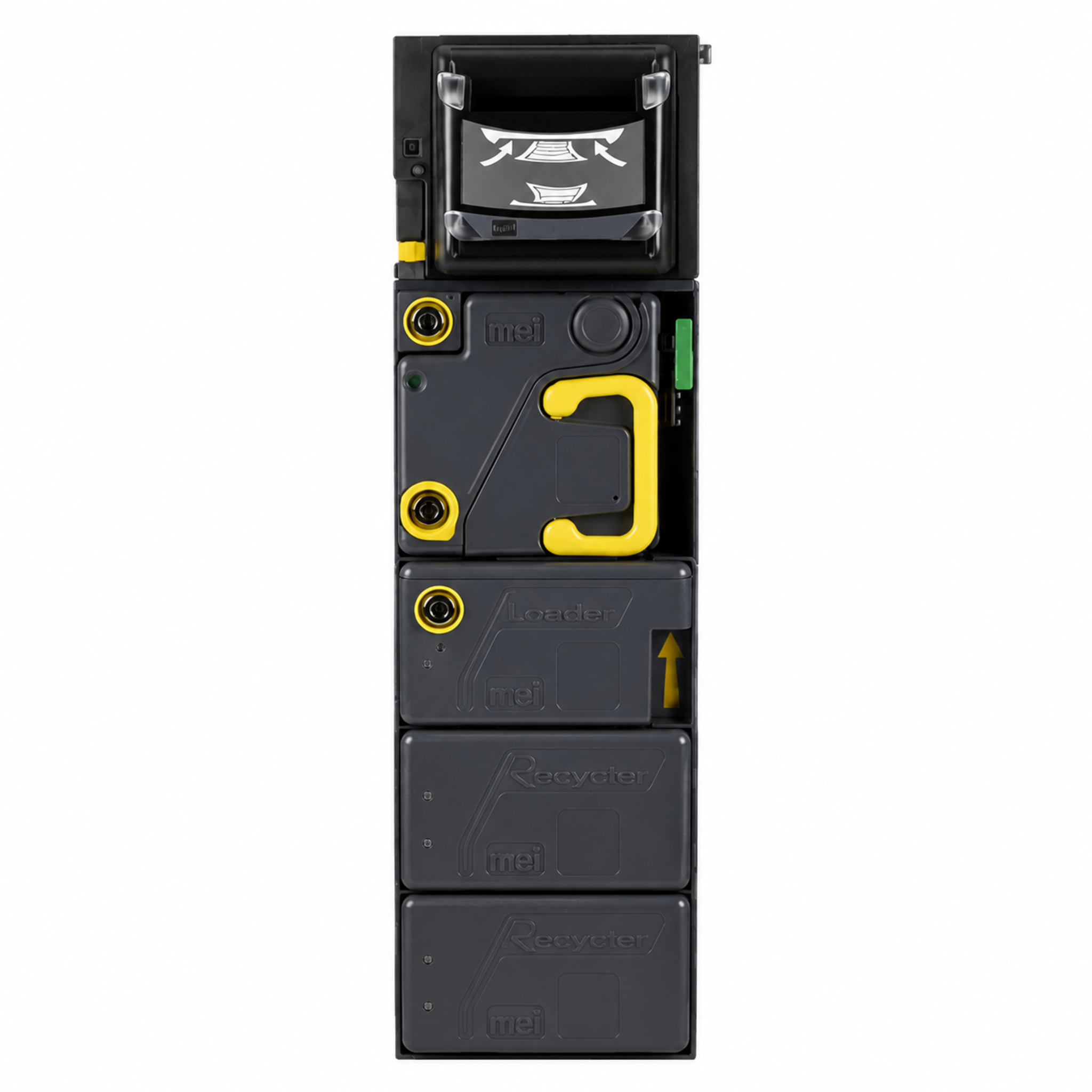

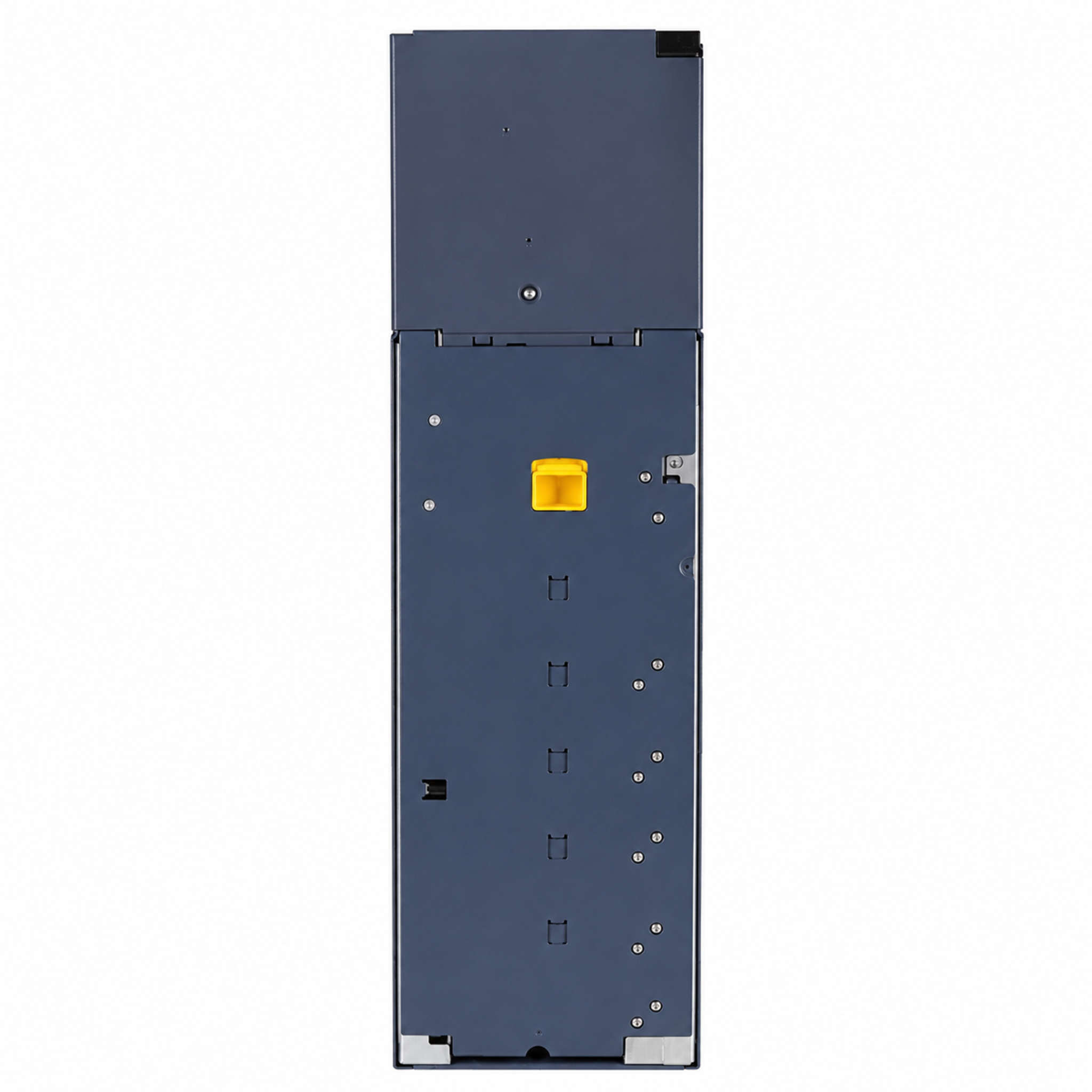

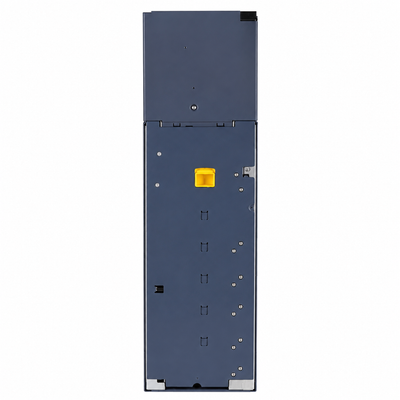

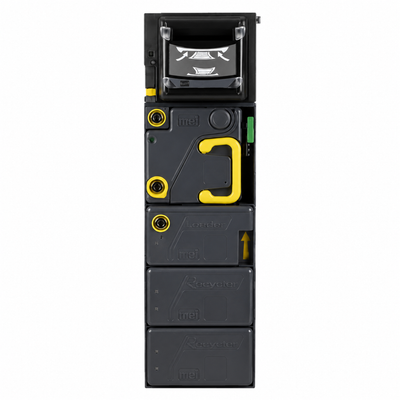

The MEI BNR430 S Full Unit is a complete BNR Advance banknote recycler assembly consisting of the Main Module B2 and Chassis. Designed for secure cash management and advanced banknote recycling, it features optical note validation, USB connectivity, remote firmware updates, and support for up to six recycled denominations.
Key Features
- Full Unit Configuration
- Main Module B2 Included
- Chassis Assembly Included
- BNR Advance Series
- Banknote Recycler System
- Supports Up To 6 Recycled Denominations
- Optical Validation Sensors
- USB Communication Interface
- Remote Firmware Updates
- Remote Note Set Updates
- High Acceptance Accuracy
- Secure Cash Management
- Intelligent Note Recognition
- Modular Design
- Closed-Loop Cash Recycling
- Genuine MEI Product
- Model: BNR430 S
- Product Type: Full Unit
- Main Module: B2
- Assembly: Chassis
- Chassis Configuration: CB600+3RE
- Series: BNR Advance
- Brand: MEI
- Dimensions (Closed): 604 mm × 165 mm × 275 mm
- Dimensions (Open): 604 mm × 165 mm × 336 mm
- Note Validation Range: 60–83 mm Width, 120–190 mm Length
- Interface Supported: USB
- Denominations Recycled: Up To 6
- Note Memory Capacity: Up To 150 Notes, Four Ways
- Operating Temperature: 0°C To 60°C
- Storage Temperature: -40°C To 70°C
- Operating Humidity: 15% To 95% Relative Humidity
- Firmware Updates: Remote Software Updates For Firmware And Note Sets
- Acceptance Rate: 98% Or Higher
- Power Requirements: 24VDC (-10% / +20%)
- Current Consumption:
- Standby: 0.5A
- Accepting: 8A
- Validation Sensors: Optical Sensors
Technical Specifications
| Brand | Crane MEI |
| Voltage | 24v |
| Condition | New |
