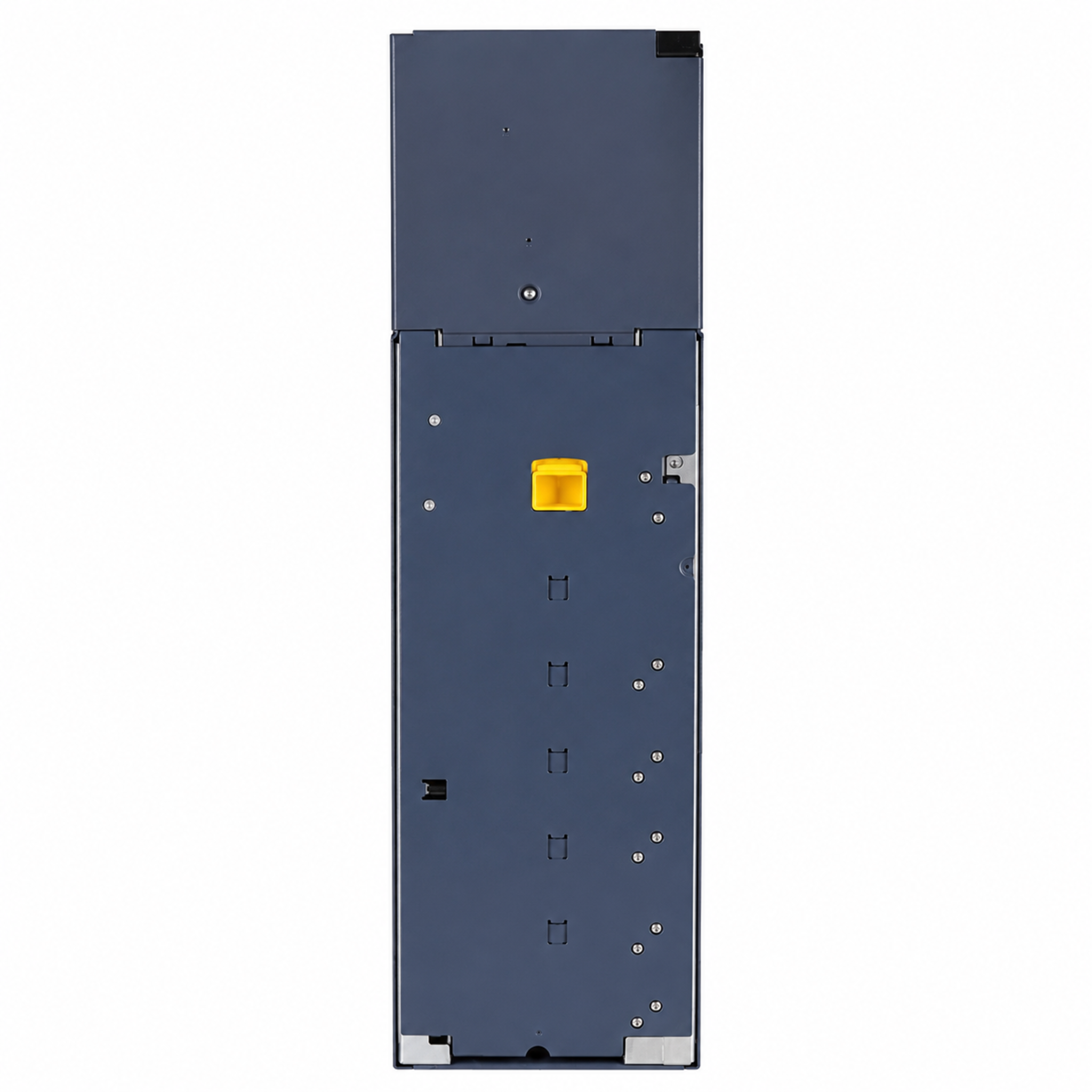

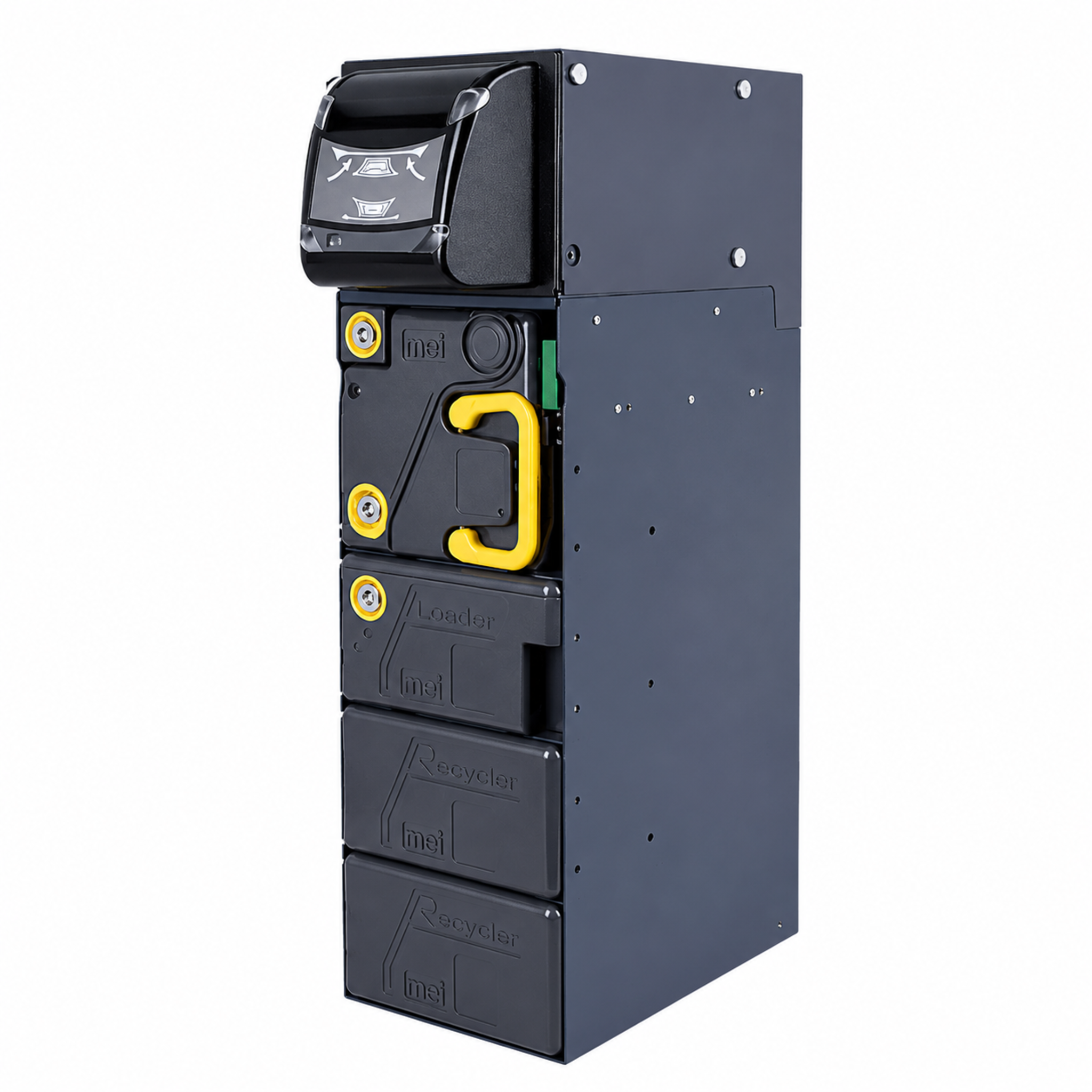

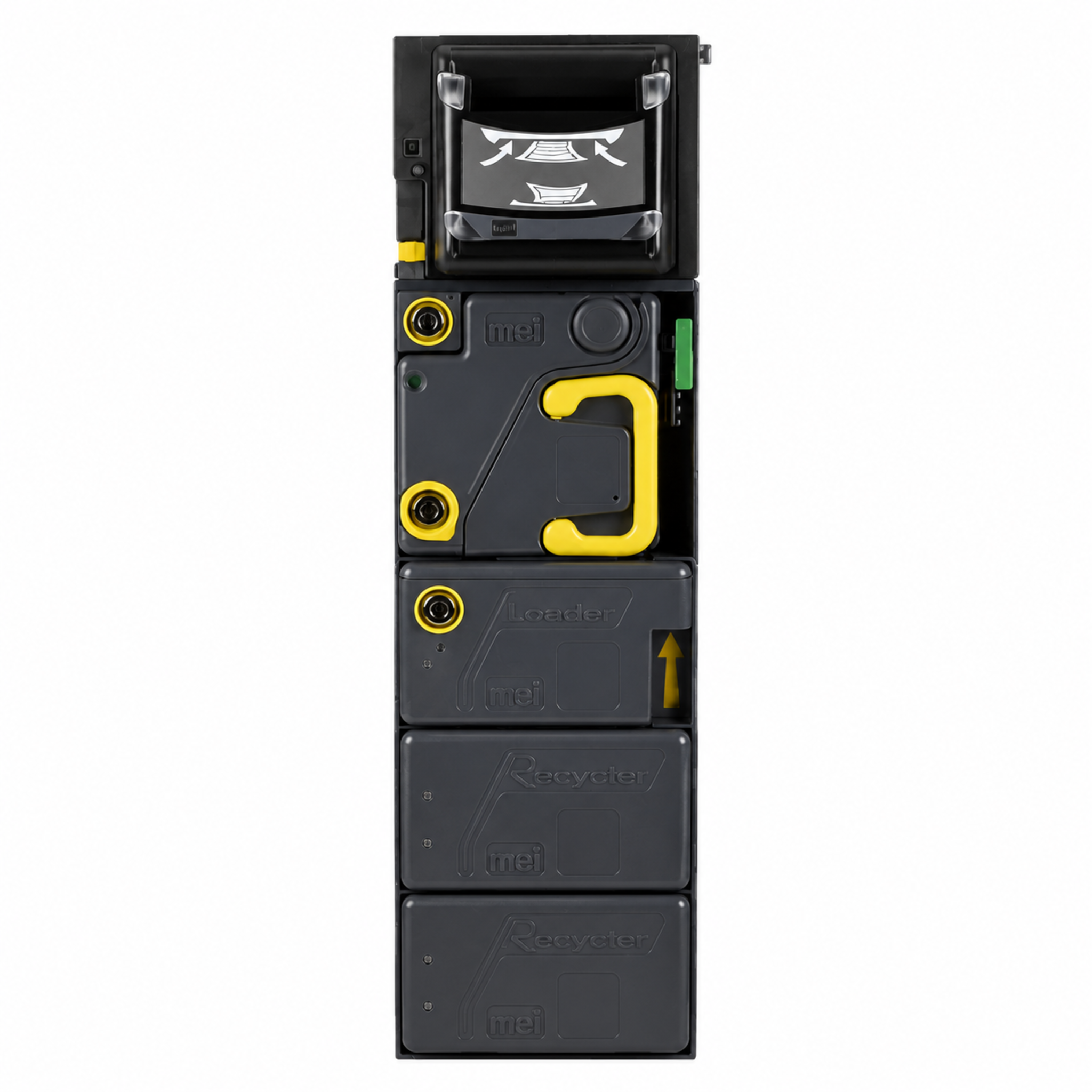

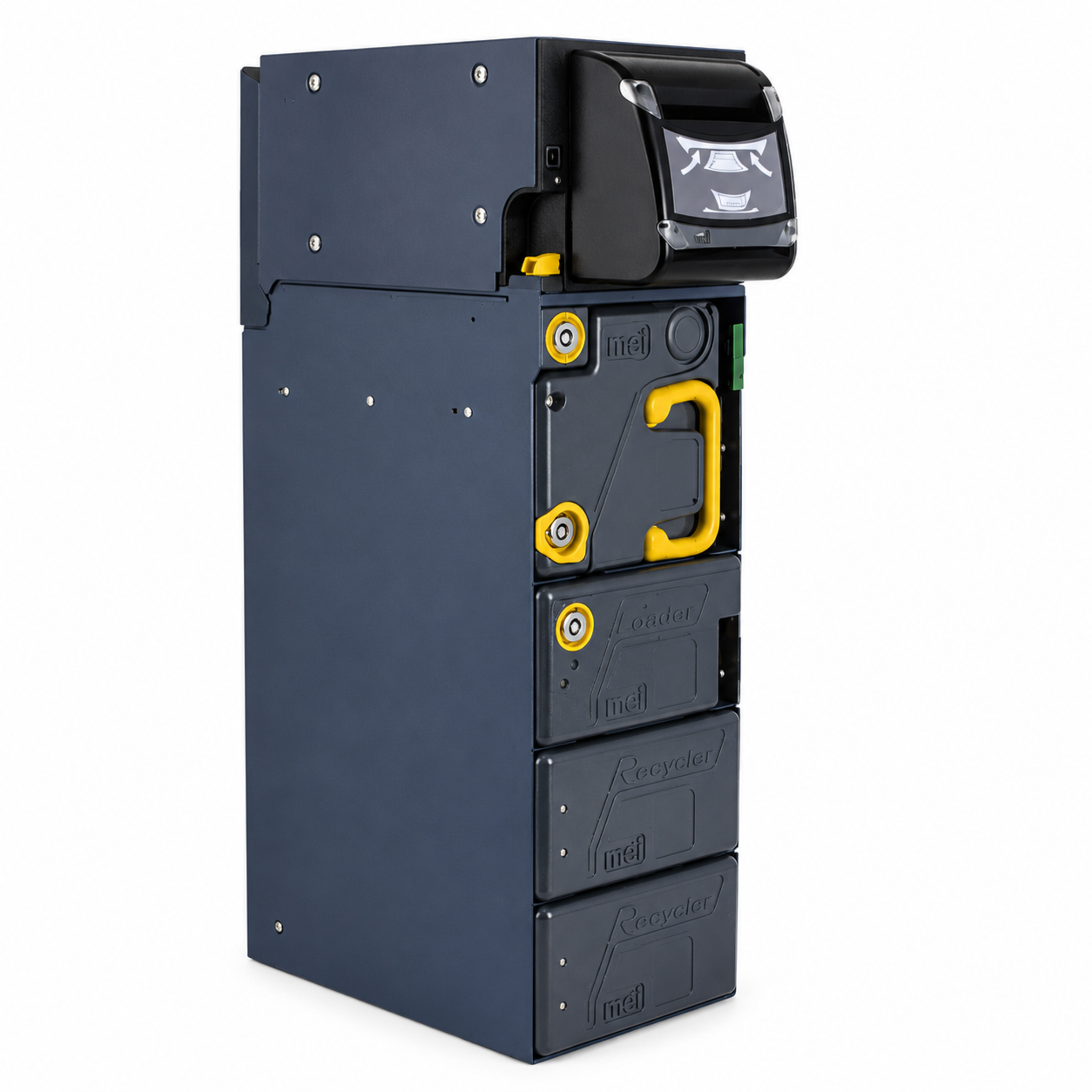

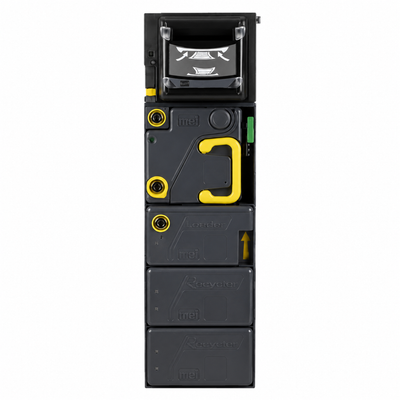

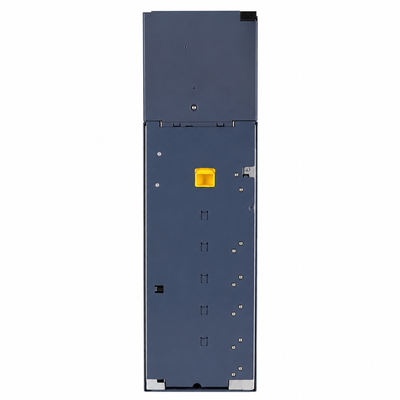

MEI BNR430 S Main Module B2 with Plastic Bezel B2 Banknote Recycler

The MEI BNR430 S Main Module B2 with Plastic Bezel B2 is a banknote recycler module from the BNR Advance series designed for secure note validation, cash recycling, and advanced cash management applications. Featuring optical validation technology, USB connectivity, remote firmware updates, and support for up to six recycled denominations, it delivers reliable performance in demanding payment environments.

Key Features

• Main Module B2 Configuration
• Plastic Bezel B2 Included
• BNR Advance Series
• Banknote Recycler Module
• Supports Up To 6 Recycled Denominations
• Optical Validation Sensors
• USB Communication Interface
• Remote Firmware Updates
• Remote Note Set Updates
• High Acceptance Accuracy
• Secure Cash Management
• Intelligent Note Recognition
• Modular Design
• Closed-Loop Cash Recycling
• Genuine MEI Product
• Model: BNR430 S
• Product Type: Main Module
• Main Module: B2
• Bezel: Plastic Bezel B2
• Series: BNR Advance
• Brand: MEI
• Note Validation Range: 60–83 mm Width, 120–190 mm Length
• Interface Supported: USB
• Denominations Recycled: Up To 6
• Note Memory Capacity: Up To 150 Notes, Four Ways
• Operating Temperature: 0°C To 60°C
• Storage Temperature: -40°C To 70°C
• Operating Humidity: 15% To 95% Relative Humidity
• Firmware Updates: Remote Software Updates For Firmware And Note Sets
• Acceptance Rate: 98% Or Higher
• Power Requirements: 24VDC (-10% / +20%)
• Current Consumption:
  • Standby: 0.5A
  • Accepting: 8A
• Validation Sensors: Optical Sensors
