Description

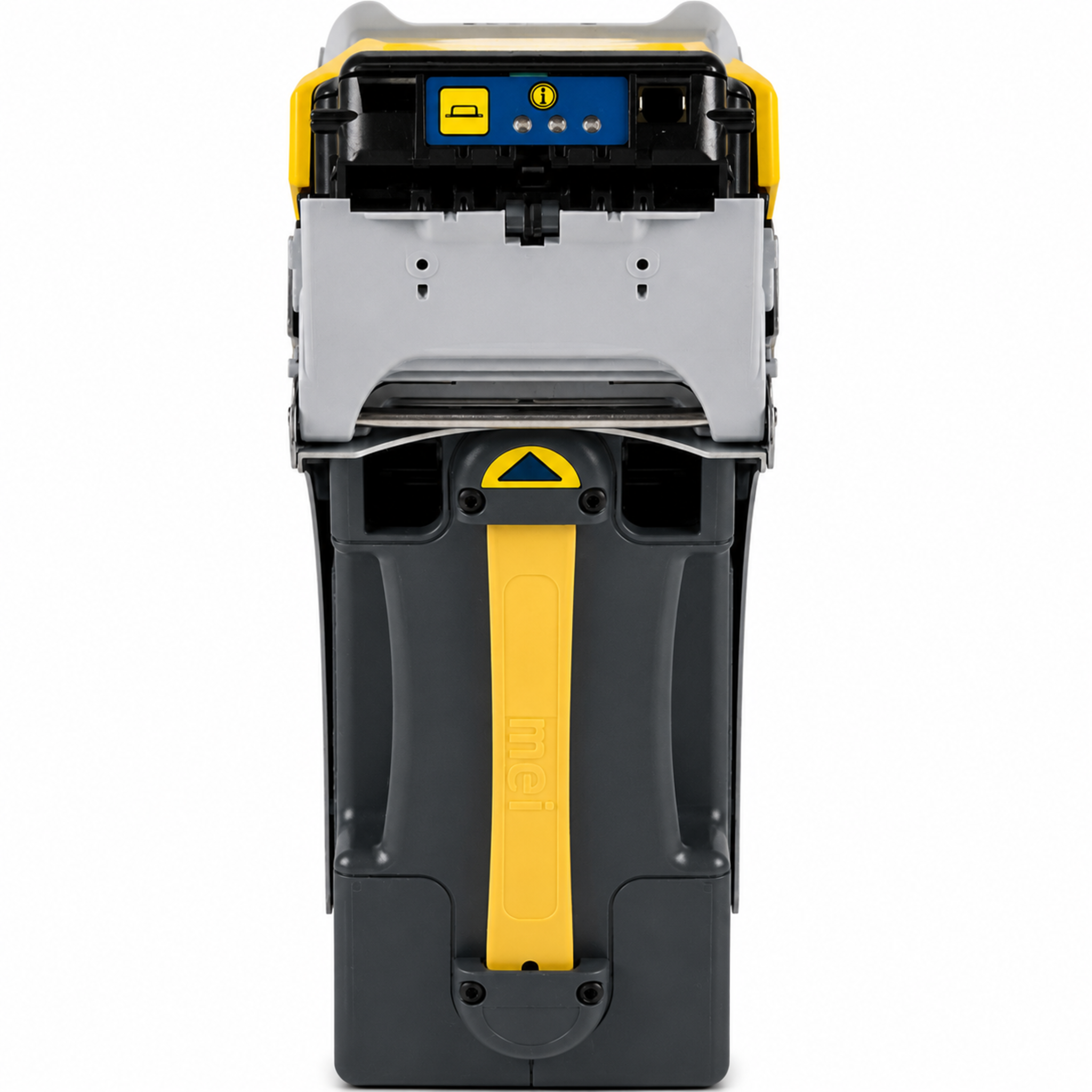

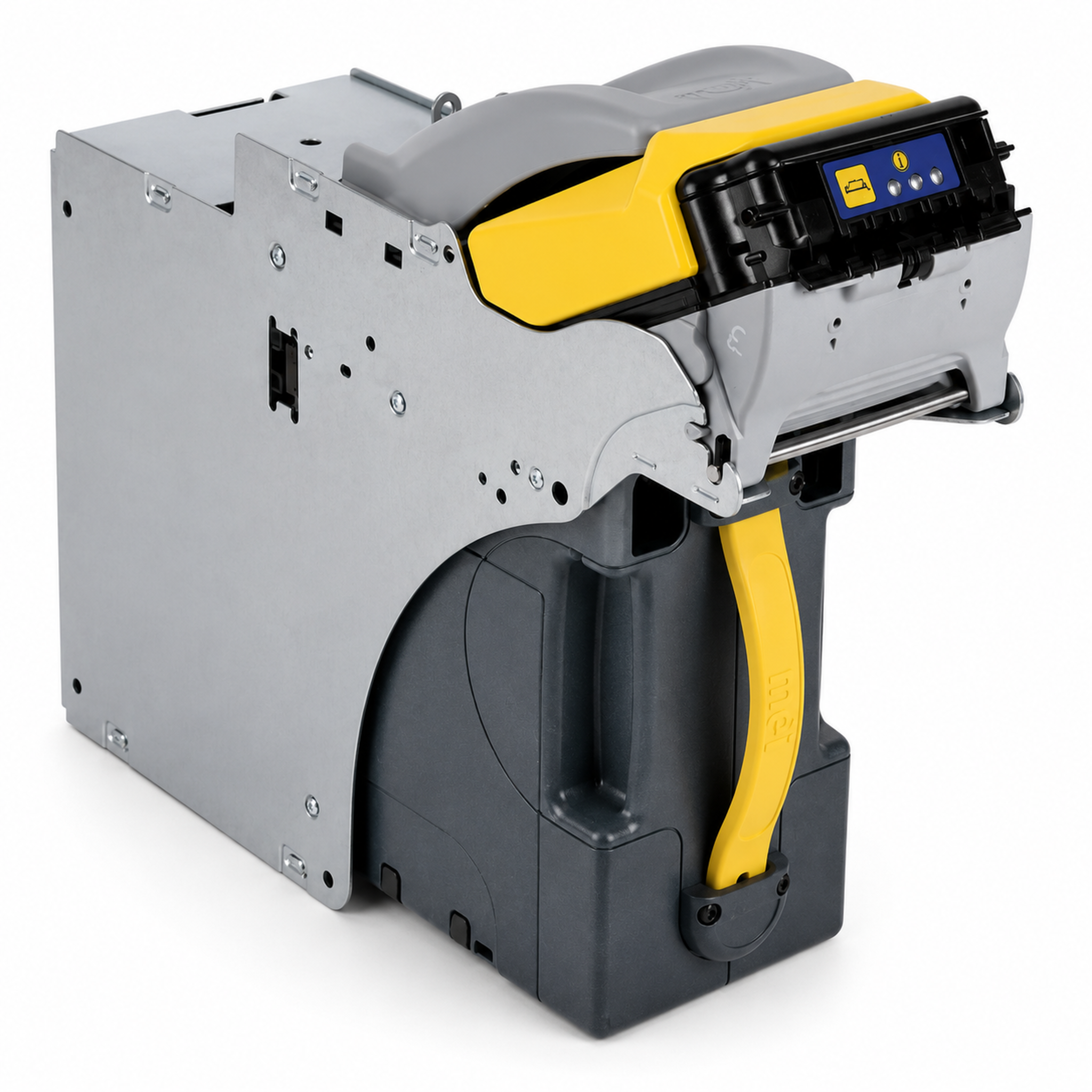

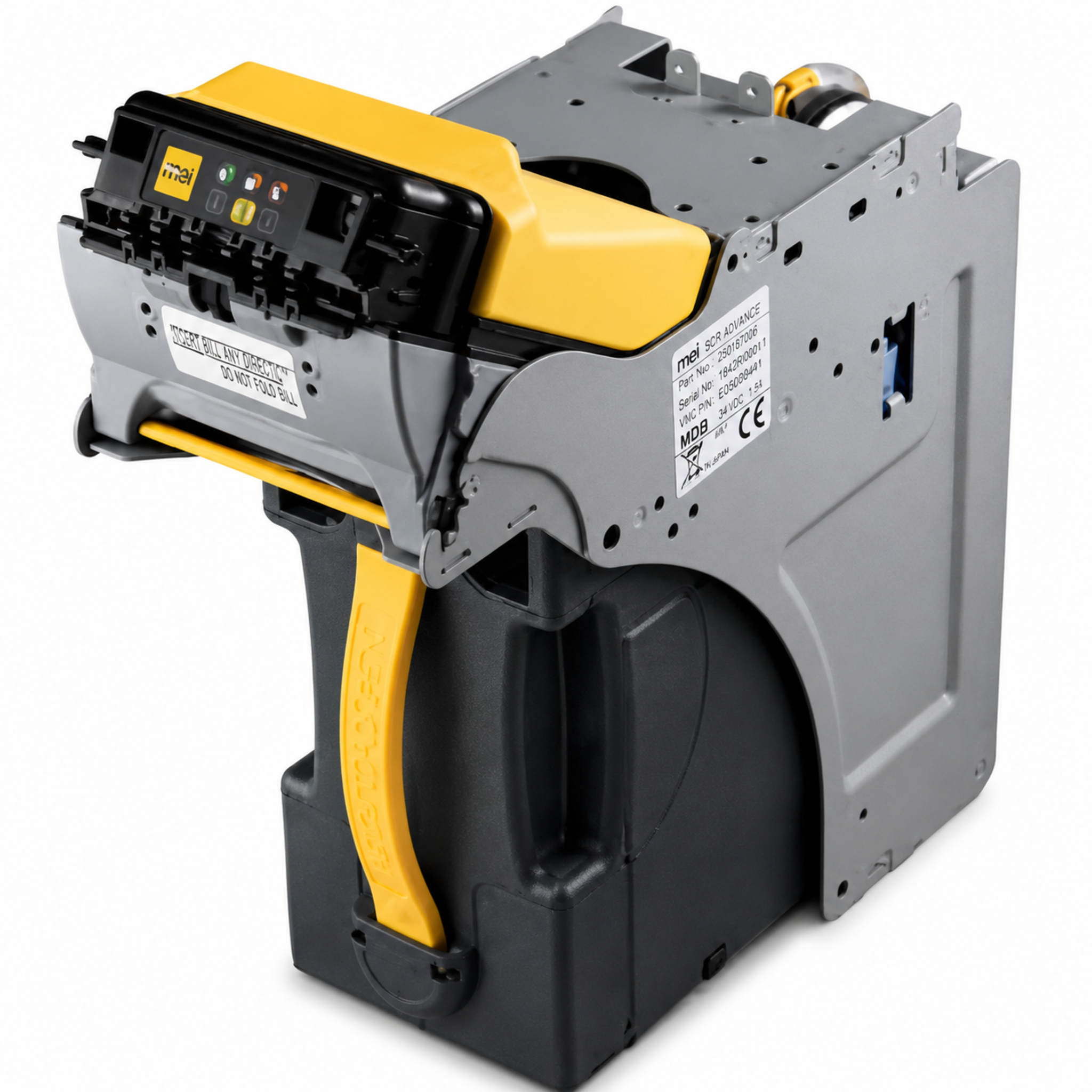

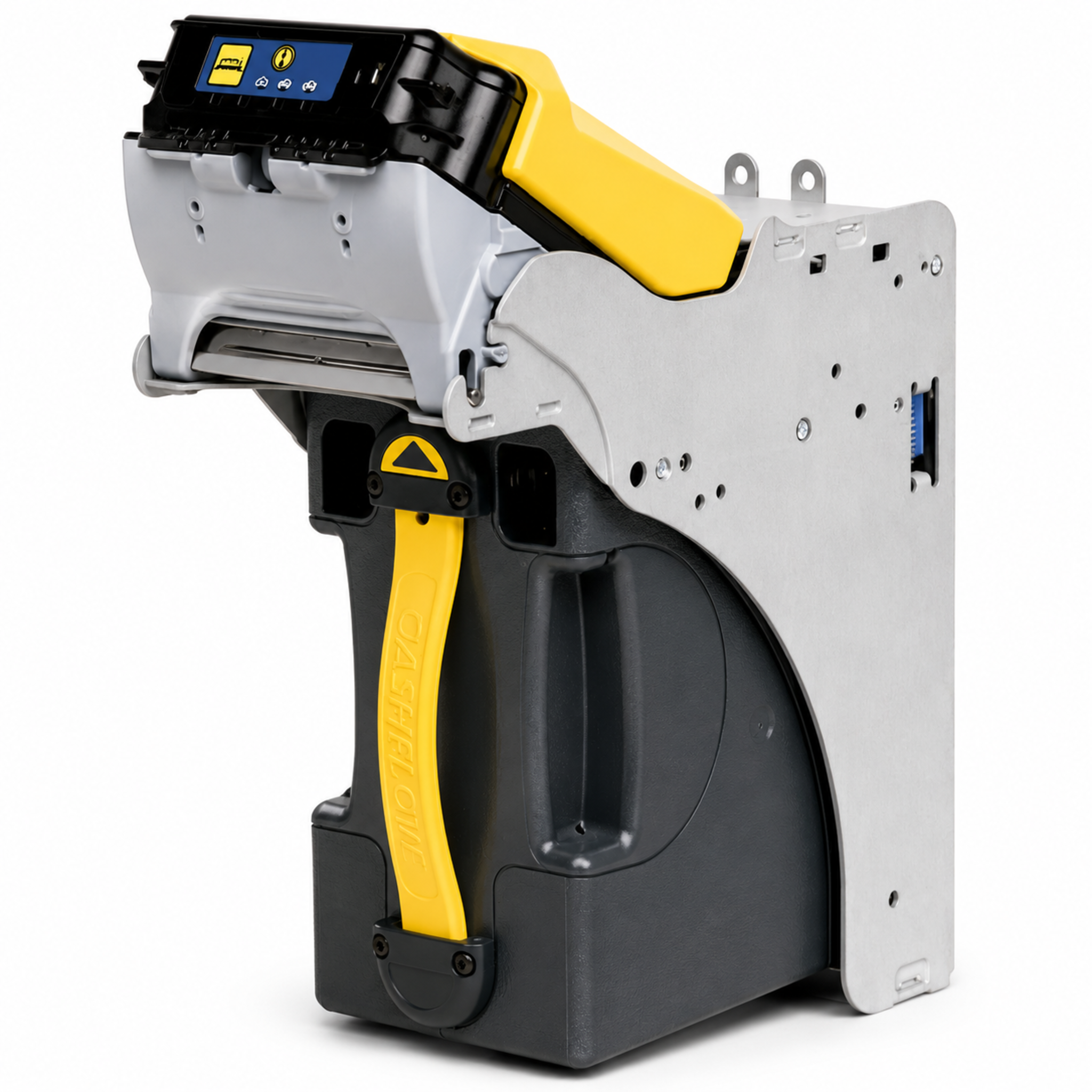

The MEI SCNM6612U UP Netplex IGT USB MPS SC Advance Note Validator is a high-performance banknote validator featuring IGT USB communication, Netplex compatibility, Upstacker (UP) configuration, and MPS support. Designed for casino gaming machines, kiosks, and unattended payment systems, it provides superior banknote validation, barcode ticket acceptance, and advanced anti-fraud protection.
Key Features
- Genuine MEI SC Advance™ Note Validator
- SCNM6612U UP Netplex Configuration
- IGT USB Communication Interface
- Netplex Compatible
- Upstacker (UP) Configuration
- MPS Compatible
- Advanced Note Recognition Technology
- Barcode Ticket Acceptance
- High First-Pass Acceptance Rate
- Supports Over 140 Global Currencies
- Four-Way Bill Insertion
- Full Spectral Note Validation
- Advanced Anti-Fraud Protection
- Sealed Note Path Design
- Anti-Skew Transport Technology
- Fast Note Processing
- Gaming Industry Compatible
- Easy Firmware Updates
- Low Maintenance Requirements
- OEM Factory Configuration
- Product Type: Banknote Validator
- Series: SC Advance™
- Model: SCNM6612U UP Netplex
- Configuration: SCNM66
- Communication Interface: IGT USB
- Gaming Protocol: Netplex
- Cashbox Orientation: Upstacker (UP)
- MPS Support: Yes
- Package Type: P1
- Acceptance Rate: 98% Or Greater
- Currency Support: Over 140 Global Currencies
- Note Insertion: Four-Way Acceptance
- Note Width Range: 62 mm – 83 mm
- Note Length Range: 120 mm – 166 mm
- Escrow Capacity: One Note Or One Barcode Coupon
- Processing Speed: Approximately 2.3 Seconds
- Operating Temperature: 0°C To 60°C
- Storage Temperature: -30°C To 70°C
- Humidity Range: 5% To 95% Non-Condensing
- Input Voltage: 12V – 28VDC
- Standby Power Consumption: 10 Watts
- Accepting Power Consumption: 30 Watts
- Peak Power Consumption: 70 Watts
Technical Specifications
| Brand | Crane MEI |
| MPN | 62562990P1 |
| Condition | New |
