Description

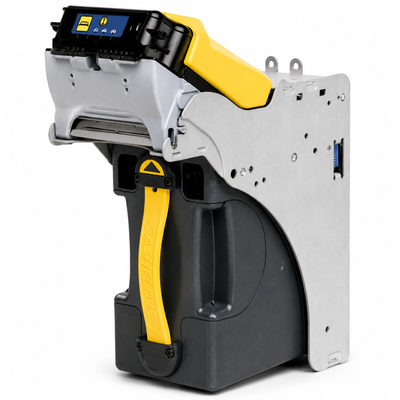

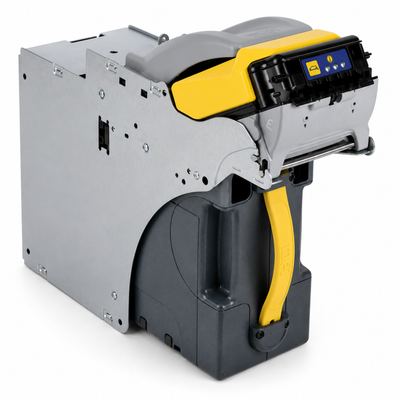

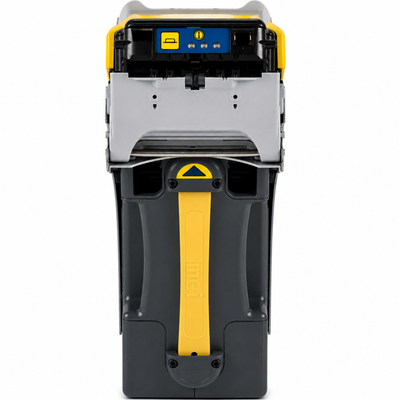

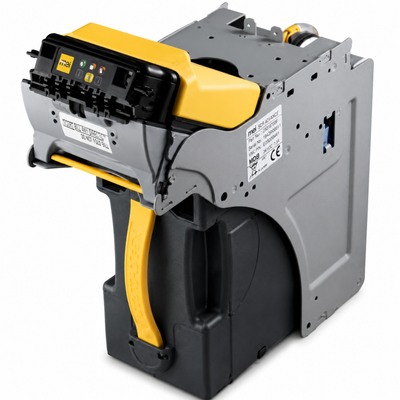

The MEI SCNM8342U UP IGT USB MPS SC Advance Note Validator is a high-performance banknote validator featuring IGT USB communication, Upstacker (UP) configuration, MPS support, advanced note recognition technology, barcode ticket acceptance, and industry-leading anti-fraud protection. Designed for casino gaming machines and unattended payment systems, it delivers reliable note validation and exceptional operational efficiency.
Key Features
- Genuine MEI SC Advance™ Note Validator
- SCNM8342U UP IGT USB MPS Configuration
- IGT USB Communication Interface
- Upstacker (UP) Configuration
- MPS Compatible
- P1 Package Configuration
- Advanced Note Recognition Technology
- High First-Pass Acceptance Rate
- Supports Over 140 Global Currencies
- Barcode Ticket Acceptance
- Four-Way Bill Insertion
- Full Spectral Note Validation
- Advanced Anti-Fraud Protection
- Sealed Note Path Design
- Anti-Skew Transport Technology
- Fast Note Processing
- Gaming Industry Compatible
- Durable Industrial Construction
- Easy Firmware Updates
- OEM Factory Configuration
- Product Type: Banknote Validator
- Series: SC Advance™
- Model: SCNM8342U UP IGT USB MPS
- Configuration: SCNM83
- Communication Interface: IGT USB
- Cashbox Orientation: Upstacker (UP)
- MPS Support: Yes
- Package Type: P1
- Acceptance Rate: 98% Or Greater
- Currency Support: Over 140 Global Currencies
- Note Insertion: Four-Way Acceptance
- Note Width Range: 62 mm – 85 mm
- Note Length Range: 120 mm – 166 mm
- Escrow Capacity: One Note Or One Barcode Coupon
- Processing Speed: Approximately 2.3 Seconds
- Operating Temperature: 0°C To 60°C
- Storage Temperature: -30°C To 70°C
- Humidity Range: 5% To 95% Non-Condensing
- Input Voltage: 12V – 28VDC
- Standby Power Consumption: 10 Watts
- Accepting Power Consumption: 30 Watts
- Peak Power Consumption: 70 Watts
Technical Specifications
| Brand | Crane MEI |
| MPN | 62563690P1 |
| Voltage | 12V – 28VDC |
| Condition | New |
