Description

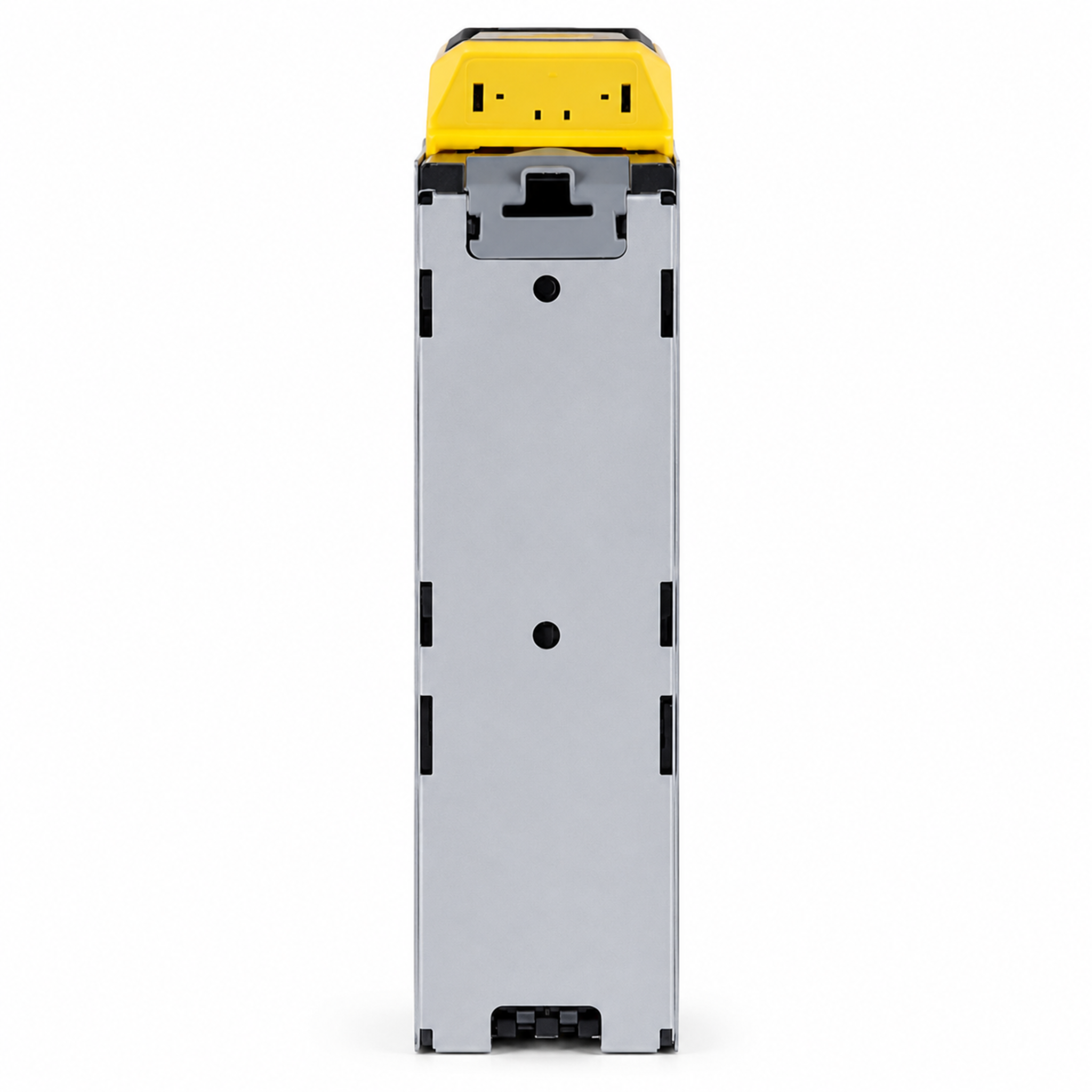

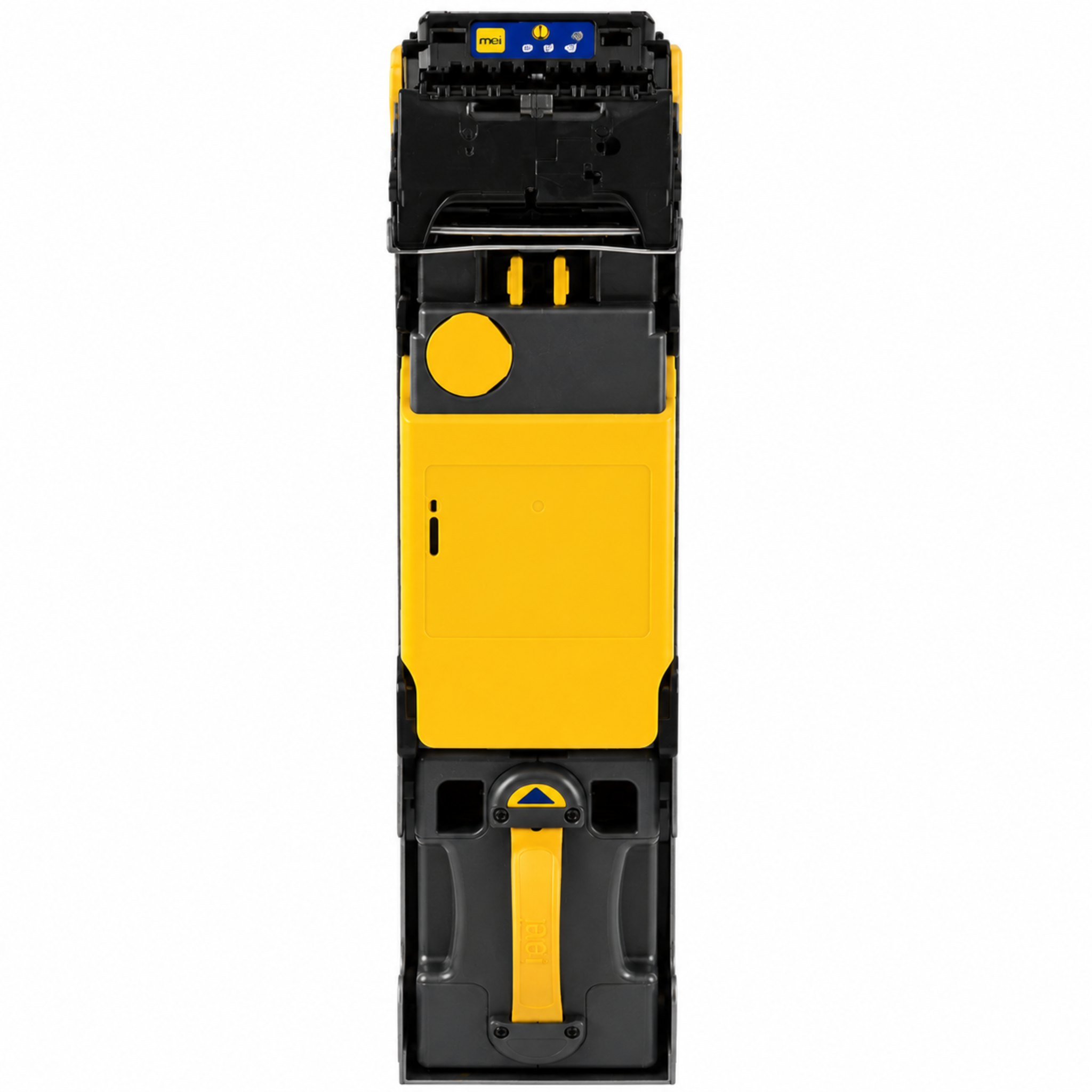

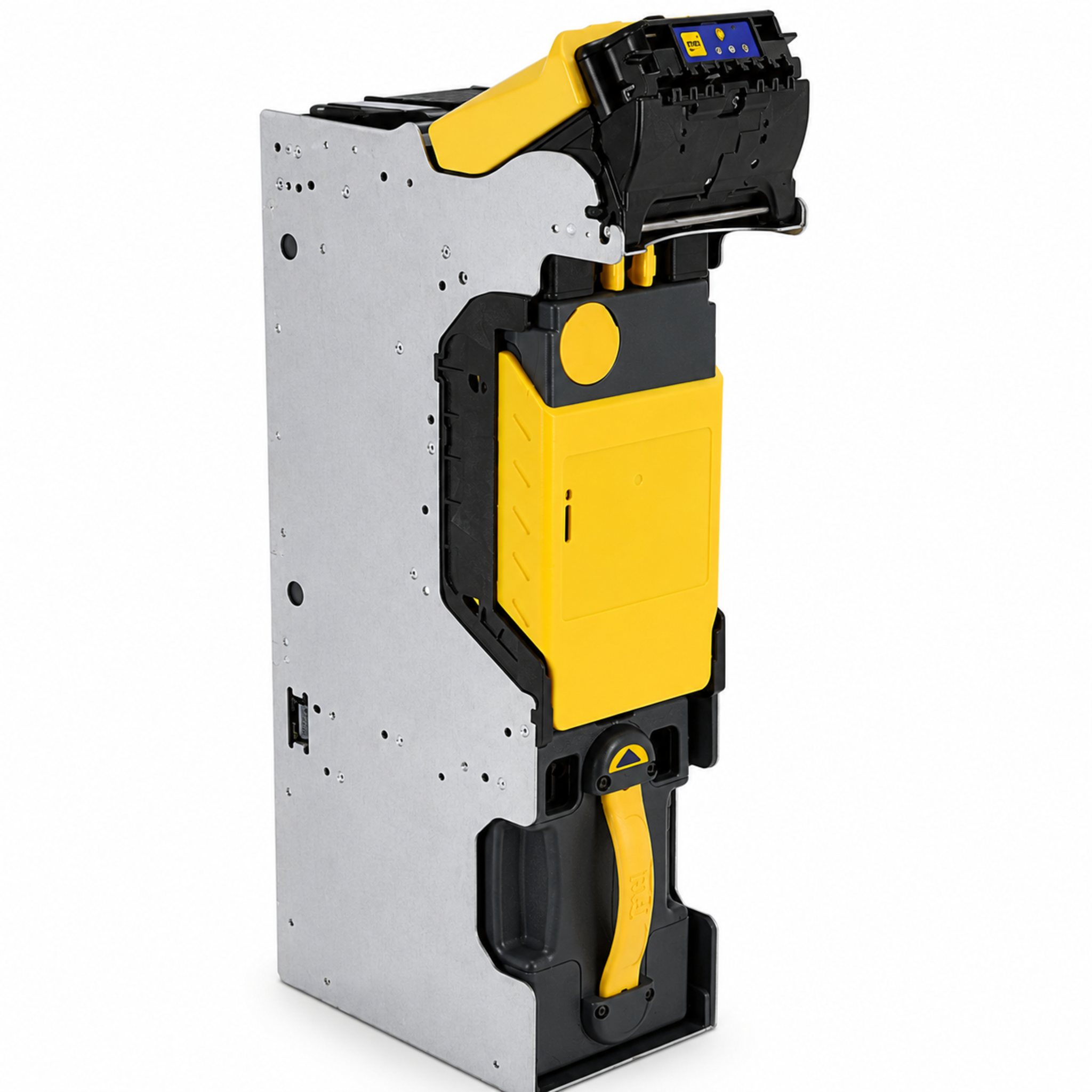

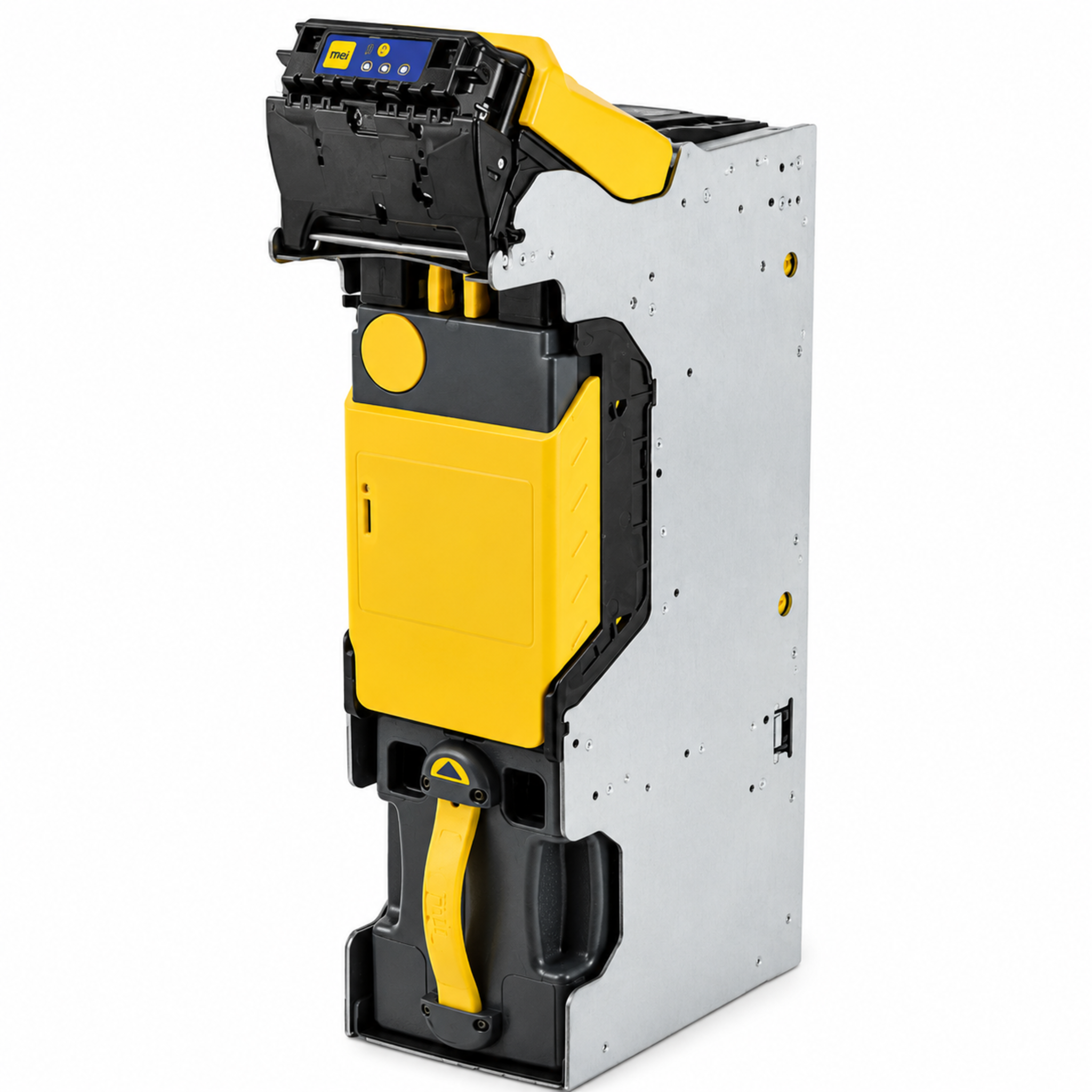

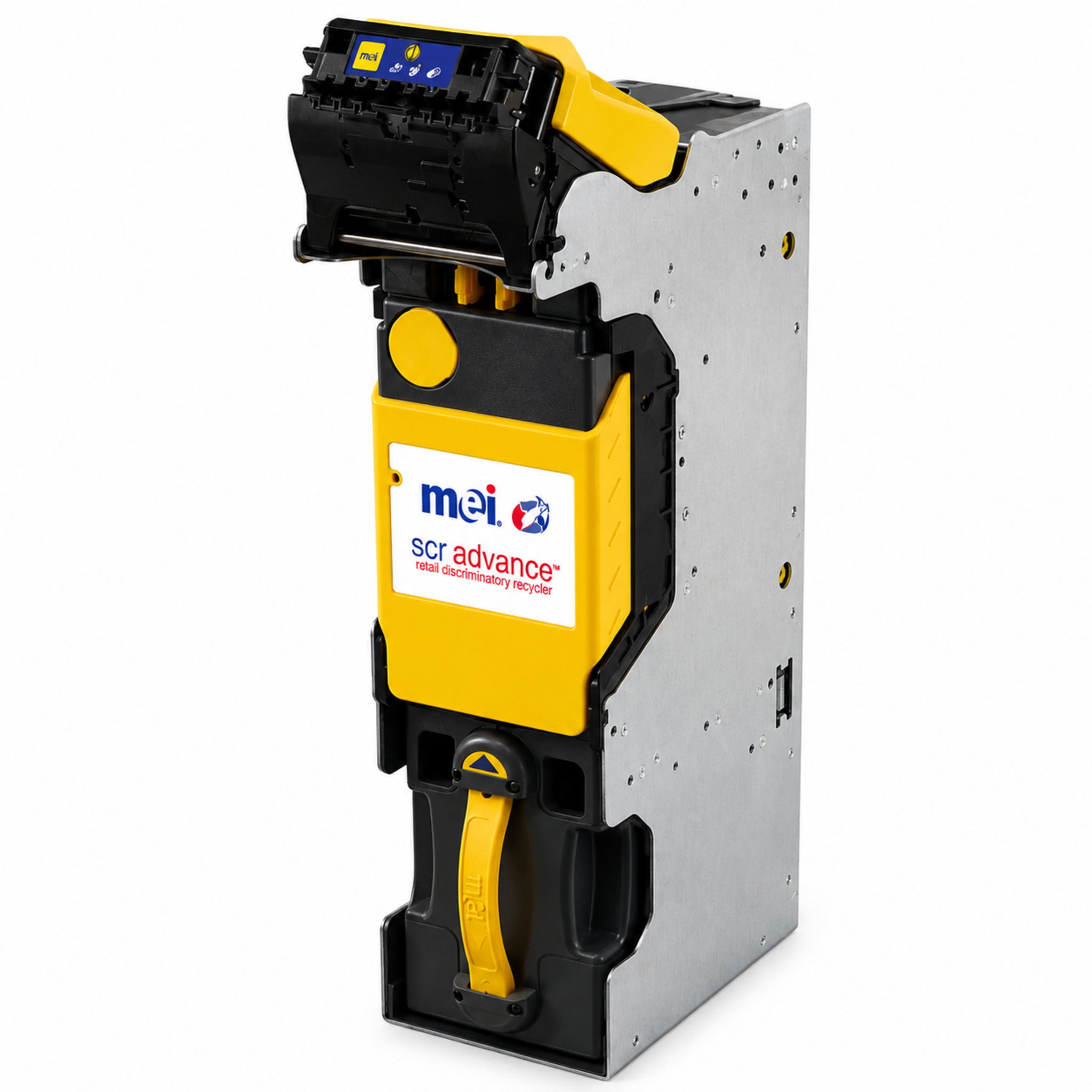

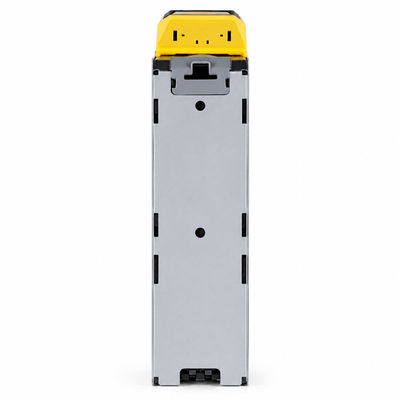

The MEI SCR8328M Banknote Recycler Module is a SCR Advance™ cash recycling module featuring Multi-Note Escrow (MNE) functionality, USB communication, and Latch security configuration. Designed for high-performance cash handling applications, it provides reliable banknote acceptance, escrow, recycling, and payout capabilities for gaming, retail, kiosk, and self-service environments.
Key Features
- SCR Advance™ Banknote Recycler Module
- SCR8328M Model
- SCNR8328M Recycler Assembly
- MNE (Multi-Note Escrow)
- USB Communication Interface
- Latch Security Configuration
- Multiple Banknote Escrow Capability
- SC Advance™ Acceptor Technology
- Anti-Skew Banknote Processing
- High First-Pass Acceptance Rate
- Spiral Drum Recycling Technology
- Compact Footprint Design
- Universal Currency Support
- Robust Accounting Functions
- Maintenance-Friendly Construction
- Remote Firmware Updates
- Remote Note Set Updates
- Reduced Downtime
- Low Cost Of Ownership
- High Reliability Performance
- Product Type: Banknote Recycler Module
- Series: SCR Advance™
- Model: SCR8328M
- Configuration: MNE
- Recycler Assembly: SCNR8328M
- Interface: USB
- Protocol: REBDS
- Escrow Type: Multi-Note Escrow
- Recycling Technology: Spiral Drum Recycling
- Operating Temperature: 0°C To +60°C
- Inlet Width: Up To 83 mm
- Power Supply: 24 VDC (-10% / +20%)
- Maximum Current Consumption: 6 Amps
- Software Updates: Remote Firmware And Note Set Updates
- ADA / DDA Compliant Consumer Zone
- Security Type: Latch
- Height: 489 mm
- Width: 114 mm
- Depth: 236 mm
- Weight: 7.57 kg
Technical Specifications
| Brand | Crane MEI |
| MPN | 252801011P1 |
| Voltage | 24v |
| Condition | New |
