Description
Overview

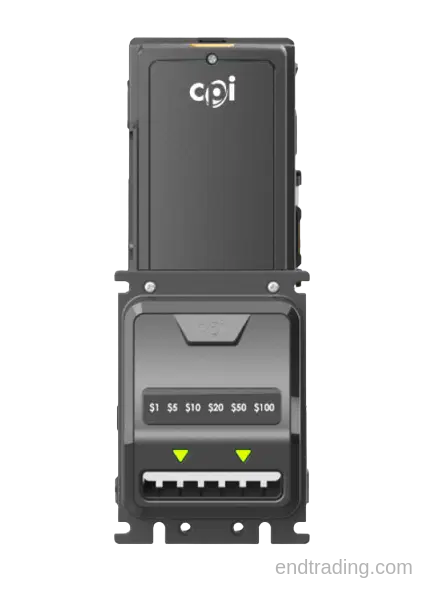

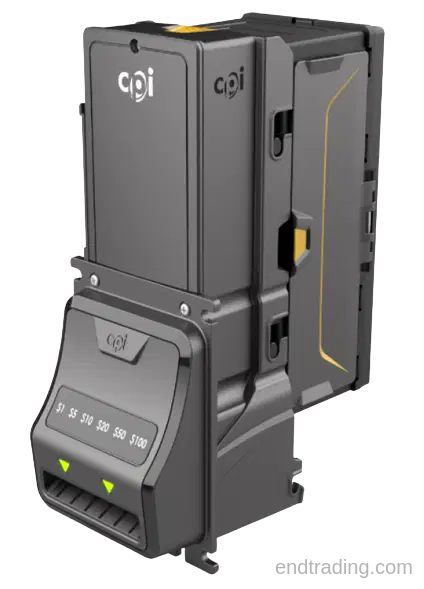

The MEI Talos T811-U10EUS is a U.S.-currency 110 V AC bill validator from the Crane MEI Talos T8 Series, replacing the legacy AE2811-U10EUS. It combines Crane’s latest Talos optical technology with a rugged, modular frame for long-term durability and quick service access.
Featuring a compact up-stacker body and operating on 110 V AC, the T811-U10EUS stores bills upward into a 1,000-note cassette, making it ideal for legacy vending and amusement systems that require high-capacity AC-powered operation with modern performance and security.
Key Features
- Accepts U.S. $1 – $20 bills with 4-way optical validation
- 110 V AC pulse/parallel interface for legacy systems
- Replaces legacy AE2811-U10EUS
- Compact Up-Stacker with 1,000-note cassette
- Advanced anti-counterfeit and anti-stringing sensors
- Upgradeable firmware via USB or handheld programmer
- Quick-release stacker for easy service access
- Rugged gear-driven transport for long-term reliability
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | 110 V AC Pulse / Parallel / Legacy |
| Stacker Orientation | Upward (Up-Stacker) |
| Operating Voltage | 110 V AC ± 10 % |
| Stacker Capacity | 1,000 notes (interchangeable cassette) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Firmware Update | USB or handheld programmer |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Series | Talos Series — Crane MEI’s next-generation validator platform with advanced optics and serviceability. |
| 8 | Model Family | T8 Series — replacement for AE28xx validators. |
| 1 | Bezel Type | Standard Talos Entry bezel for universal front-entry installation. |
| 1 | Power Configuration | 110 V AC input for legacy vending and amusement systems. |
| U10 | Stacker / Capacity | Up-Stacker with 1,000-note cassette for high-volume applications. |
| EUS | Build Code | U.S. E-series mainboard configuration with Talos firmware. |
Summary:
The MEI Talos T811-U10EUS replaces the AE2811-U10EUS, featuring a compact Up-Stacker design, 1,000-note cassette, and 110 V AC operation for legacy vending and amusement systems.
BillAcceptors.us is an authorized Crane MEI distributor with over 30 years of experience, offering the best prices and repair support.
Technical Specifications
| Brand | Crane MEI |
| Voltage | 110v |
| Supported Protocols | Pulse, Serial |
| Stacker Capacity | 1000 Bills |
| Bezel Type | MEI Compact Upstacker "1" |
| Denomination Acceptance | $1-$100 |
| Condition | New |
