Description
Overview

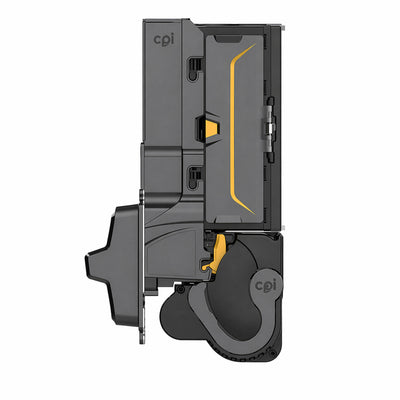

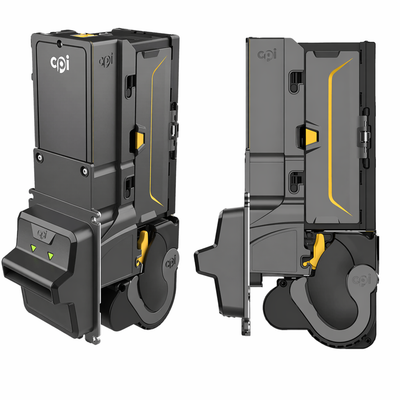

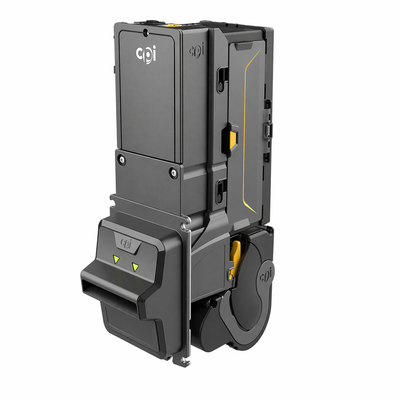

The MEI Talos TR7P2-U5MUS is a U.S.-currency MDB bill validator with recycler support from the Crane MEI Talos T7 Series. It replaces the legacy VN27P2-U5MUS and provides faster validation, superior optical security, and modular service access. The integrated P-Bezel (Profile Bezel) is recycler-ready for systems requiring optional note payout modules.
Operating on 24 V DC / 34 V DC MDB power, this model features a compact Up-Stacker with a 500-note cassette. It’s built for modern vending, kiosk, and self-service applications demanding both high speed and expandability.
Key Features
- Accepts U.S. $1–$20 bills with 4-way optical validation
- MDB protocol (24 V DC / 34 V DC)
- Replaces legacy VN27P2-U5MUS
- P-Bezel (Profile Bezel) for vending and kiosk applications — Recycler-Ready
- Up-Stacker with 500-note cassette
- Upgradeable firmware via USB or handheld programmer
- Advanced anti-counterfeit and anti-stringing protection
- Quick-release stacker and bezel for easy service
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | MDB Protocol |
| Bezel Type | P-Bezel (Profile Bezel Recycler-Ready) |
| Stacker Orientation | Upward (Up-Stacker) |
| Operating Voltage | 24 V DC / 34 V DC |
| Stacker Capacity | 500 notes (interchangeable cassette) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Series | Talos Series — Crane MEI’s advanced validator platform with modular design and optical accuracy. |
| R | Recycler Support | Indicates factory compatibility with Talos Recycler Modules. |
| 7 | Model Family | T7 Series — replaces VN27xx validators. |
| P | Bezel Type | Profile Bezel (P-Bezel) used for vending and kiosk applications, recycler-ready. |
| 2 | Power Configuration | 24 V DC / 34 V DC MDB operation. |
| U5 | Stacker / Capacity | Up-Stacker with 500-note cassette capacity. |
| MUS | Build Code | U.S. MDB mainboard configuration with Talos firmware. |
Summary:
The MEI Talos TR7P2-U5MUS replaces the VN27P2-U5MUS, featuring a Profile Recycler-Ready P-Bezel, Up-Stacker design, 500-note cassette, and 24 V DC MDB operation for vending and kiosk systems with optional recycler support.
BillAcceptors.us is an authorized Crane MEI distributor with over 30 years of experience, offering the best prices and repair support.
Technical Specifications
| Brand | Crane MEI |
| Voltage | 34v |
| Supported Protocols | MDB |
| Stacker Capacity | 500 Bills |
| Bezel Type | MEI Profile "P" |
| Denomination Acceptance | $1-$20 |
| Condition | New |
