Description
The Pyramid Apex 7400-DB3 bill acceptor is the 120 VAC Apex for $1–$20 with a 500-note stacker and standard bezel. It is the current replacement for the Apex 7400-U53, 7400-UC3 and 7400-UB3.
It supports up or downstacker orientation. On 120V Apex units, the practical difference is where the harness exits: this DB3 configuration exits the side, which helps avoid pinching wires in tight cabinets (for example Arachnid dartboards). The related UB3 configuration exits the rear.
Do not read the “D” in the part number as a different bill-stacking mode — stacking capability is the same class as the UB3; harness exit is what differs on 120V.
Equipped with dual-stage optical anti-stringing; accepts currency up to 72 mm wide. DIP-switch and PC configuration with automatic self-calibration. Apex 7000 series: greater than 95% acceptance, about 20 bills per minute.
Replaces: Apex 7400-U53, 7400-UC3 and 7400-UB3.
Condition: New. Made by Pyramid Technologies.

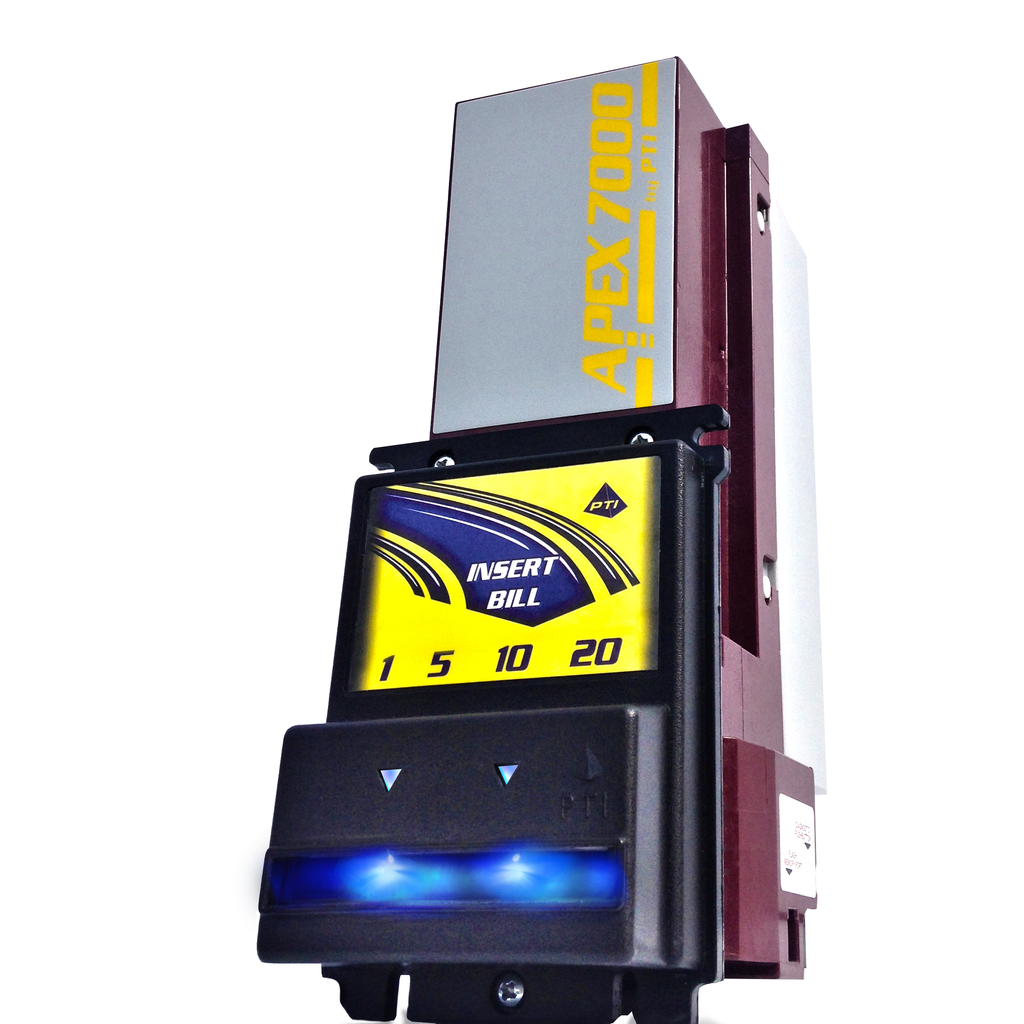

Image is representative; actual unit may vary slightly.
Technical Specifications
| Brand | Pyramid |
| Voltage | 110v |
| Supported Protocols | Pulse, Serial |
| Stacker Capacity | 500 Bills |
| Bezel Type | Standard |
| Denomination Acceptance | $1-$20 |
| Condition | New |
