Description

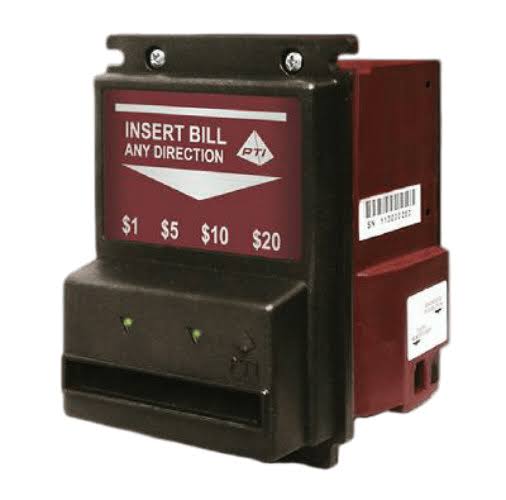

The Pyramid Apex 7400-SN1 is a 12 VDC stackerless bill acceptor from the Apex 7000 series. With no stacker or cashbox attached, accepted bills pass straight through the unit and drop into the machine's own cash compartment, making it a direct fit for amusement, redemption, jukebox, pinball, vending and kiosk equipment built for stackerless validators.
Key Features
- Accepts US $1, $5, $10 and $20 bills, including new-design currency
- 12 VDC power with pulse or 600-baud serial interface
- Standard Apex bezel with lighted arrows on the bezel and bill entry
- Dual-stage optical anti-stringing protection
- Acceptance speed of approximately 20 bills per minute
- Configured by DIP switches
Compatibility
Fits machines designed for a 12V stackerless bill acceptor with a standard bezel opening. This model accepts $1-$20 only; for $50 and $100 acceptance choose the Apex 7600-SN1. Check your machine's interface (pulse or serial) and DIP switch settings before installation.
What's Included
- (1) Pyramid Apex 7400-SN1 stackerless bill acceptor
- Wiring harness not included
Technical Specifications
| Brand | Pyramid |
| Voltage | 12v |
| Supported Protocols | Pulse, Serial |
| Stacker Capacity | Stackerless Bills |
| Bezel Type | Standard |
| Denomination Acceptance | $1-$20 |
| Condition | New |
