Description

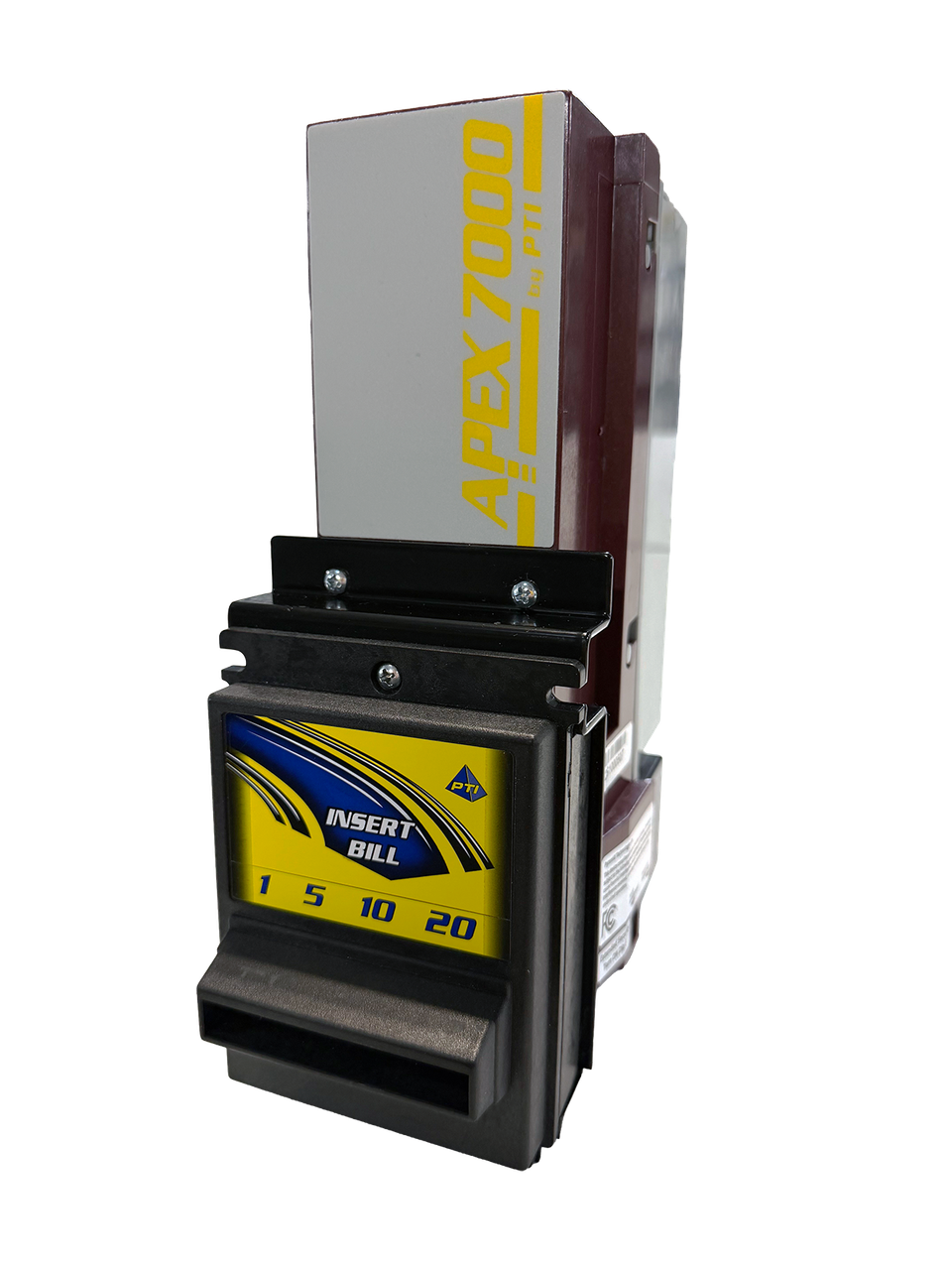

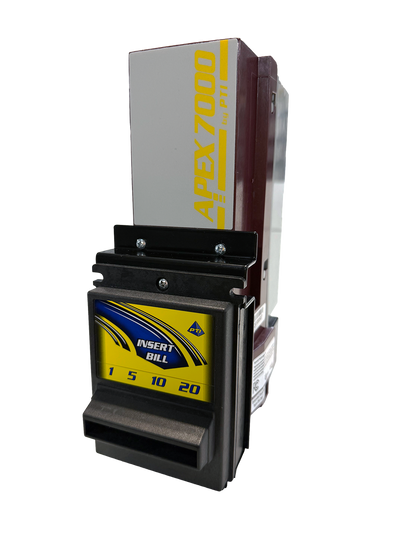

The Pyramid Apex 7401-UB3 bill acceptor is a USA-built Apex 7000 series validator with a Coinco-style bezel, designed for $1–$20 bill acceptance in vending, amusement and gaming machines that need 110V power.
- Voltage: 110–120VAC
- Interface: pulse / serial
- Accepts $1, $5, $10 and $20 bills, four ways
- Upstacker with 500-note plastic cashbox
- "B" anti-stringing configuration: toothed stacker plate and string-cutting cashbox blade
- Dual-stage optical anti-stringing, automatic self-calibration
- DIP-switch and PC configuration, flash updates
- Accepts bills up to 72mm wide
Match the bezel to your machine cutout before ordering. Not sure which one fits? Call us and we'll help.
Technical Specifications
| Brand | Pyramid |
| Voltage | 110v |
| Supported Protocols | Pulse, Serial |
| Stacker Capacity | 500 Bills |
| Bezel Type | CoinCo |
| Denomination Acceptance | $1-$20 |
| Condition | New |
