Description

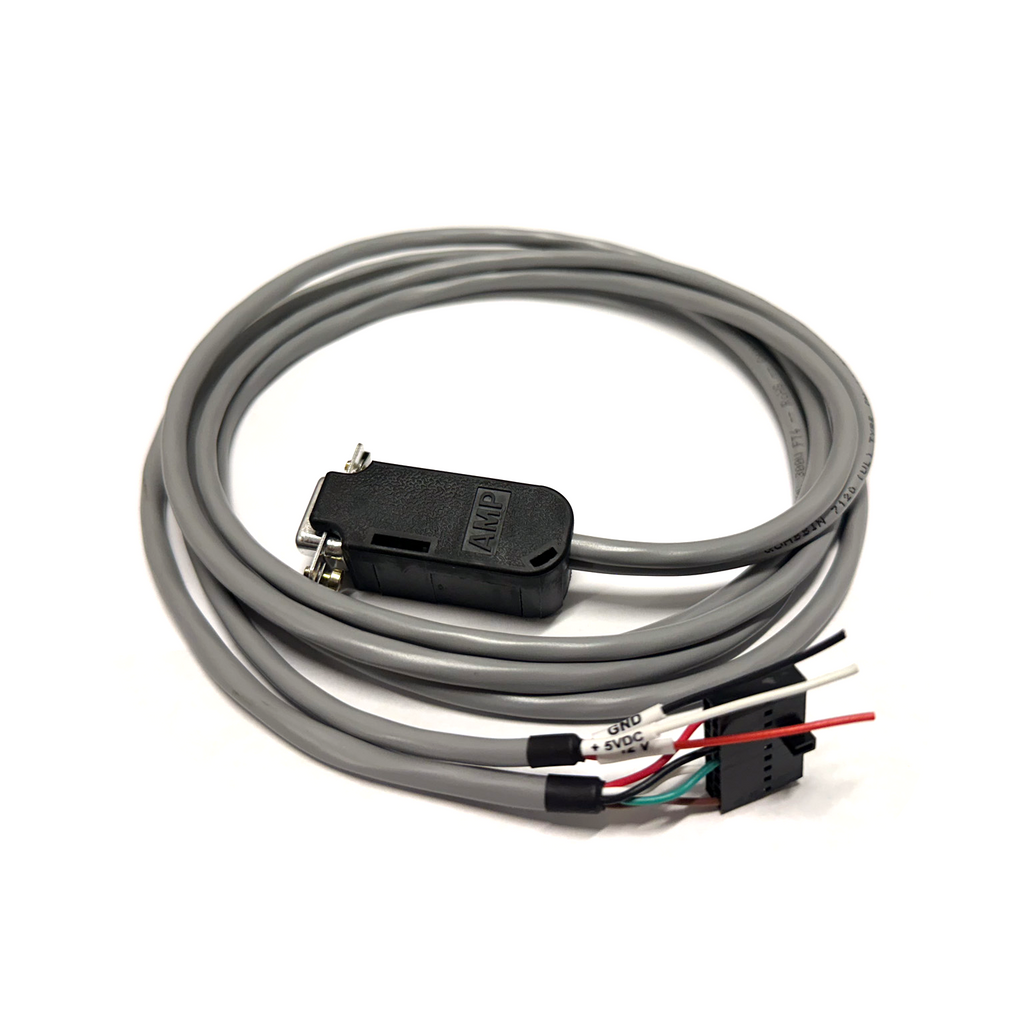

The Pyramid Apex/Platinum Serial DB9 Harness, Part No. 05AA0068, is the RS-232 communication harness Pyramid lists for Apex and Platinum bill acceptors that need a DB9 serial connection.
What Pyramid says it is for
Pyramid's Platinum Installation/Operation Manual lists RS-232 Communication Harness P/N 05AA0068 as the harness needed for RS-232 communication. It comes with a DB9 connector on 6 feet of cable and is specified for use with 120 VAC acceptor power (the companion 12V harness is 05AA0009). Pyramid's Apex accessory list and Platinum optional-accessories table both reference this part.
Compatibility notes
- Acceptors: Pyramid Apex and Platinum models that use RS-232 on 120 VAC power
- Part number on Pyramid's sheet: 05AA0068
- Not the same as our 05AA0023 USB/RS232 harness or the 05AA0012 wall-plug harness
Important: This listing is for the harness only. Confirm your acceptor's voltage and interface before ordering. The bill acceptor is sold separately.
Sources: Pyramid Platinum Installation/Operation Manual Rev C (optional accessories / RS-232 harnesses); Pyramid Technologies distributor price sheet effective September 11, 2026 (Spare Parts 05AA0068 Apex/Platinum Serial DB9 Harness).
Technical Specifications
| Brand | Pyramid |
