Description
Overview

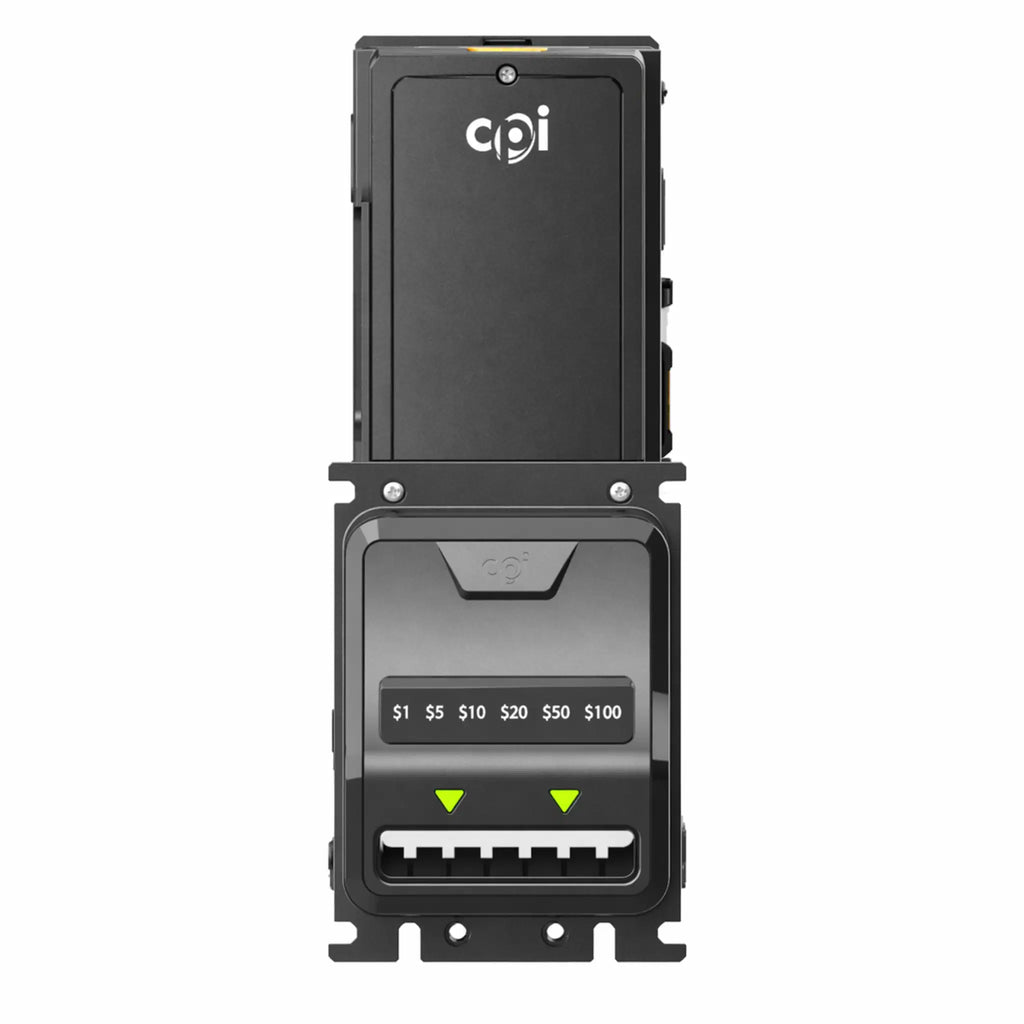

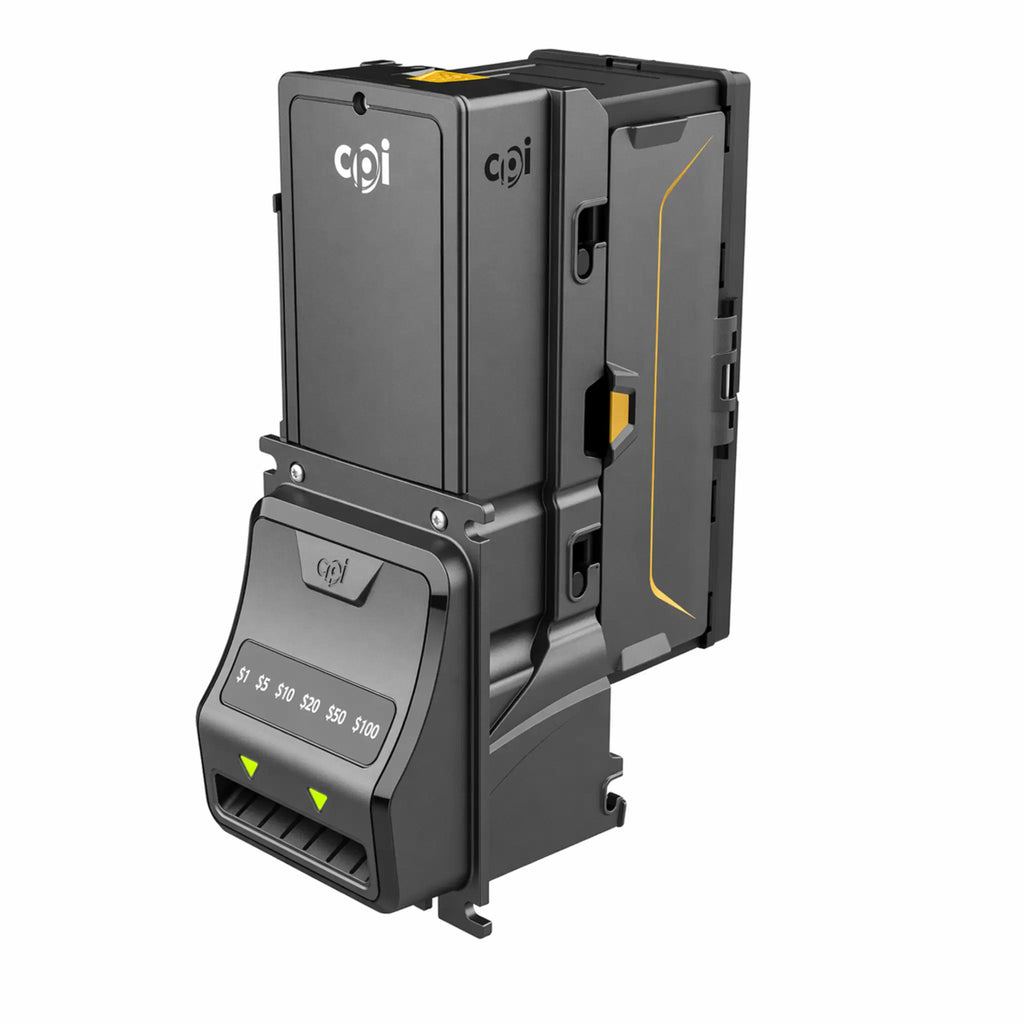

The MEI Talos T602-U10MUS is a U.S.-currency MDB bill validator designed for vending, kiosk, and amusement applications. As part of the Crane MEI Talos T6 Series, it replaces the discontinued AE2602-U10MUS model, offering faster note acceptance, improved security, and reduced maintenance downtime.
Built with Crane MEI’s latest Talos platform, the T602-U10MUS delivers superior optical sensing, a rugged gear-driven transport, and modular construction for easy servicing. Its MDB compatibility allows seamless integration with existing systems, providing drop-in replacement capability for AE26xx models.
Key Features
- Accepts U.S. $1–$20 bills with advanced optical validation
- MDB protocol for vending, kiosk, and amusement systems
- Replaces the discontinued AE2602-U10MUS
- Standard Talos bezel for universal front-entry installation
- Enhanced anti-stringing and counterfeit detection
- Field-upgradeable firmware via USB or handheld programmer
- Quick-release stacker and modular internal design
- Durable gear-driven mechanism for long service life
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | MDB Protocol |
| Bezel Type | Standard Talos Entry Bezel |
| Operating Voltage | 24 V DC |
| Stacker Capacity | Up to 1000 notes (up-stacker configuration) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Firmware Update | USB or handheld programmer |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Talos Series | Crane MEI’s next-generation validator platform with enhanced optics and modular design. |
| 6 | Model Family | T6 Series — replacement for the AE26xx validator family. |
| 0 | Bezel Type | VFM Bezel for standard front-mount vending applications. |
| 2 | Power Configuration | MDB protocol for plug-and-play vending connectivity. |
| U10 | Stacker Configuration | Up-stacker model with 1000-note stacker box — designed for high-capacity vending and amusement machines. |
| MUS | Build Code | Standard U.S. factory build with MDB firmware and Talos mainboard. |
Summary:
The MEI Talos T602-U10MUS replaces the AE2602-U10MUS, delivering faster note validation, higher stacker capacity, and enhanced reliability for MDB vending and amusement systems.
Denominations Accepted
This unit is a market code 6 (Amusement) configuration and accepts U.S. $1, $5, $10 and $20 notes. It does not accept $50 or $100 notes — if you need $50 and $100 acceptance, choose a T8-series model.
BillAcceptors.us is an authorized Crane MEI distributor with over 30 years of experience, offering the best prices and repair support.
Technical Specifications
| Brand | Crane MEI |
| Voltage | 34v |
| Supported Protocols | MDB |
| Stacker Capacity | 1000 Bills |
| Bezel Type | MEI VFM Upstacker "0" |
| Denomination Acceptance | $1-$20 |
| Condition | New |
