Description
Overview

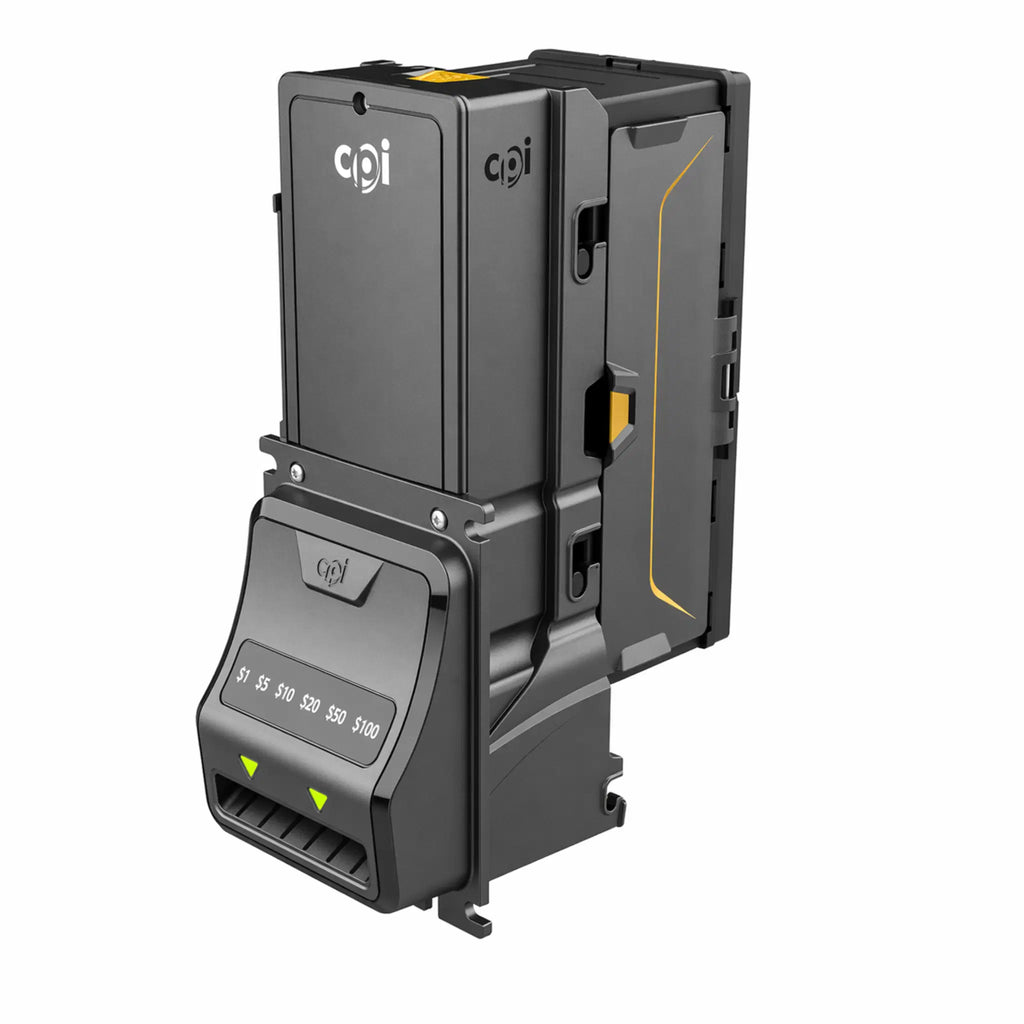

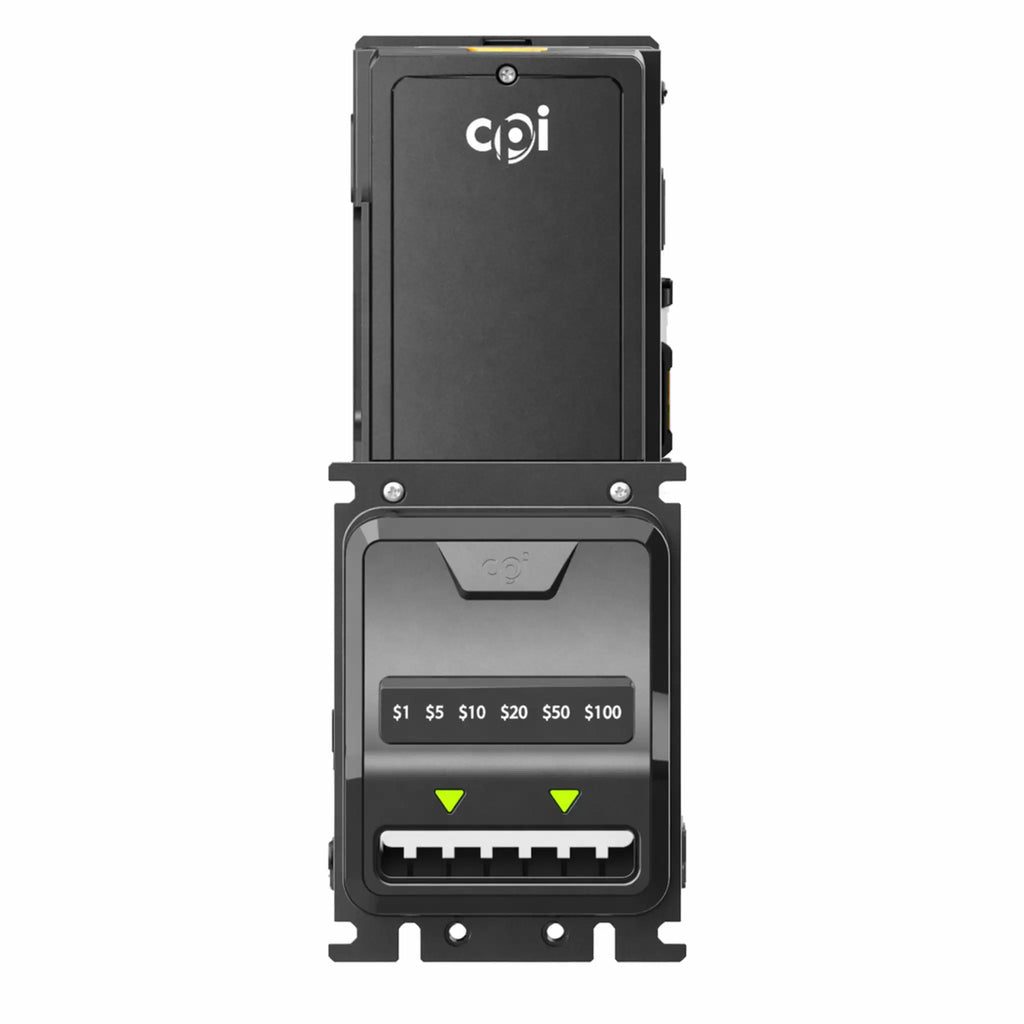

The MEI Talos T602-U5EUS is a U.S.-currency MDB bill validator, equipped with a 12-pulse (parallel) interface harness, designed for vending, kiosk, and amusement applications. As part of the Talos T6 Series, it replaces the discontinued AE2602-U5EUS and delivers faster bill acceptance, stronger anti-fraud protection, and easier field maintenance.
Built with MEI’s proven Talos technology, the T602-U5EUS combines high-precision optical sensors, gear-driven transport, and modular construction for long service life. It supports $1–$20 note acceptance, features tool-free stacker removal, and provides full MDB interface compatibility for plug-and-play upgrades.
Key Features
- Accepts U.S. $1–$20 bills with advanced optical sensing
- Standard MDB interface with a 12-pulse (parallel) interface harness for vending, kiosk, and amusement systems
- Replaces legacy AE2602-U5EUS
- Enhanced anti-stringing and counterfeit detection

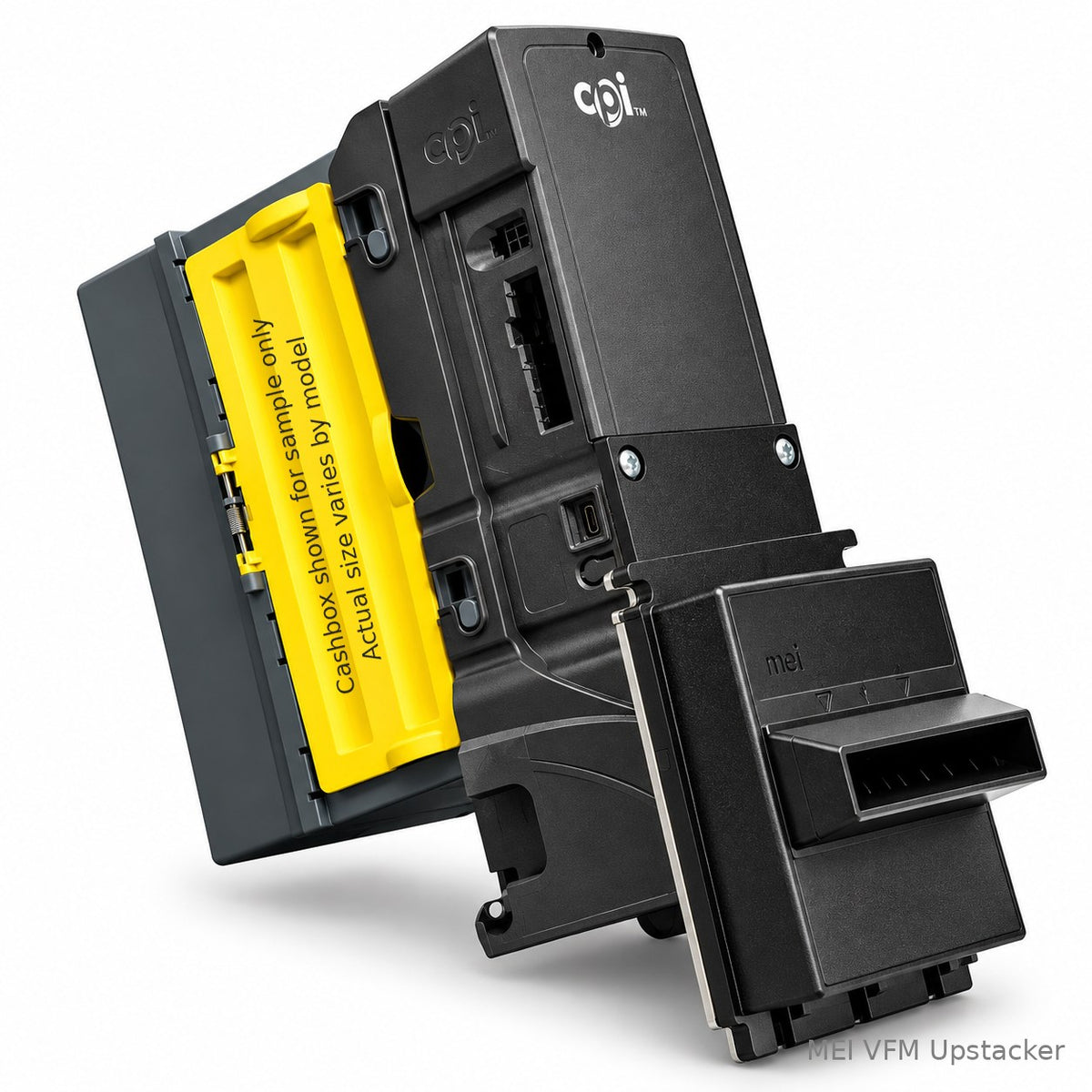

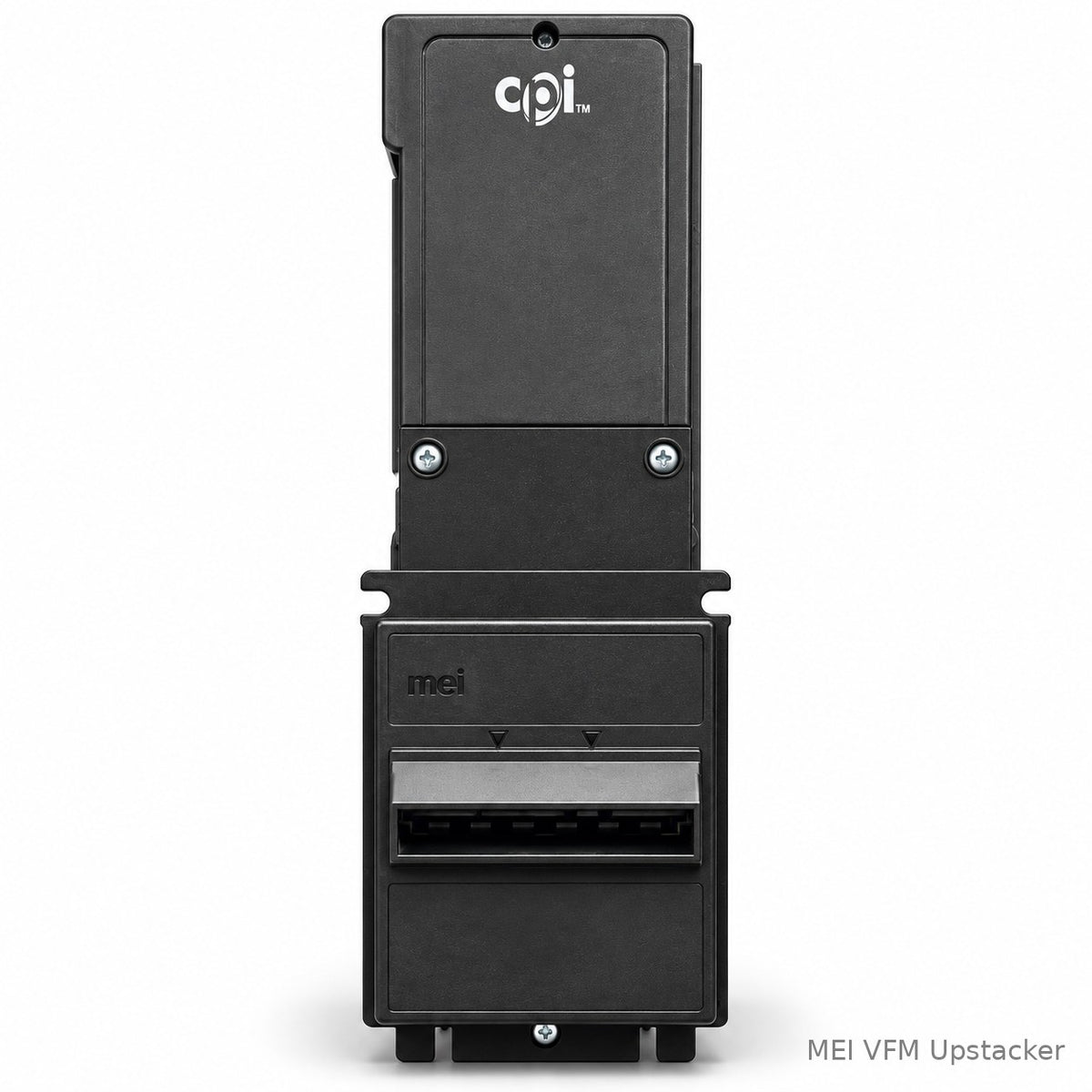

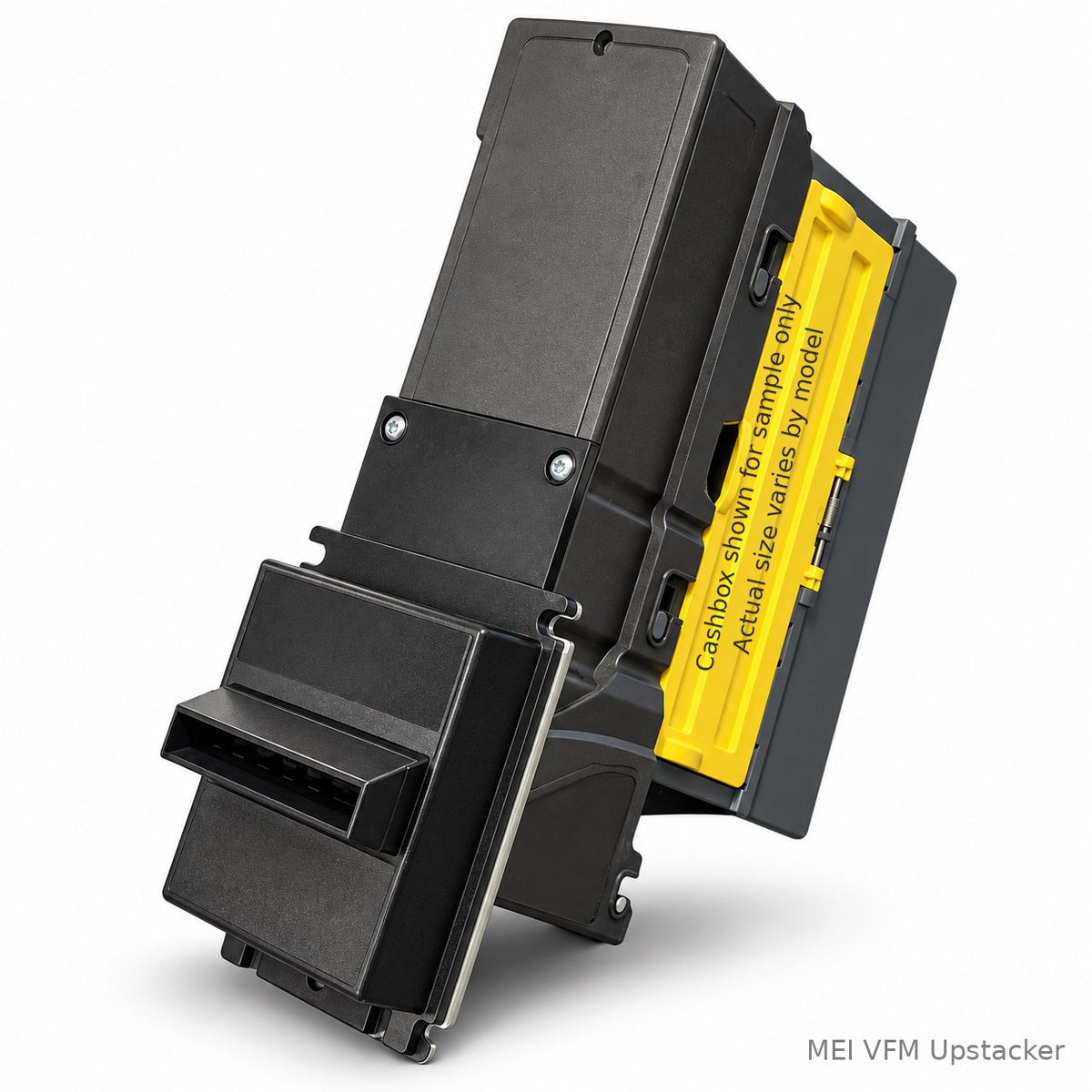

- CPI VFM up-stacker bezel
- Field-upgradeable firmware via USB or handheld device
- Quick-release stacker and modular design for fast service
- Durable gear-driven mechanism for reliable long-term operation
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | MDB Protocol |
| Bezel Type | Standard Talos Entry Bezel |
| Operating Voltage | 24 V DC |
| Stacker Capacity | Up to 500 notes (up-stacker configuration) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Firmware Update | USB or handheld programmer |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Talos Series | MEI’s next-generation validator platform offering improved durability and performance. |
| 6 | Model Family | T6 Series — replaces the older AE26xx validator family. |
| 0 | Bezel Type | CPI VFM "0" Upstacker Bezel |
| 2 | Interface Type | MDB protocol for vending and amusement machines. |
| U5 | Stacker Configuration | Up-stacker with 500-note stacker box for compact vending and amusement applications. |
| EUS | Build Code | U.S. standard MDB build (E-series mainboard) with a 12-pulse (parallel) interface harness. |
Summary:
The MEI Talos T602-U5EUS replaces the AE2602-U5EUS, offering faster note recognition, enhanced durability, and plug-and-play MDB integration for vending and amusement systems.
BillAcceptors.us is an authorized Crane MEI distributor with over 30 years of experience, offering the best prices and repair support.
Technical Specifications
| Brand | Crane MEI |
| Voltage | 34v |
| Supported Protocols | MDB |
| Stacker Capacity | 500 Bills |
| Bezel Type | MEI VFM Upstacker "0" |
| Denomination Acceptance | $1-$20 |
| Condition | New |
