Description
Overview

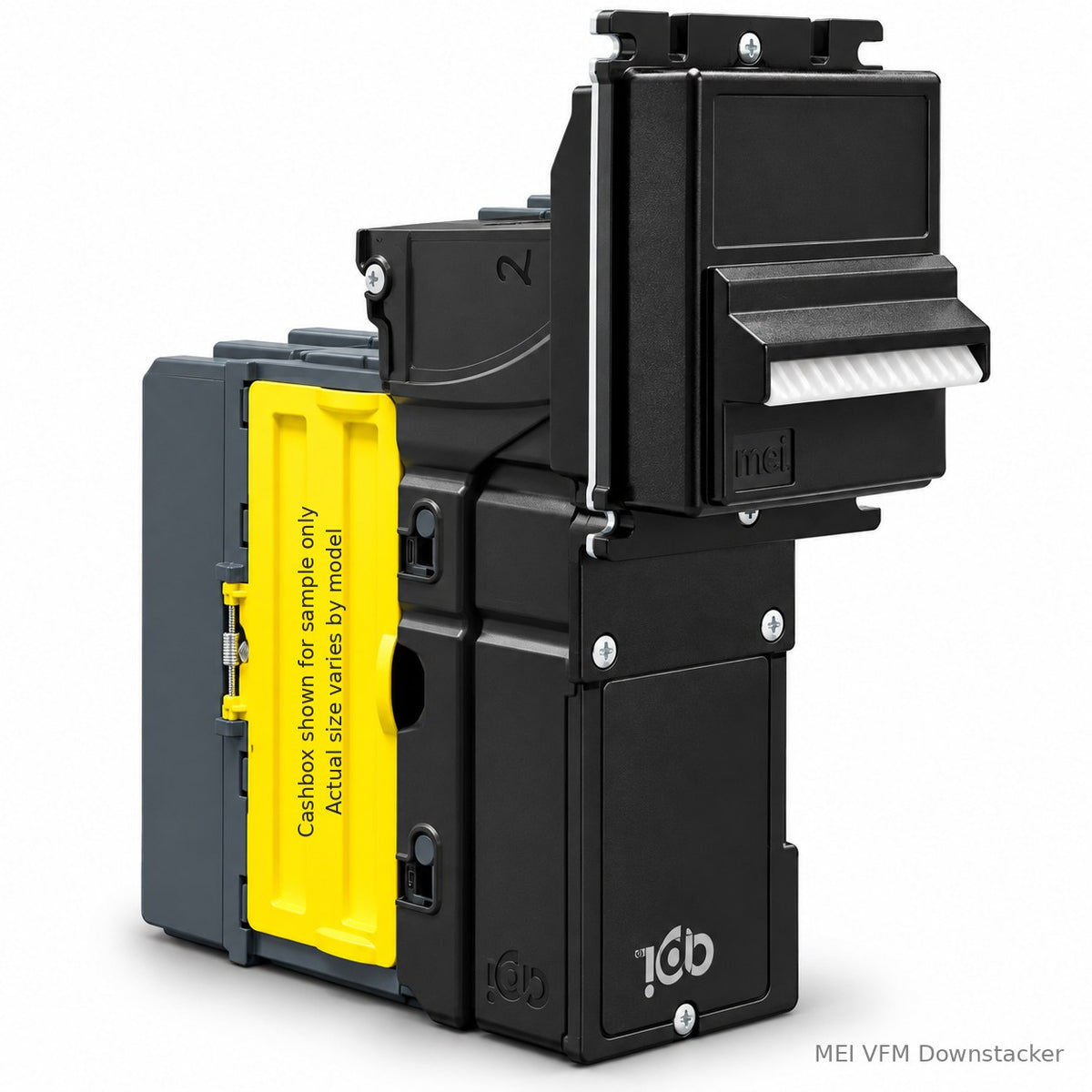

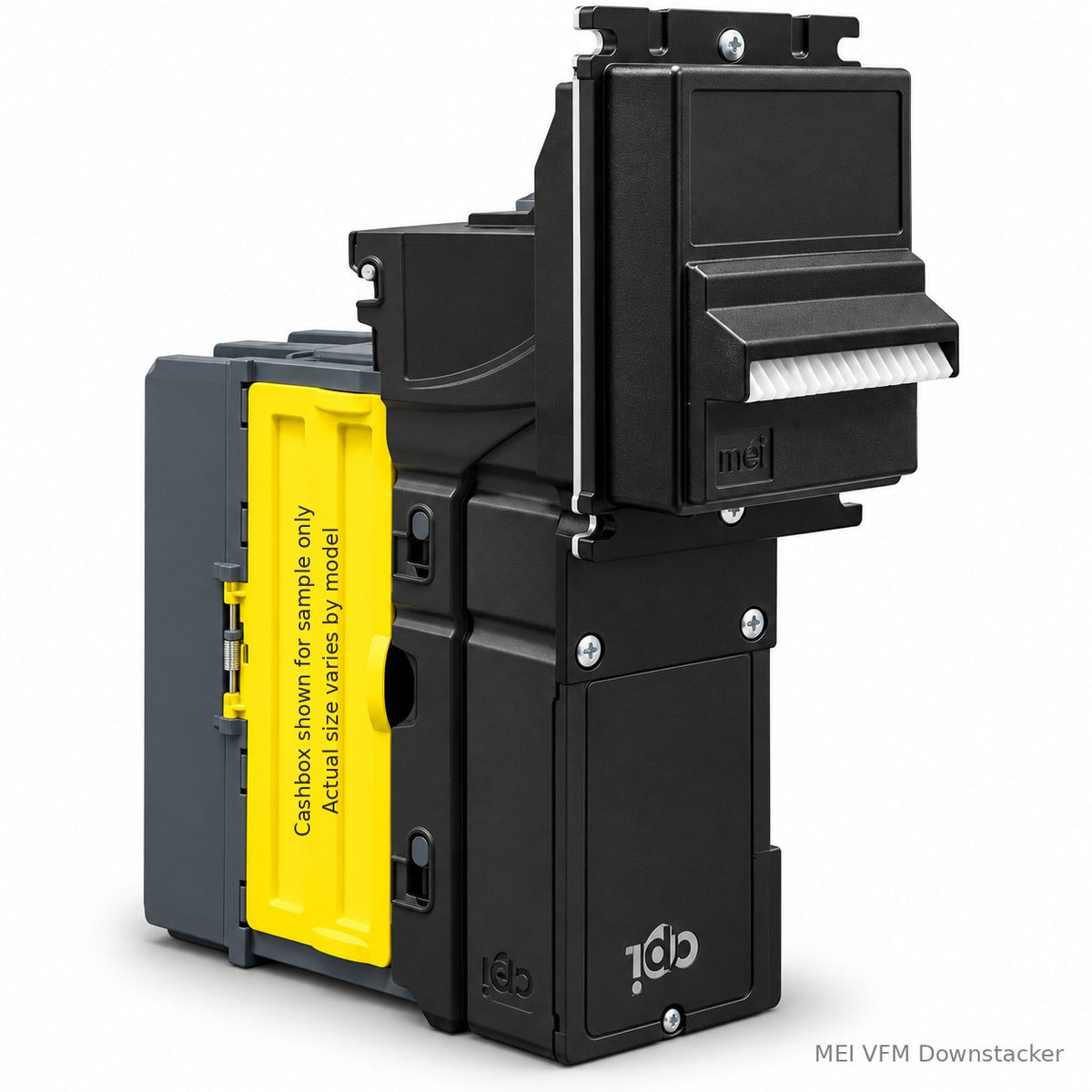

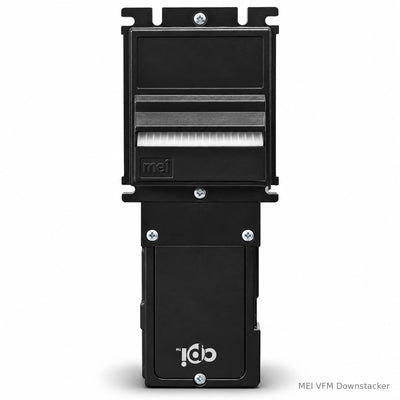

The MEI Talos T631-D5EUS is a U.S.-currency 110 V AC bill validator designed for amusement, kiosk, and legacy vending machines. As part of the Talos T6 Series, it replaces the discontinued AE2631-D5EUS model, offering faster validation, stronger counterfeit detection, and improved serviceability with a modular design.
Featuring MEI’s D-Bezel (High-Visibility Compact Bezel), this validator provides a bright, illuminated bill entry slot ideal for compact machine panels. The T631-D5EUS combines MEI’s proven gear-driven transport system with advanced optical sensors to ensure reliable note acceptance and reduced maintenance downtime.
Key Features
- Accepts U.S. $1–$20 bills with advanced optical validation
- 110 V AC interface for legacy vending and amusement systems
- High-Visibility Compact D-Bezel for smaller door openings
- Replaces legacy AE2631-D5EUS
- Enhanced anti-stringing and counterfeit protection
- Field-upgradeable firmware via USB or handheld programmer
- Quick-release stacker and modular construction for easy service
- Durable gear-driven transport for long-life reliability
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | 110 V AC Pulse / Parallel / Legacy Interface |
| Bezel Type | D-Bezel (High-Visibility Compact) |
| Operating Voltage | 110 V AC ± 10% |
| Stacker Capacity | Up to 500 notes (down-stacker configuration) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Firmware Update | USB or handheld programmer |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Series | Talos Series — MEI’s next-generation validator platform offering enhanced optics and modular construction. |
| 6 | Model Family | T6 Series — direct replacement for the AE26xx validator family. |
| 3 | Bezel Type | High-Visibility Compact D-Bezel |
| 1 | Power Configuration | 110 V AC input for non-MDB amusement and vending systems. |
| D | Stacker Orientation | Down-stacker — bills stack vertically down into the cassette. |
| 5 | Stacker Capacity | 500-note stacker box (standard capacity for compact MDB validators). |
| EUS | Build Code | U.S. standard E-series mainboard build with Talos firmware for AC operation. |
Summary:
The MEI Talos T631-D5EUS replaces the AE2631-D5EUS, offering a compact high-visibility D-Bezel, down-stacker design, and 110 V AC power input. It provides fast, secure note validation and smooth retrofit capability for legacy vending and amusement systems
Denominations Accepted
This unit is a market code 6 (Amusement) configuration and accepts U.S. $1, $5, $10 and $20 notes. It does not accept $50 or $100 notes — if you need $50 and $100 acceptance, choose a T8-series model.
BillAcceptors.us is an authorized Crane MEI distributor with over 30 years of experience, offering the best prices and repair support.
Technical Specifications
| Brand | Crane MEI |
| Voltage | 110v |
| Supported Protocols | Pulse, Serial |
| Stacker Capacity | 500 Bills |
| Bezel Type | MEI VFM Downstacker "3" |
| Denomination Acceptance | $1-$20 |
| Condition | New |
