Description
Overview

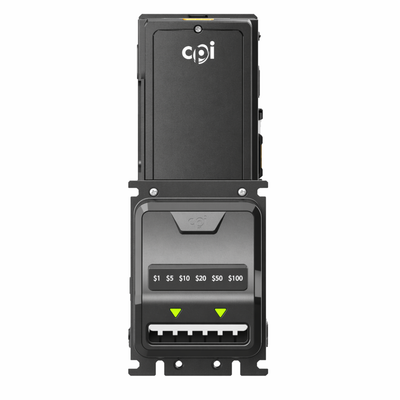

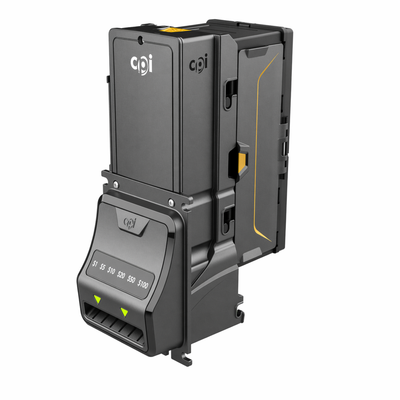

The MEI Talos T6T2-U5EUS is a U.S.-currency MDB bill validator, equipped with a 12-pulse (parallel) interface harness, from the Crane MEI Talos T6 Series, replacing the legacy AE2612-U5EUS. It features the T-Bezel (Talos Low-Entry) for machines with reduced door clearance and delivers faster note acceptance, enhanced counterfeit protection, and simplified servicing through Crane’s modular Talos platform.
Key Features
- Accepts U.S. $1–$20 bills with 4-way optical validation
- MDB communication protocol (24 V DC / 34 V DC)
- Replaces legacy AE2612-U5EUS
- T-Bezel (Talos Low-Entry) for compact vending and kiosk doors
- Up-Stacker with 500-note cassette
- Advanced anti-counterfeit & anti-stringing protection
- Upgradeable firmware via USB or handheld programmer
- Quick-release stacker for tool-free maintenance
Technical Specifications
| Currency | U.S. Dollar (USD) |
|---|---|
| Interface | MDB Protocol |
| Bezel Type | T-Bezel (Talos Low-Entry) |
| Stacker Orientation | Upward (Up-Stacker) |
| Operating Voltage | 24 V DC / 34 V DC |
| Stacker Capacity | 500 notes (interchangeable cassette) |
| Bill Insertion | 4-way acceptance (any orientation) |
| Operating Temperature | 0 °C – 50 °C (32 °F – 122 °F) |
Model Breakdown
| Code | Meaning | Description |
|---|---|---|
| T | Series | Talos Series — Crane MEI’s next-generation validator platform with modular service design. |
| 6 | Model Family | T6 Series — replacement for AE26xx validators. |
| T | Bezel Type | Talos Low-Entry T-Bezel for compact machines and flush mounts. |
| 2 | Power Configuration | 24 V DC / 34 V DC MDB operation. |
| U5 | Stacker / Capacity | Up-Stacker with 500-note cassette capacity. |
| EUS | Build Code | U.S. standard MDB build (E-series mainboard) with a 12-pulse (parallel) interface harness. |
Summary:
The MEI Talos T6T2-U5EUS replaces the AE2612-U5EUS, featuring a Talos Low-Entry T-Bezel, Up-Stacker design, 24 V DC MDB, and 500-note cassette.
BillAcceptors.us is an authorized Crane MEI distributor with over 30 years of experience, offering the best prices and repair support.
Technical Specifications
| Brand | Crane MEI |
| Voltage | 34v |
| Supported Protocols | MDB |
| Stacker Capacity | 500 Bills |
| Bezel Type | MEI Upstacker Low-Entry "T" |
| Denomination Acceptance | $1-$20 |
| Condition | New |
