Description
The WEL-RM018 is a 117V AC extension wire harness designed for 5V Enable applications and is specifically identified as an extension wire for WEL-RM047. This harness is built to provide the proper power and signal extension needed for compatible bill acceptor and machine interface installations.

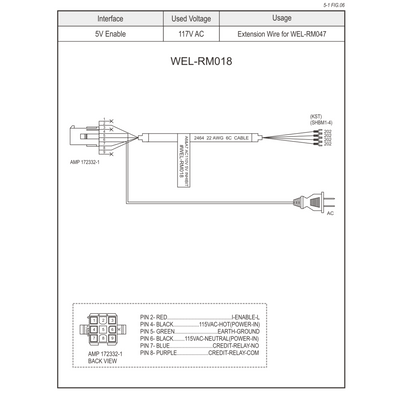

Based on the wiring diagram, the WEL-RM018 uses an AMP 172332-1 connector and includes an AC power input lead along with signal connections for I-Enable-L, earth ground, 115VAC power input, and credit relay functions. It is ideal as a replacement or service extension harness where the correct connector style and pinout are required.
Key Features
- Part Number: WEL-RM018
- Connector: AMP 172332-1
- Operating Voltage: 117V AC
- Interface Type: 5V Enable
- Usage: Extension Wire for WEL-RM047
- Functions Supported: AC power input, ground, enable signal, and credit relay connections
- Application: Extension harness for compatible AC-powered bill acceptor systems
Pin Functions
This harness wiring includes connections for the following signal and power assignments:
- I-Enable-L
- 115VAC Hot (Power-In)
- 115VAC Neutral (Power-In)
- Earth Ground
- Credit Relay N.O.
- Credit Relay COM
Please verify your machine’s connector type, interface type, voltage requirements, and pinout before ordering to ensure compatibility.
Technical Specifications
| Brand | ICT |
| Voltage | 110v |
| Condition | New |
