Description

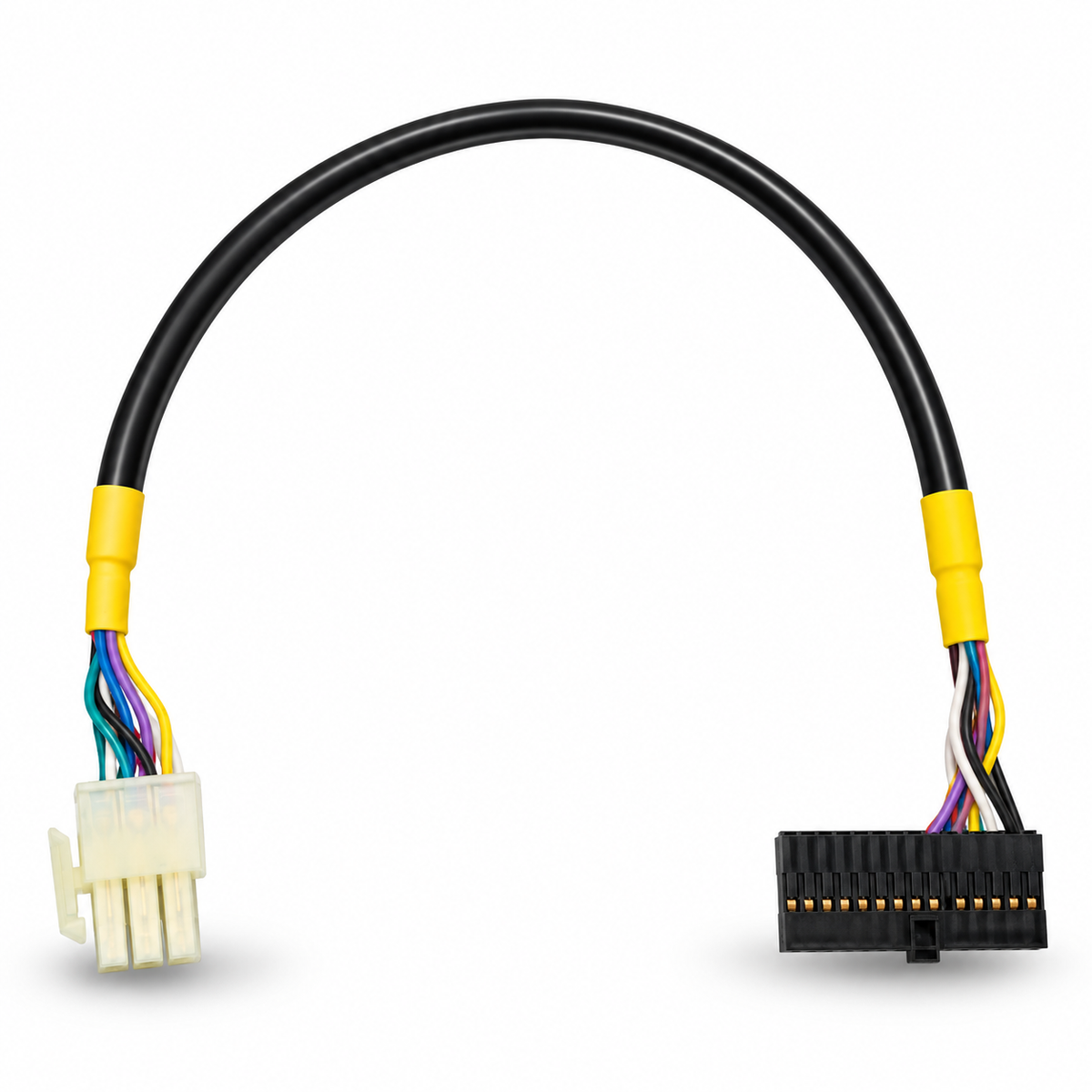

The WEL-RM045 is a 117V AC wiring harness cable designed to connect an AMP 172340-1 plug to a BLK-15*2(KEY) connector. Based on the wiring diagram, this harness supports STD Pulse operation for power and data communication, and ICT Protocol (RS232) for power.
This harness is configured for applications requiring 115VAC hot, 115VAC neutral, neutral enable, neutral inhibit, hot enable, and credit relay connections. It is a suitable replacement or service harness for compatible bill acceptor and machine interface setups using AC power.
Key Features
- Part Number: WEL-RM045
- Connector 1: AMP 172340-1
- Connector 2: BLK-15*2(KEY)
- Operating Voltage: 117V AC
- Interface Support: STD Pulse and ICT Protocol (RS232)
- Functions Supported: Power, data communication, enable, inhibit, and credit relay connections
- Application: Replacement wiring harness for compatible AC-powered bill acceptor setups
Pin Functions

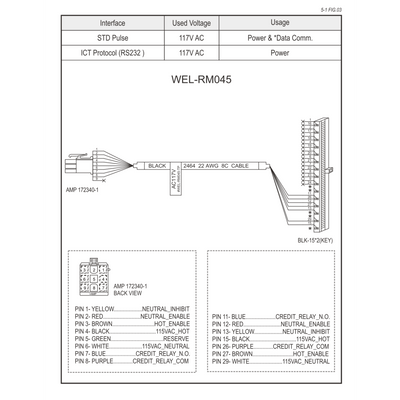

This harness wiring includes connections for the following signal and power assignments:
- 115VAC Hot
- 115VAC Neutral
- Neutral Enable
- Neutral Inhibit
- Hot Enable
- Credit Relay N.O.
- Credit Relay COM
Please verify your machine’s connector type, voltage requirements, and pinout before ordering to ensure compatibility.
