L70 Series

The ICT L70 is the compact 12V validator ICT built for tight cabinets — amusement machines, small kiosks, jukeboxes, pool tables, car wash bays, and retrofit installs where a full upstack unit will not fit. Despite the small footprint, the L70 supports the full range of interfaces operators need, which is why it shows up in so many different machine types.

Configuration matters more on the L70 than on most ICT units because of the two bill path widths. Units come in 67mm and 71mm paths, and the calibration card must match — we stock both the 67mm and 70mm cards. Stacker options are stackerless, 200 note, and 500 note. Interfaces include pulse, RS232, ID003 for IGT equipment, ICT104U, ICT104, and MDB. Variants we carry include the L70T, L70X, L70S, L704, and L709.

Currency support is broad: US dollar plus Mexican peso, Honduran lempira, Nicaraguan córdoba, Colombian peso, Costa Rican colón, Dominican peso, and Trinidad and Tobago dollar builds. This page also covers L70 calibration cards and the AZB-23 and AZB-2B anti-zapper boards for L70 interfaces.

Common questions about the ICT L70

• 67mm or 71mm? Measure the bill path opening on your existing unit, or send us the full part number. Ordering the wrong width means the notes will not track.
• Which calibration card? The 67mm card for 67mm paths, the 70mm card for 71mm paths.
• Does the L70 work with IGT machines? Yes — order the ID003 interface build.
• Can I run the L70 without a stacker? Yes, stackerless builds are available for drop-box and cashbox-in-cabinet installs.

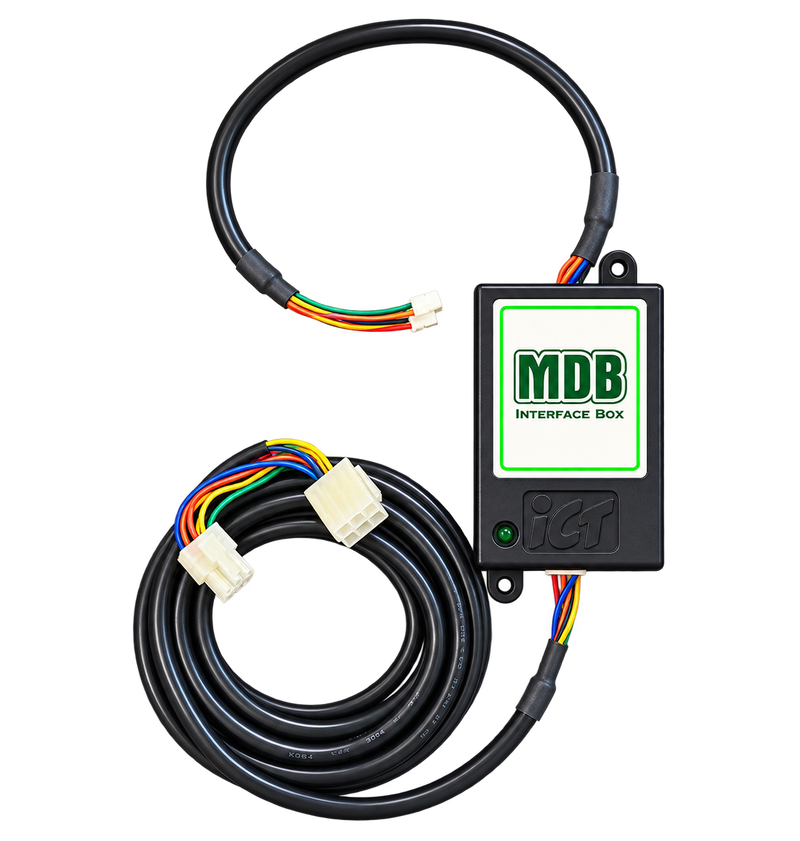

• Need MDB? MDB builds are available. Confirm your machine's voltage requirement first.
