Description

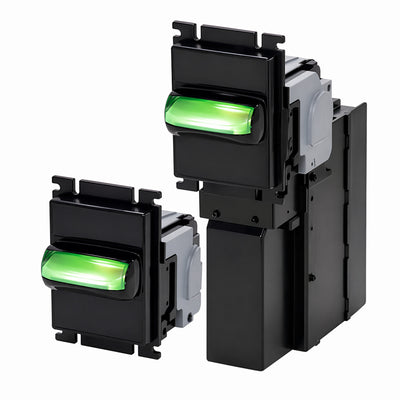

The ICT L709CO601iDS Bill Validator (L Series) is designed for reliable and efficient bill validation in vending, gaming, and amusement systems.
According to the L Series installation guide , the validator features a new generation verification system, auto-calibration, and fast bill processing, helping improve acceptance accuracy and reduce bill jams.
This model operates on 12V DC power and supports RS232 A0 interface, allowing stable communication with compatible systems.
It features a stackerless configuration, meaning it is designed to work with external cash handling systems instead of an internal cashbox. The validator supports 71mm bill width (O Type bezel), making it suitable for handling a wide range of banknotes.
Key Features
- New generation verification system
- Supports RS232 A0 interface
- Stackerless design (external cashbox required)
- Supports 71mm bill width (O Type bezel)
- Four-way bill insertion
- Auto-calibration
- Anti-string (anti-fishing) technology
- Fast firmware upgrade support
- Power Supply: 12V DC (10.8V–16V DC)
- Stackerless (no internal cashbox)
- Bezel Type: 71mm (O Type Bezel)
- Bill Insertion: Four-way
- Acceptance Rate: 96% or higher
- Transaction Time: Approx. 3 seconds to stack
- Operating Temperature: 0°C to 50°C
- Humidity: 30%–85% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 12v |
| Supported Protocols | Pulse |
| Bezel Type | Standard |
| Denomination Acceptance | COP: 1000, 2000, 5000, 10000, 20000, 50000, 100000 |
| Condition | New |
