Description

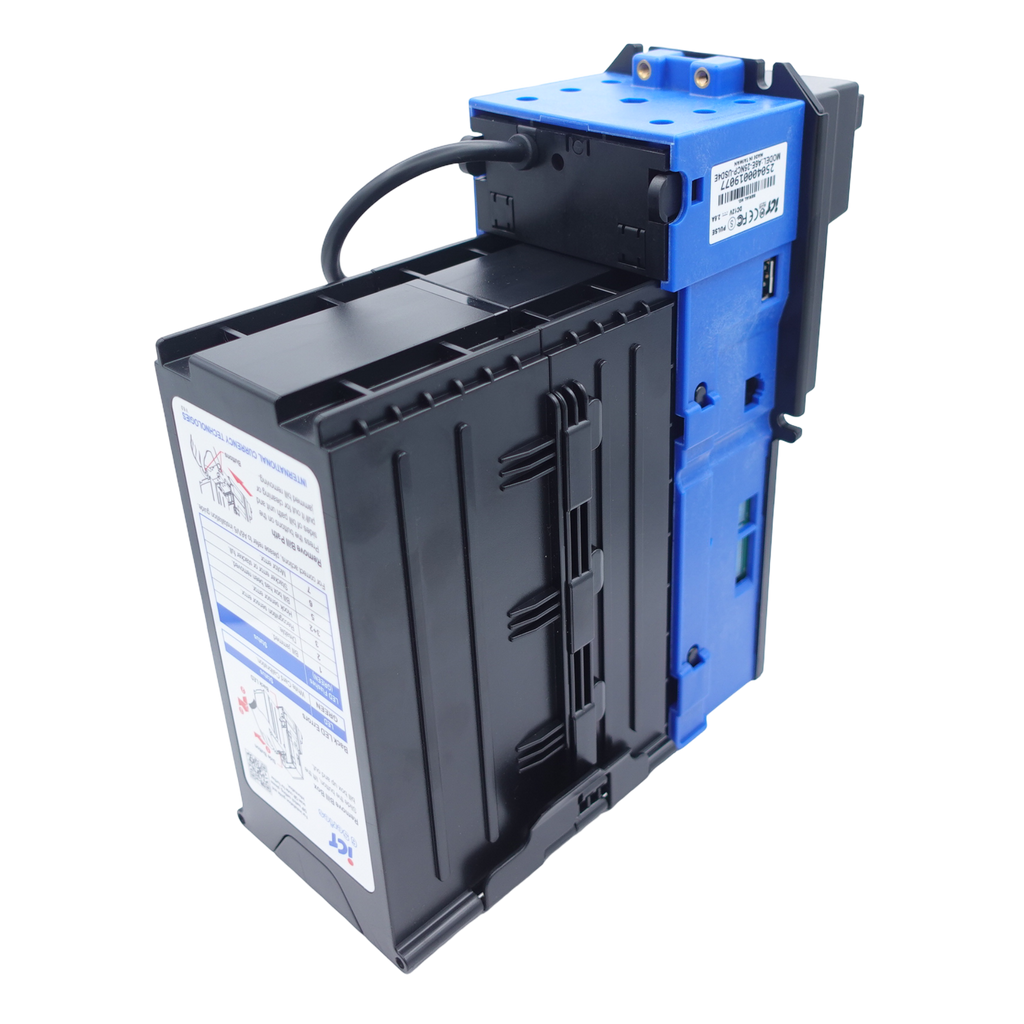

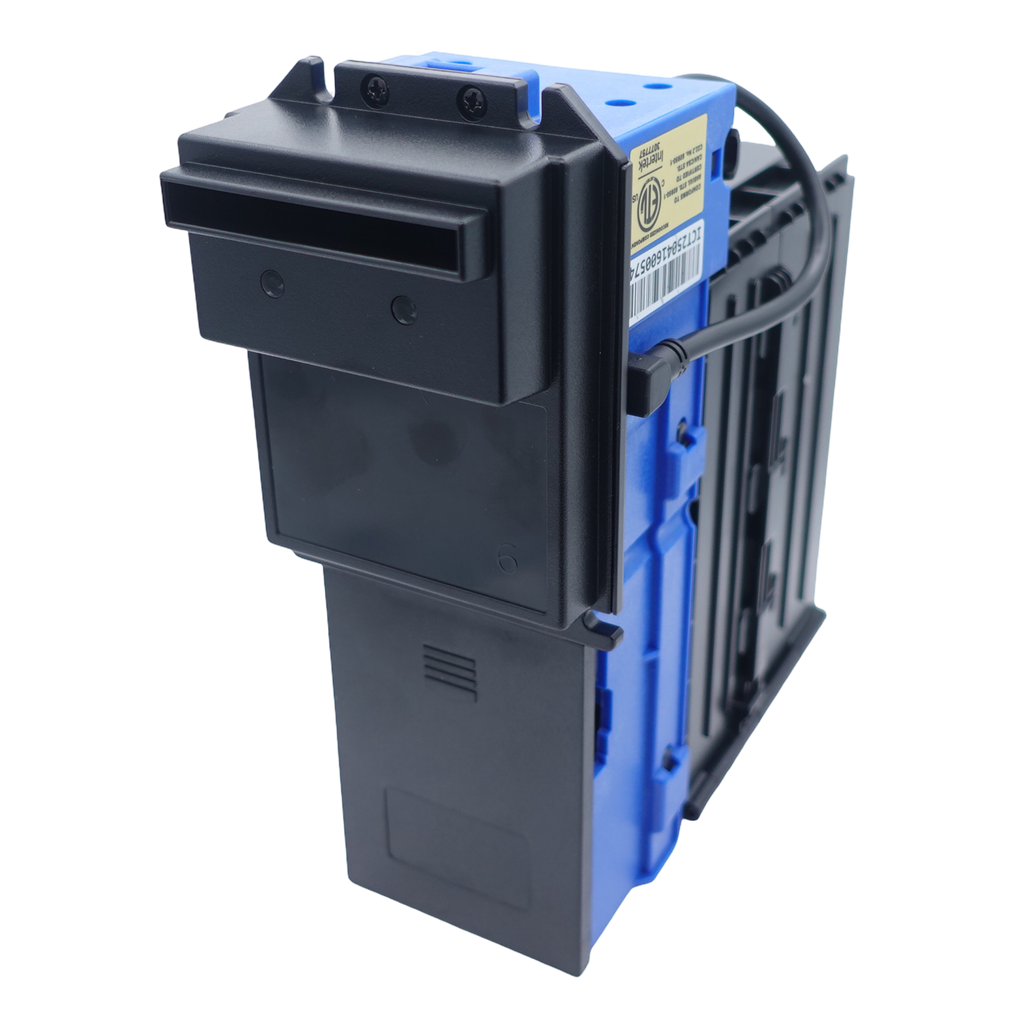

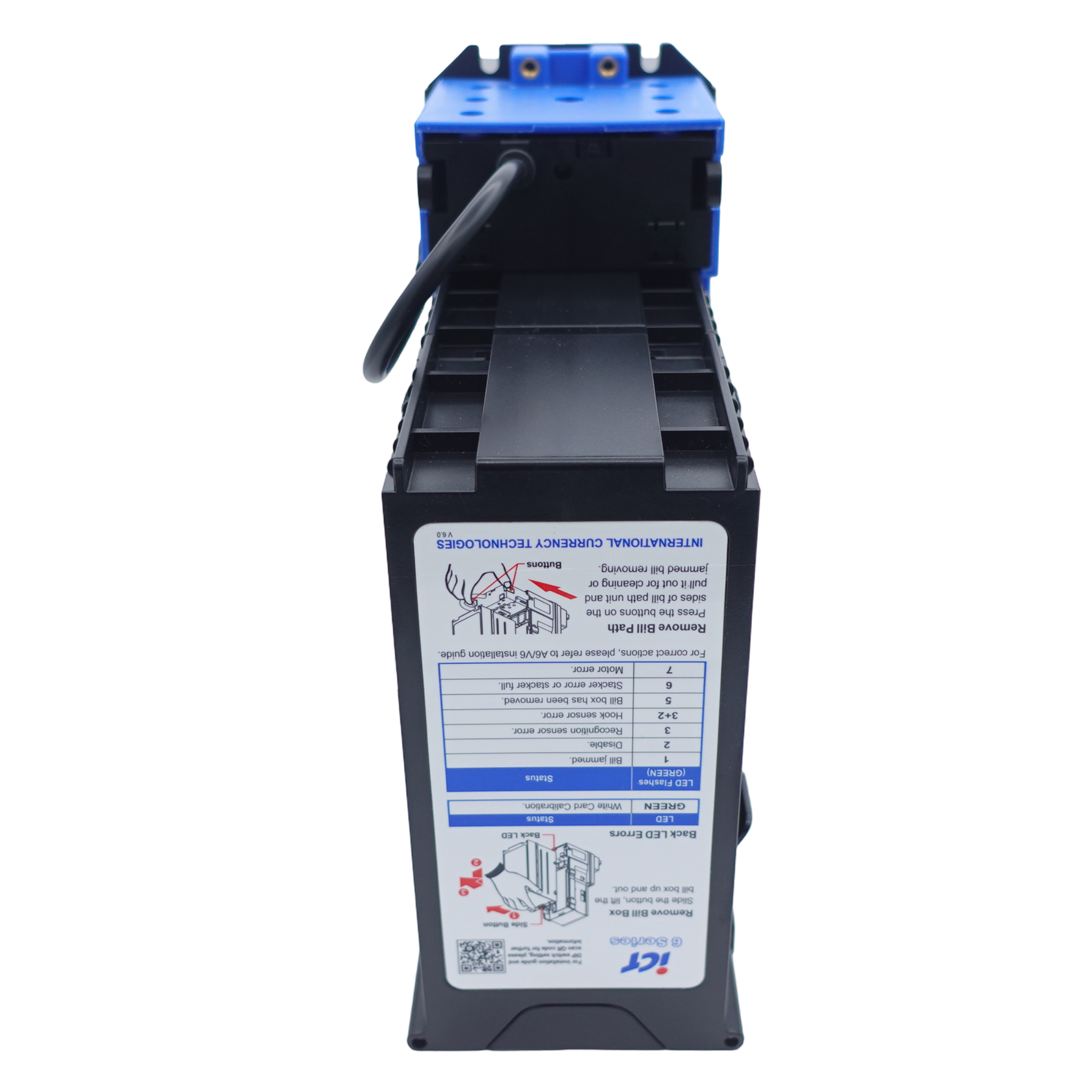

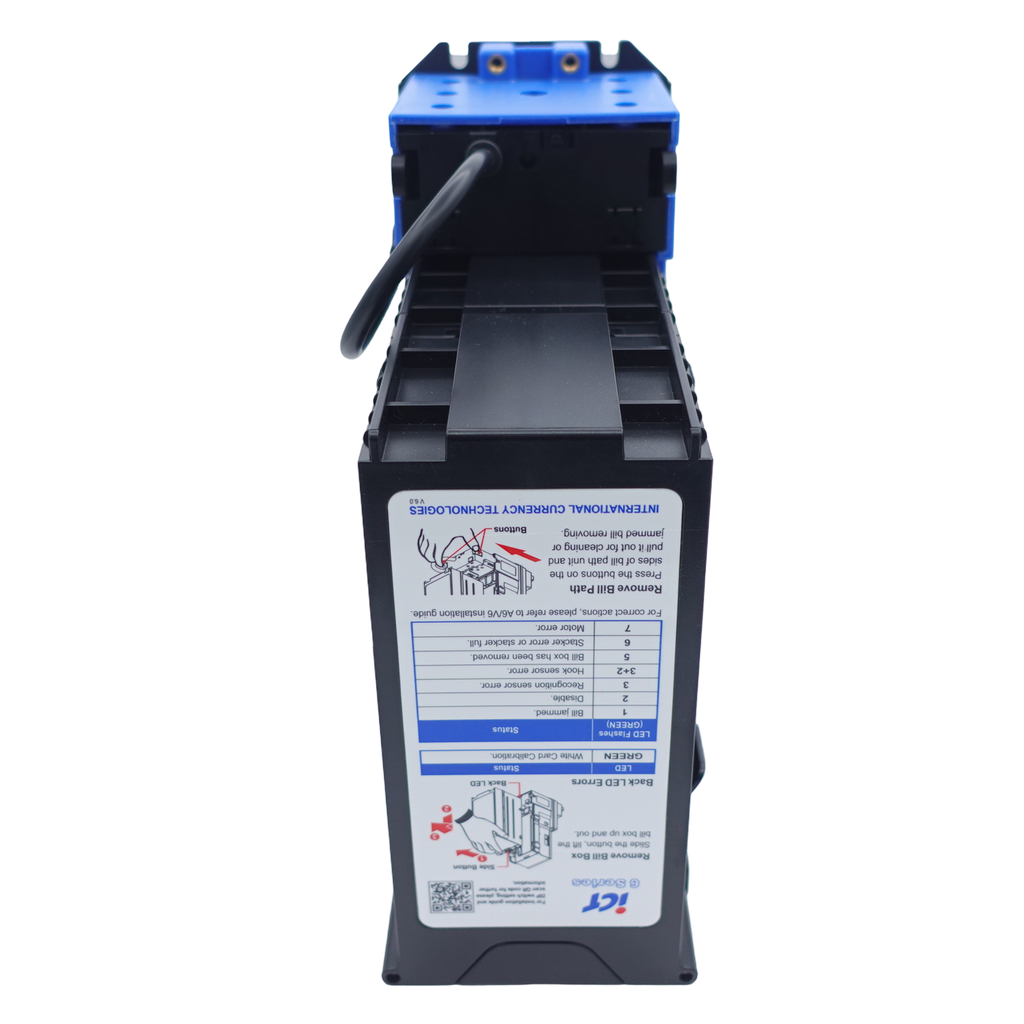

The ICT A6E-18F0P-USD4 Bill Validator (A6E Series) is designed for secure and efficient banknote validation in vending and automated payment systems.
This model operates on 110V AC power and supports the Pulse (STD Pulse) interface, ensuring compatibility with a wide range of machines.
It features an 800-note stacker capacity and comes with a fitted bezel, allowing smooth and reliable bill insertion. This version is supplied without a mounting kit, providing flexibility for custom installation setups.
High acceptance accuracy (96% or higher), fast processing (~3 seconds), and reliable performance.
Key Features
- Fitted bezel configuration
- No mounting kit included
- Four-way bill insertion
- Auto-calibration
- Easy installation and maintenance
- Interface / Protocol: Pulse (STD Pulse)
- Power Supply: 110V AC
- Stacker Capacity: 800 notes
- Bill Insertion: Four-way
- Acceptance Rate: 96% or higher
- Transaction Time: Approx. 3 seconds
- Bill Width Accepted: 60–67 mm
- Operating Temperature: 0°C to 55°C
- Humidity: 30%–85% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 110v |
| Supported Protocols | Pulse |
| Stacker Capacity | 800 Bills |
| Bezel Type | Fitted |
| Denomination Acceptance | $1-$20 |
| Condition | New |
