Description

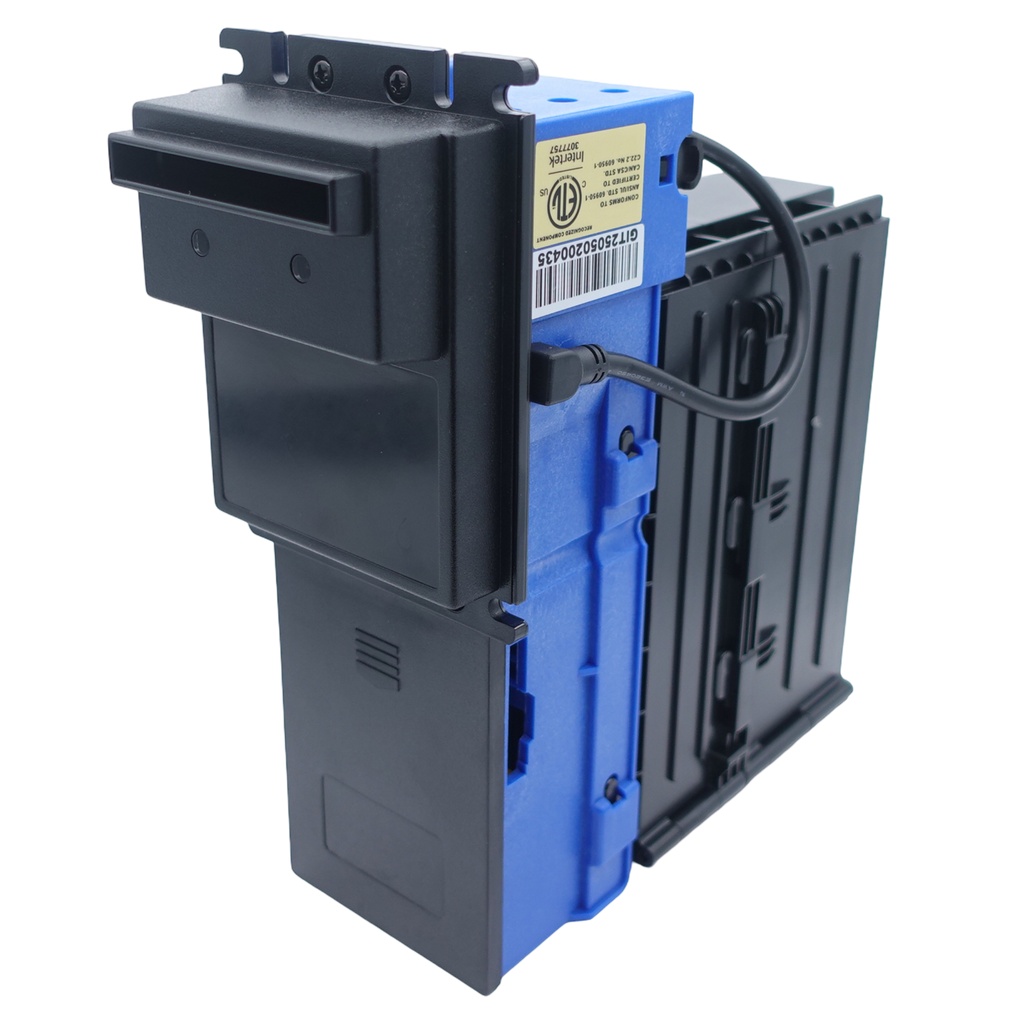

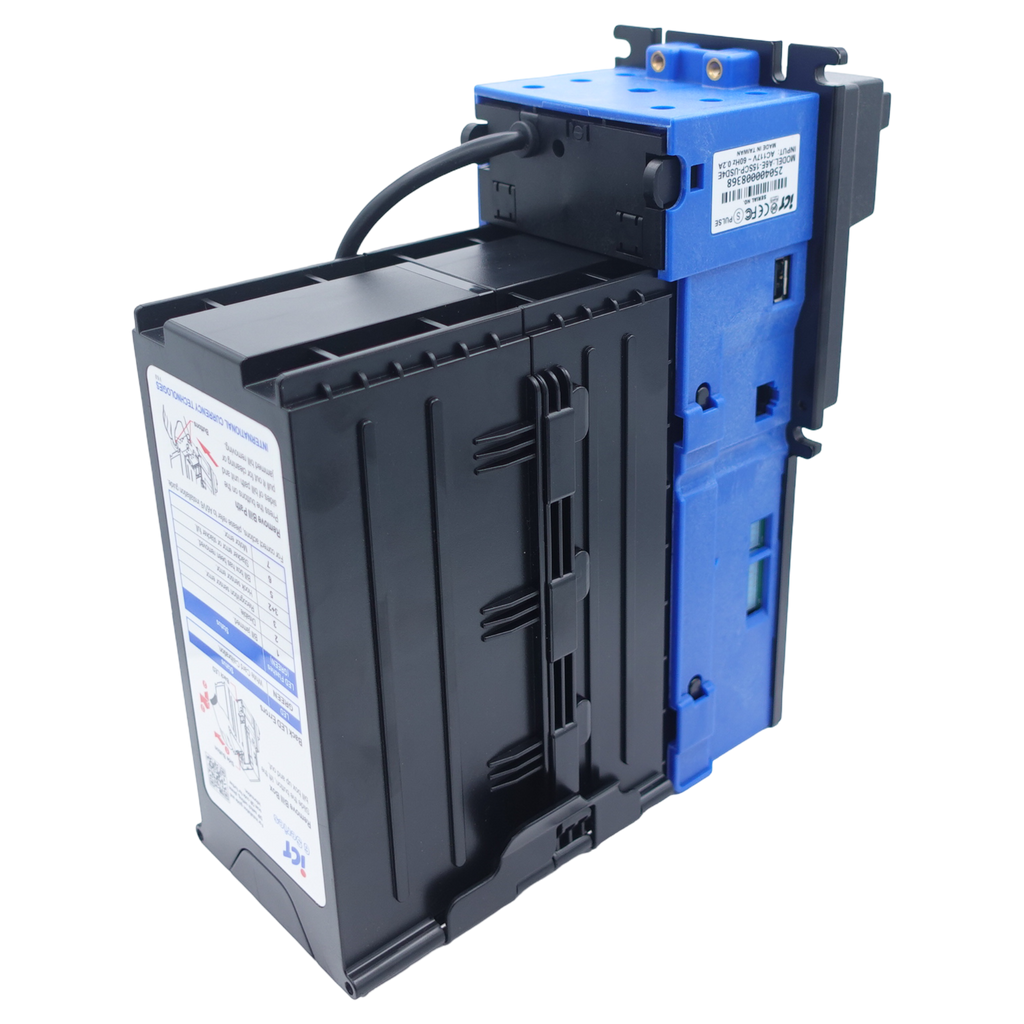

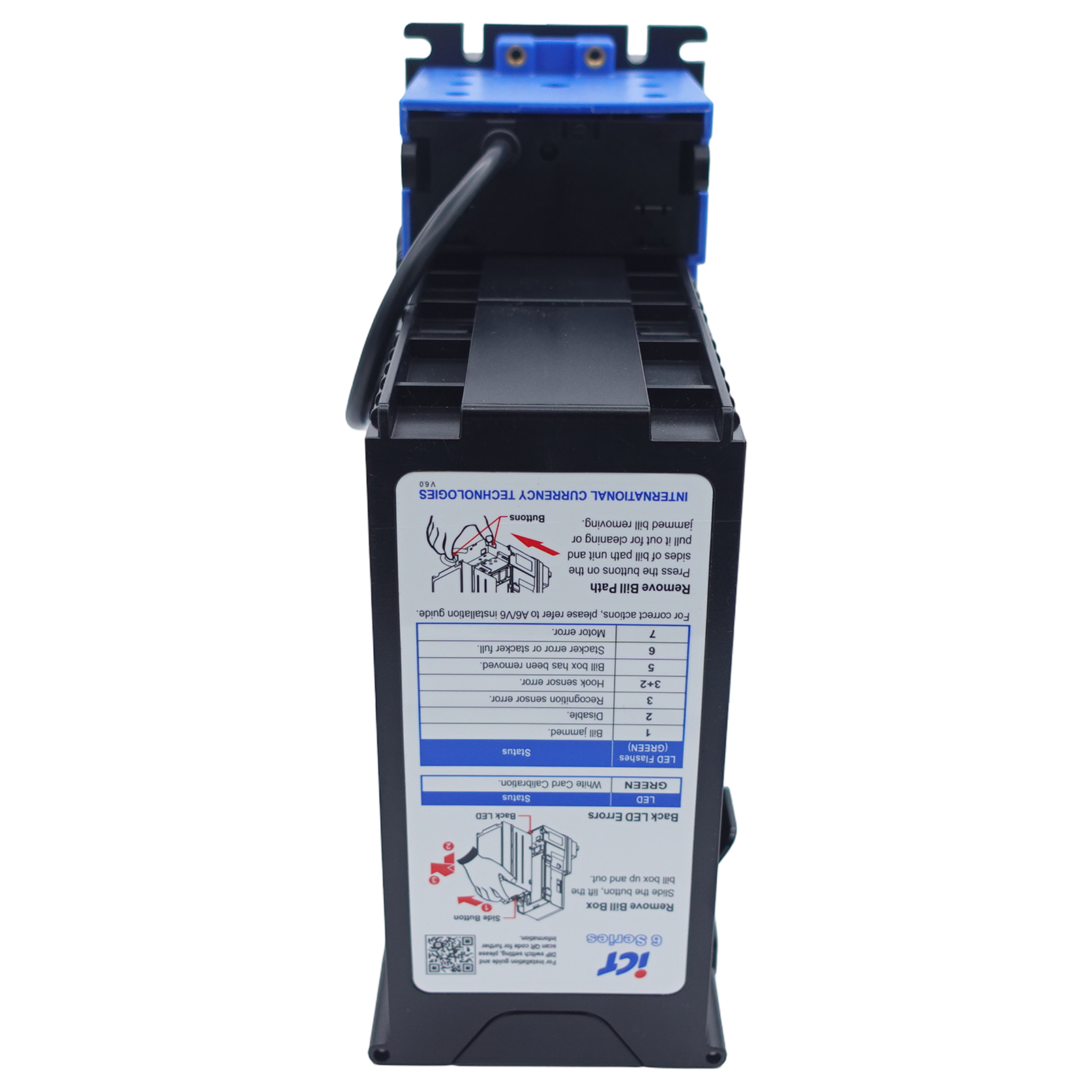

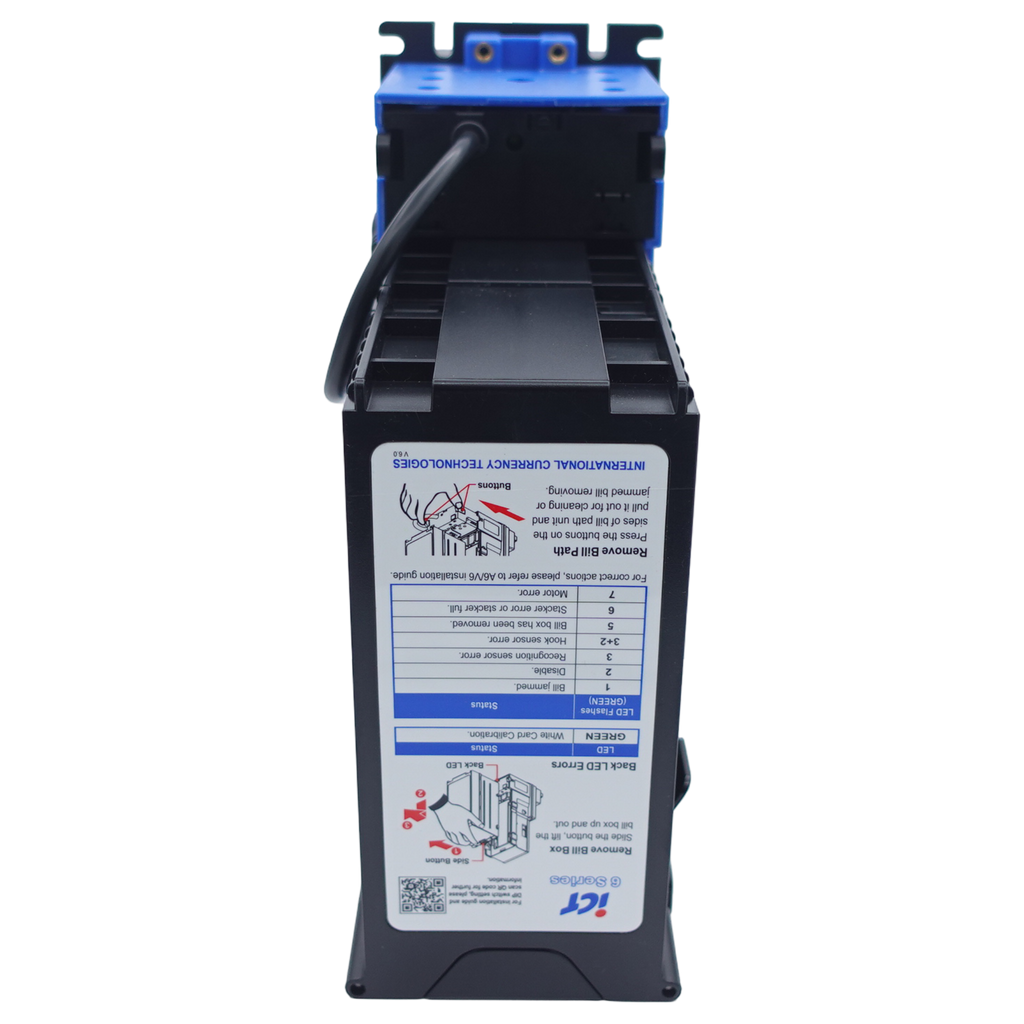

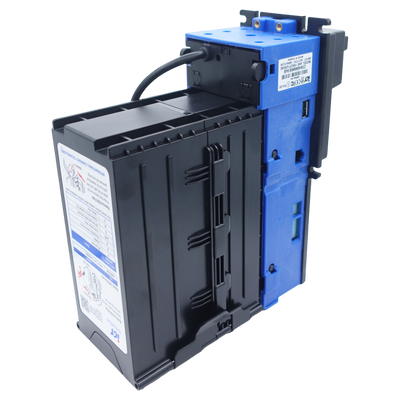

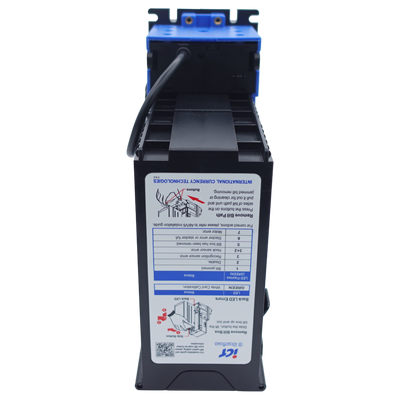

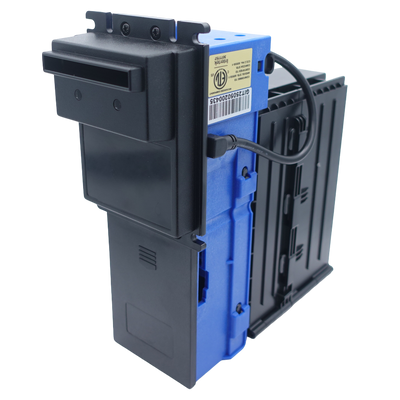

The ICT A6E-28S0P-USD4-IP Bill Validator (A6E Series) is designed for secure and efficient banknote validation in vending and automated payment systems.
This model operates on 12V DC power and supports the Pulse interface, ensuring compatibility with a wide range of machines.
It features an 800-note stacker capacity and comes with a standard bezel, allowing smooth bill insertion and reliable performance. This version is supplied without a mounting kit, offering flexibility for custom installations.
This unit includes a custom configuration (Innovative Packaging – SW3-3 ON).
High acceptance accuracy (96% or higher), fast transaction speed (~3 seconds), and stable operation.
Key Features
- Pulse interface support (STD Pulse)
- Standard bezel design
- No mounting kit included
- Four-way bill insertion
- Auto-calibration system
- Easy installation and maintenance
- Custom configuration (Innovative Packaging SW3-3 ON)
- Series: ICT A6E Series
- Interface / Protocol: Pulse (STD Pulse)
- Power Supply: 12V DC
- Stacker Capacity: 800 notes
- Bill Insertion: Four-way
- Acceptance Rate: 96% or higher
- Transaction Time: Approx. 3 seconds
- Bill Width Accepted: 60–67 mm
- Operating Temperature: 0°C to 55°C
- Humidity: 30%–85% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 12v |
| Supported Protocols | Pulse |
| Stacker Capacity | 800 Bills |
| Bezel Type | Standard |
| Denomination Acceptance | $1-$20 |
| Condition | New |
