Description

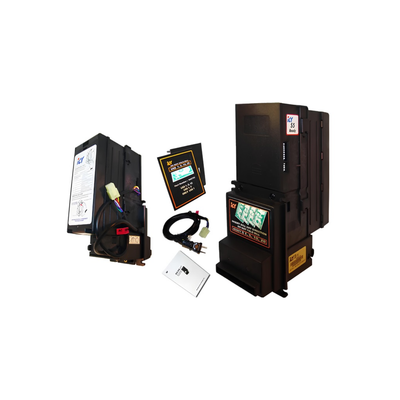

The ICT V6-33F0M-USD4-T# Bill Validator (V6-IV Series) is designed for high-performance bill validation in vending and amusement machines, offering strong security and stable operation.
Operating on 24V DC power, this validator supports the MDB interface, making it compatible with modern vending systems. It delivers a high acceptance rate of up to 96% or greater and processes transactions in approximately 3 seconds per bill, ensuring fast and efficient performance.
This model includes a 300-bill stacker capacity, making it ideal for medium-volume applications. The fitted bezel design provides a clean, secure installation and helps protect against tampering.
Built for indoor environments, the V6-IV validator combines durability, accuracy, and ease of maintenance.
Key Features
- High acceptance rate of 96% or higher
- Fast transaction speed (~3 seconds per bill)
- Supports MDB protocol
- 24V DC operation
- 300-bill stacker capacity
- Fitted bezel design
- Four-way bill insertion
- Auto-calibration for improved accuracy
- Accepts U.S. banknotes: $1, $5, $10, $20
- Power Supply 24V / 34V DC (20V–42.5V DC range
- Transaction Speed Approx. 3 seconds per bill
- Bill Width Accepted 60–67 mm
- Operating Temperature 0°C to 55°C
- Storage Temperature -30°C to 70°C
- Humidity 30%–85% RH (non-condensing)
- Installation Indoor
Technical Specifications
| Brand | ICT |
| Voltage | 34v |
| Supported Protocols | MDB |
| Stacker Capacity | 300 Bills |
| Bezel Type | Fitted |
| Denomination Acceptance | $1-$20 |
| Condition | New |
