Description

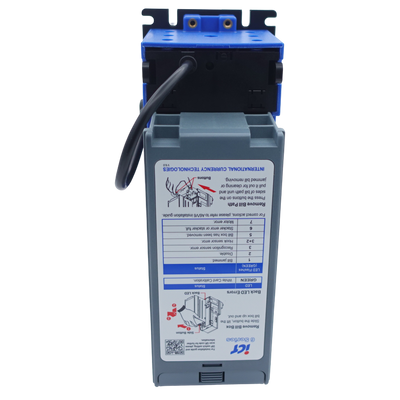

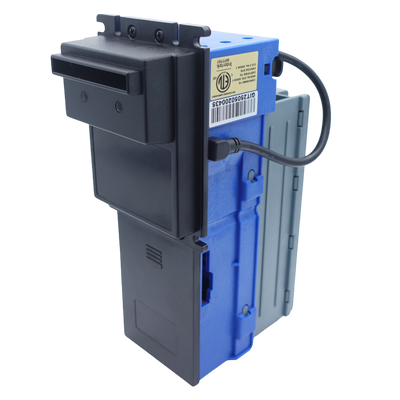

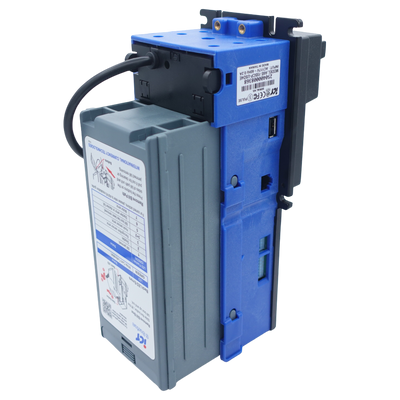

The ICT V6E-33S0M-USD4-II Bill Validator (V6E Series) is designed for secure and efficient banknote validation in vending and automated payment systems.
This model operates on 24V DC power and supports the MDB interface, ensuring compatibility with a wide range of vending machines.
It features a 300-note stacker capacity and comes with a standard bezel, allowing smooth bill insertion and reliable performance. This version is supplied without a mounting kit, offering flexibility for installation.
High acceptance accuracy (96% or higher), fast transaction speed (~3 seconds), and stable operation.
Key Features
- MDB interface support
- Standard bezel design
- No mounting kit included
- Four-way bill insertion
- Auto-calibration system
- Easy installation and maintenance
- Series: ICT V6E Series
- Power Supply: 24V DC
- Stacker Capacity: 300 notes
- Bill Insertion: Four-way
- Acceptance Rate: 96% or higher
- Transaction Time: Approx. 3 seconds
- Bill Width Accepted: 60–67 mm
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -30°C to 70°C
- Humidity: 30%–85% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 24v |
| Supported Protocols | MDB |
| Stacker Capacity | 300 Bills |
| Bezel Type | Standard |
| Denomination Acceptance | $1-$20 |
| Condition | New |
