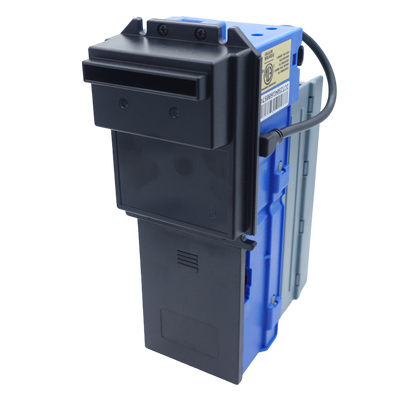

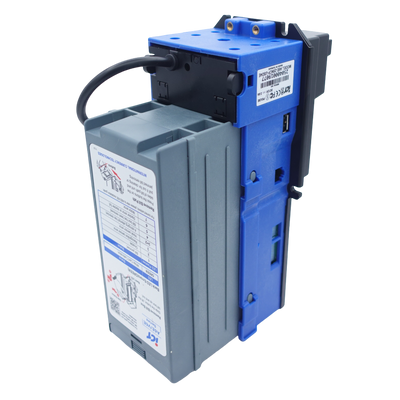

ICT V6E-36F0M-USD4-T# Bill Validator 24V MDB 600 Bill Stacker Fitted Bezel

The ICT V6E-36F0M-USD4-T# Bill Validator (V6E Series) is engineered for high-performance bill validation in vending and amusement machines, offering reliable operation and enhanced security.

Operating on 24V DC power, this validator supports the MDB interface, ensuring compatibility with modern vending systems. It delivers a high acceptance rate of 96% or greater and processes transactions in approximately 3 seconds per bill, ensuring fast and efficient performance.

This model includes a 600-bill stacker capacity, making it ideal for high-volume environments. The fitted bezel design ensures secure installation and clean integration into machine panels.

Designed for indoor use, the V6E validator provides durability, accuracy, and easy maintenance for operators.

Key Features

• High acceptance rate of 96% or higher
• Fast transaction speed (~3 seconds per bill)
• 600-bill stacker capacity
• Accepts U.S. banknotes: $1, $5, $10, $20
• Four-way bill insertion
• Auto-calibration for improved accuracy
• Power Supply: 24V / 34V DC (20V–42.5V DC range)
• Bill Width Accepted: 60–67 mm
• Operating Temperature: 0°C to 55°C
• Storage Temperature: -30°C to 70°C
• Humidity: 30%–85% RH (non-condensing)
• Installation: Indoor
