Description

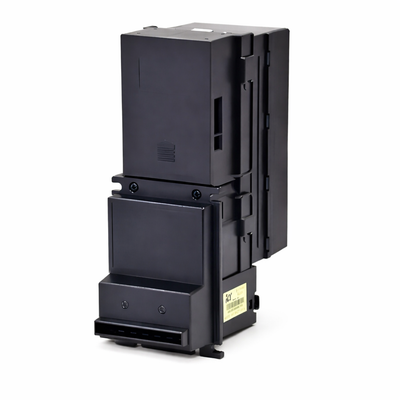

The ICT V7-24S0P-CAD3 Bill Validator (V7 Series) is designed for reliable and accurate bill validation in vending and amusement machines, offering stable performance and flexible integration.
Operating on 12V DC power, this validator supports the pulse interface, making it ideal for machines using standard pulse communication. It delivers a high acceptance rate of 96% or greater and processes transactions in approximately 3 seconds per bill, ensuring efficient and smooth operation.
This model is configured for Canadian Dollar (CAD) currency and supports multiple denominations, making it suitable for regional vending and amusement applications.
Equipped with a 400-bill stacker capacity, it is ideal for medium to high traffic environments. The standard bezel design allows easy installation and compatibility with a wide range of machines.
Designed for indoor use, the V7 validator provides durability, auto-calibration, and dependable long-term performance.
Key Features
- High acceptance rate of 96% or higher
- Fast transaction speed (~3 seconds per bill)
- Accepts Canadian Dollar (CAD): $5, $10, $20
- Four-way bill insertion
- Auto-calibration for improved accuracy
- Multiple interface support across V7 series
- Bill Width Accepted: 62–72 mm
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -30°C to 70°C
- Humidity: 30%–85% RH (non-condensing)
- Installation: Indoor
Technical Specifications
| Brand | ICT |
| Voltage | 12v |
| Supported Protocols | Pulse |
| Stacker Capacity | 400 Bills |
| Bezel Type | Standard |
| Denomination Acceptance | CAD: $5-$20 |
| Condition | New |
