Description

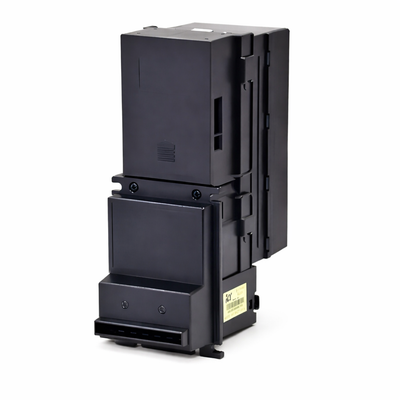

The ICT V7-36S0M-CAD3-T# Bill Validator (V7 Series) is engineered for reliable and high-performance bill validation in vending and amusement machines, delivering stable operation and flexible system integration.
Operating on 24V DC power, this validator supports the MDB interface, making it ideal for modern vending systems. It provides a high acceptance rate of 96% or greater and processes bills in approximately 3 seconds per transaction, ensuring fast and efficient performance.
This model is configured for Canadian Dollar (CAD) currency and supports multiple denominations, making it suitable for regional vending applications.
With a 600-bill stacker capacity, it is designed for high-traffic environments where larger cash storage is required. The standard bezel design ensures easy installation and compatibility with a wide range of machines.
Built for indoor environments, the V7 validator offers durability, auto-calibration, and long-term reliability.
Key Features
- High acceptance rate of 96% or higher
- Fast transaction speed (~3 seconds per bill)
- Standard bezel design
- Accepts Canadian Dollar (CAD): $5, $10, $20
- Four-way bill insertion
- Auto-calibration for improved accuracy
- Multiple interface support across V7 series
- Bill Width Accepted: 62–72 mm
- Operating Temperature: 0°C to 55°C
- Storage Temperature: -30°C to 70°C
- Humidity: 30%–85% RH (non-condensing)
- Installation: Indoor
Technical Specifications
| Brand | ICT |
| Voltage | 24v |
| Supported Protocols | MDB |
| Stacker Capacity | 600 Bills |
| Bezel Type | Standard |
| Denomination Acceptance | CAD: $5-$20 |
| Condition | New |
