Description

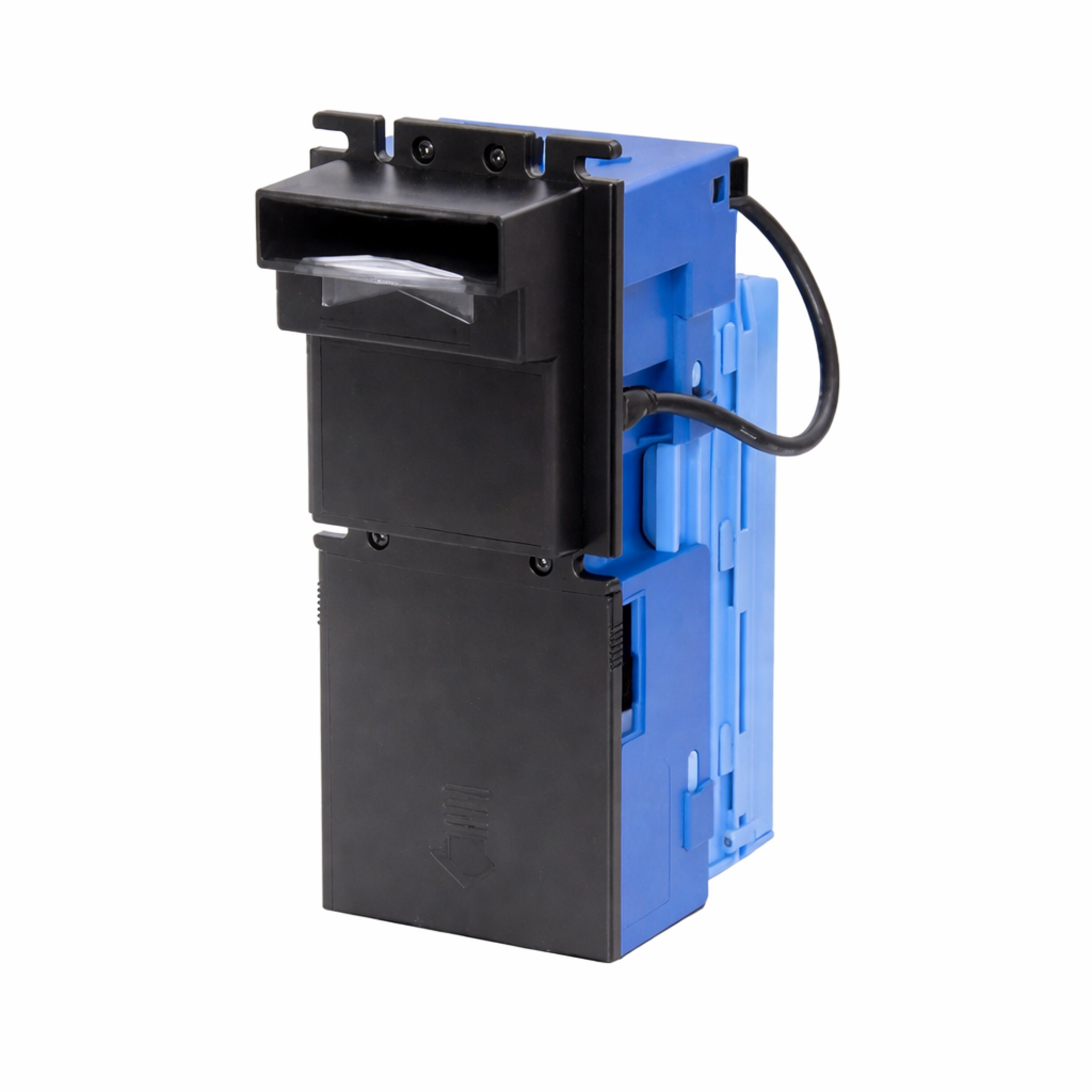

The ICT XBA-14DNPUS6 Bill Validator (XBA Series) is designed for reliable and secure bill validation.
The XBA series supports four-way bill insertion and provides an acceptance rate of 98% or higher, ensuring consistent performance in demanding environments .
This model operates on 12V DC power and supports Pulse interface for system communication .
It features a standard bezel design and includes a 400 note stacker, making it suitable for high-capacity usage.
The validator is configured for U.S. Dollar (USD) and accepts a wide range of denominations.
Key Features
- Acceptance rate of 98% or higher
- Transaction speed approx. 2.5 seconds per bill
- Four-way bill insertion
- Auto-calibration and multi-color optical sensor
- High immunity to strong ambient light
- Advanced optical/mechanical anti-fishing structure
- USB firmware upgrade support
- Bill Insertion: Four-way acceptance
- Bill Width Accepted: 62–77 mm
- Operating Temperature: -20°C to 60°C
- Storage Temperature: -30°C to 70°C
- Humidity: 30%–95% RH (non-condensing)
Technical Specifications
| Brand | ICT |
| Voltage | 12v |
| Supported Protocols | Pulse |
| Stacker Capacity | 400 Bills |
| Bezel Type | Standard |
| Denomination Acceptance | USD: $1, $5, $10, $20, $50, $100 |
| Condition | New |
