Description

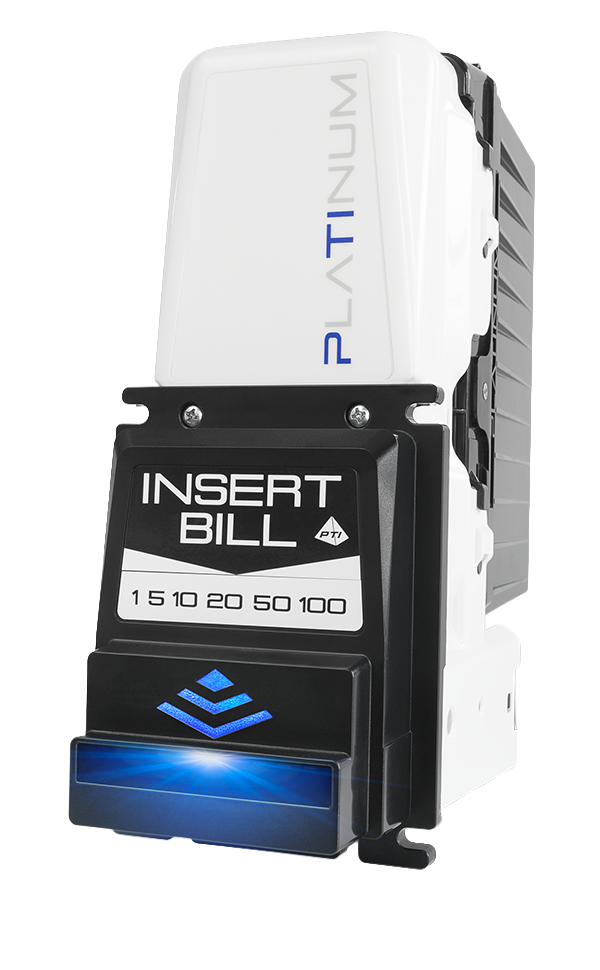

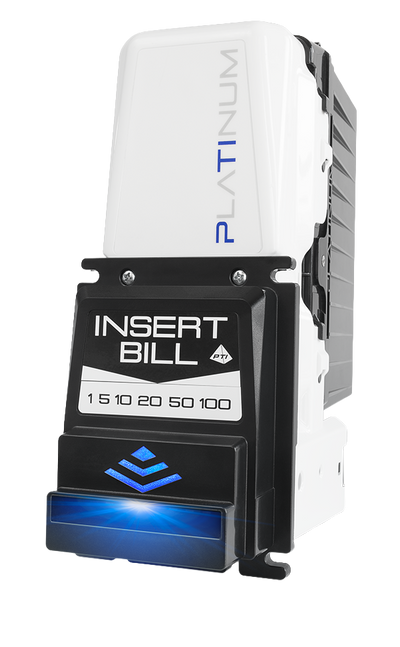

The Pyramid Platinum PT1-LB3-USA is Pyramid Technologies' next-generation bill acceptor, built for 24/7 duty in amusement, skill game, kiosk, gaming, and vending equipment. This version has a built-in 120 VAC power supply, so it can run from line voltage in machines that do not provide 12 VDC. It accepts $1, $5, $10, $20, $50, and $100 bills and stacks them into a lockable 500-note cash box.
Platinum does away with DIP switches and configuration cards. Firmware and settings load from a USB flash drive or a PC, and the unit keeps them even when power is removed. Internal sensors auto-calibrate, so it never needs manual calibration.
Key features
- Accepts $1–$100 US bills, with an acceptance rate above 95% and roughly 27 bills per minute
- Dual-stage optical anti-stringing plus an integrated mechanical anti-stringing lever
- UV (ultraviolet) LED validation for stronger counterfeit detection
- Lockable, removable 500-note cash box (the "L" and "B" in the model number)
- Lighted bezel and lighted bill entry
- Firmware and configuration updates by USB flash drive or PC; no DIP switches
- Removable bill path for easy cleaning, plus push-button/LED and PC-based diagnostics
- Harness pinouts often compatible with other manufacturers' bill acceptors
- 120 VAC power on the 9-pin connector, with a relay credit output; optional wall plug harness P/N 05AA0012 for a standard outlet
- Made in the USA, backed by Pyramid's 2-year parts and labor warranty
Communication
Supports standard pulse, always-enabled pulse, Mars-style 600-baud serial, RS-232 (through the 18-pin harness), and RS-232 over the rear USB Type-B port. The interface is set by the configuration file, either at the factory or through Platinum Tools.
Specifications
| Model | PT1-LB3-USA |
| Series | Pyramid Platinum (PT1) |
| Power | 120 VAC (9-pin power connector) |
| Credit output | Relay contacts (9-pin) or open-collector output (18-pin, 5–12 VDC, 40 mA max) |
| Interfaces | Pulse, Mars 600-baud serial, RS-232, USB (RS-232 over USB) |
| Bills accepted | $1, $5, $10, $20, $50, $100 (USA) |
| Cash box | Lockable, 500 notes |
| Acceptance rate | Greater than 95% |
| Acceptance speed | About 27 bills per minute |
| Operating temperature | 0–60 °C, 90% max non-condensing humidity |
| Net weight | 2.45 lb (1.11 kg) |
| Warranty | 2 years, parts and labor (manufacturer) |
Reading the model number
Platinum part numbers follow the pattern PT1-[cash box type][capacity][power]-[country]. In PT1-LB3-USA: L = locking cash box, B = 500-note capacity, B = 120 VAC power, and USA = US currency.
Setup and support
Because settings come from a configuration file, confirm your machine type when ordering so the unit can be set up for your application. Step-by-step guides: How to update Platinum firmware and How to load a Platinum configuration file. Pyramid's free Platinum Acceptor Tools software and the Platinum Installation & Operation Manual are available from Pyramid.
See the full lineup in our Pyramid Platinum Bill Acceptors collection.
Technical Specifications
| Brand | Pyramid |
| Voltage | 110v |
| Supported Protocols | Pulse, Serial |
| Stacker Capacity | 500 Bills |
| Bezel Type | Standard |
| Denomination Acceptance | $1-$100 |
| Condition | New |
